Connector End Views - Speed Control
Connector End Views - Speed Control
-

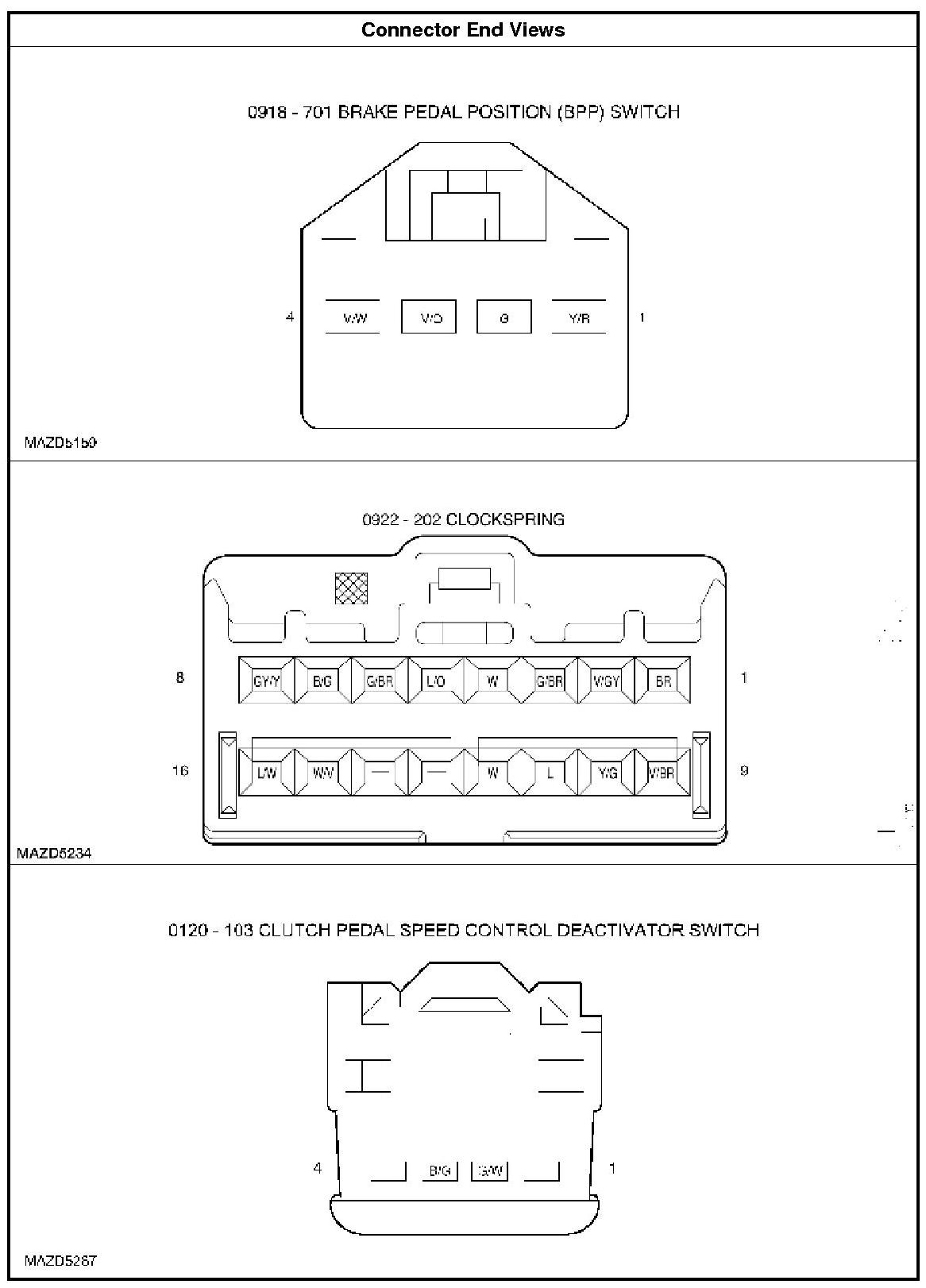

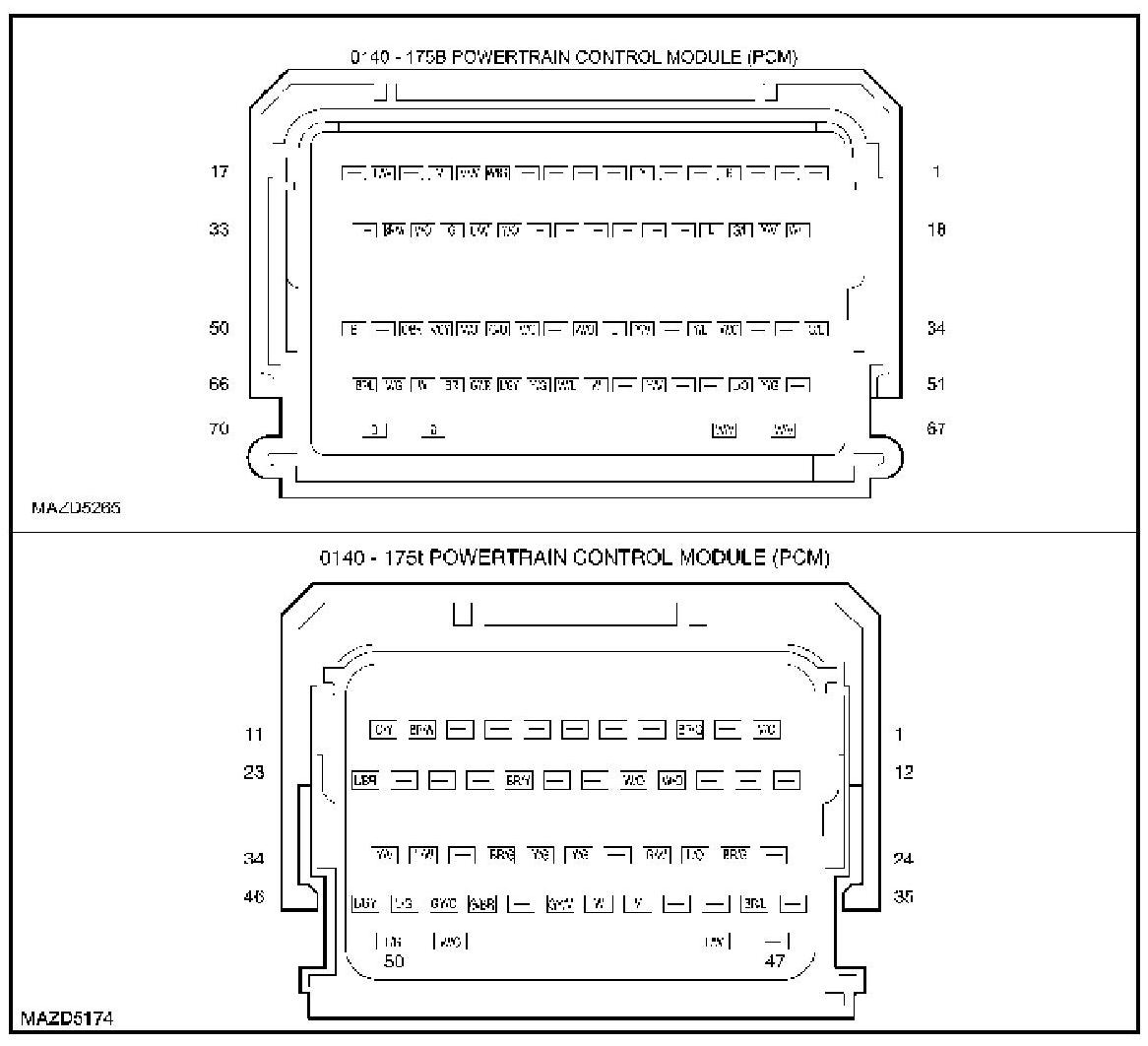

CONNECTOR END VIEWS - SPEED CONTROL
