Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2009
>>
Tribute 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Camshaft Position Sensor 2
Camshaft Position Sensor 2

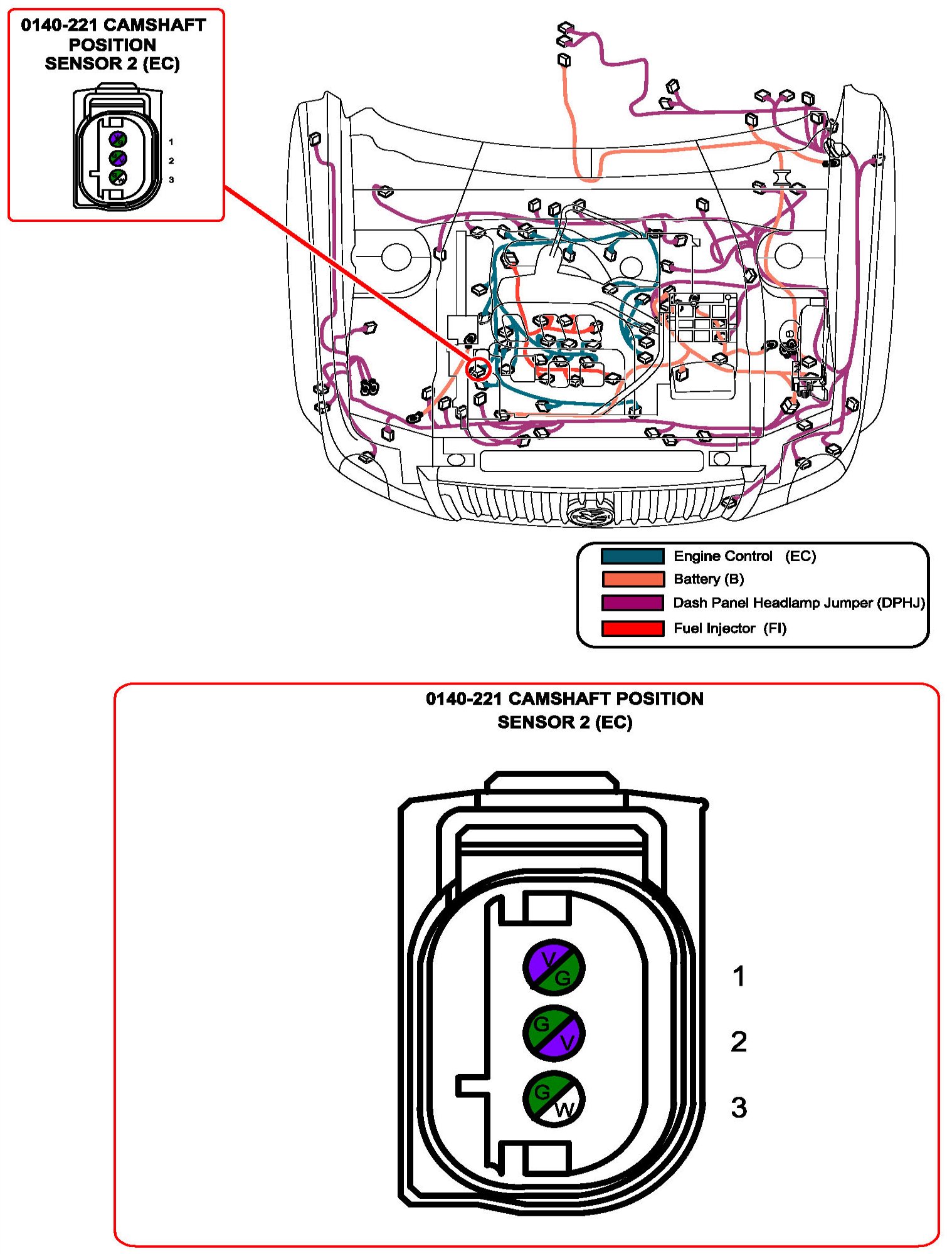

Camshaft Position Sensor 2:
