Home >> Mazda >> 2009 >> Tribute 2WD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Components >> Coil on Plug (COP) 6

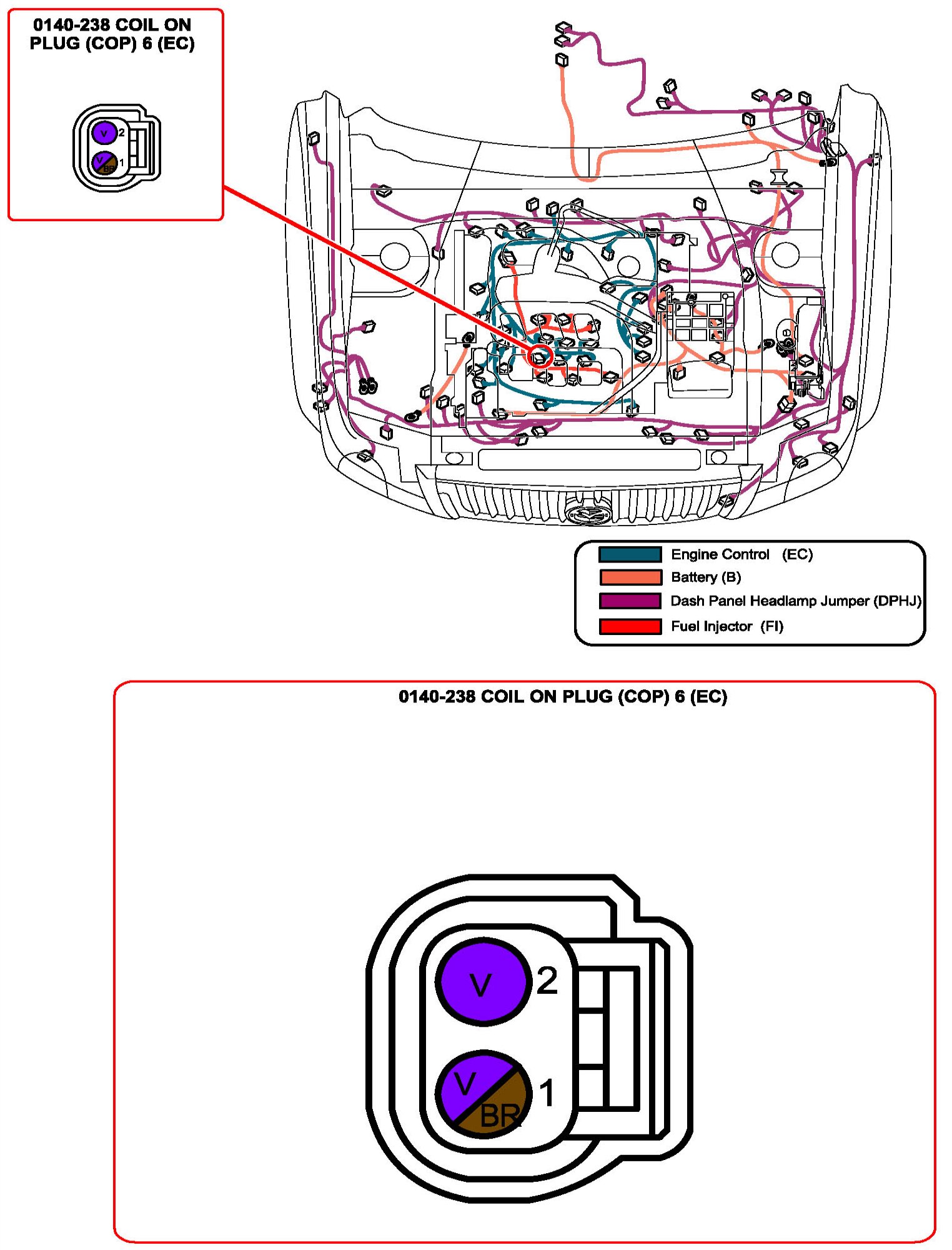

Coil on Plug (COP) 6

Coil On Plug (COP) 6:
