Home
>>
Mazda
>>
2009
>>
Tribute 2WD V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Safety Belt Buckle Switch, Driver
Safety Belt Buckle Switch, Driver

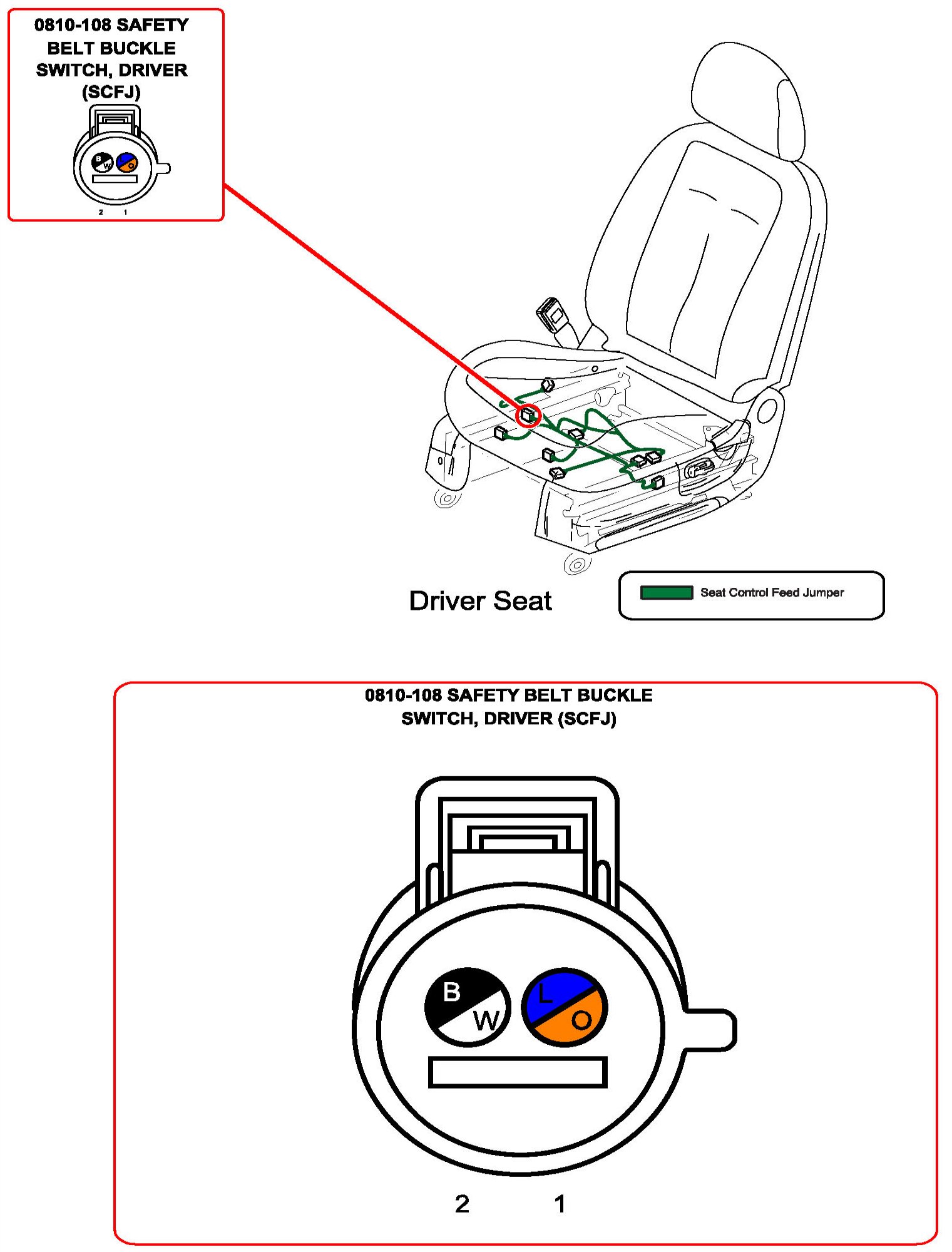

Safety Belt Buckle Switch, Driver:

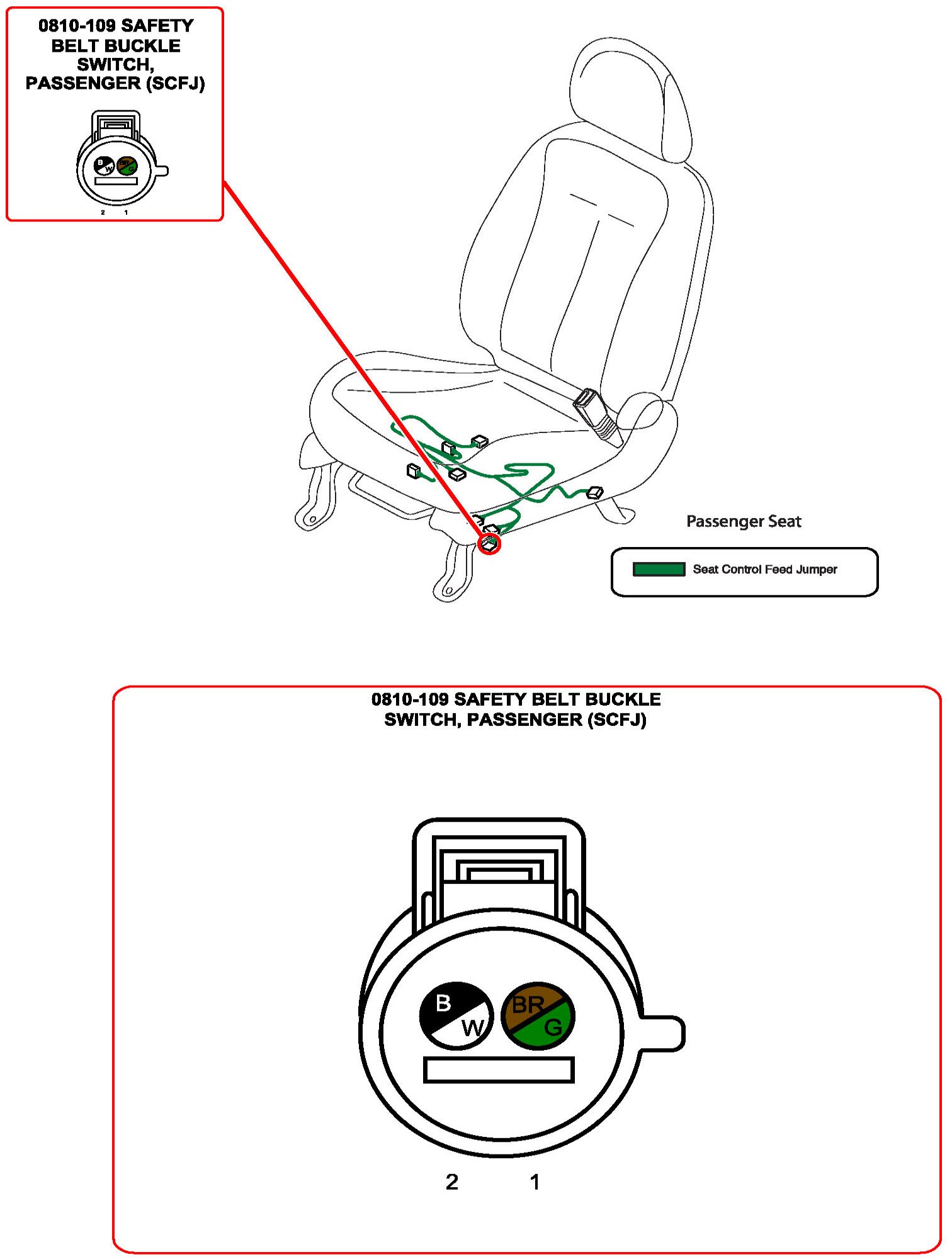

Safety Belt Buckle Switch, Passenger:
