Side Impact Sensor, Driver
Side Impact Sensor, Driver

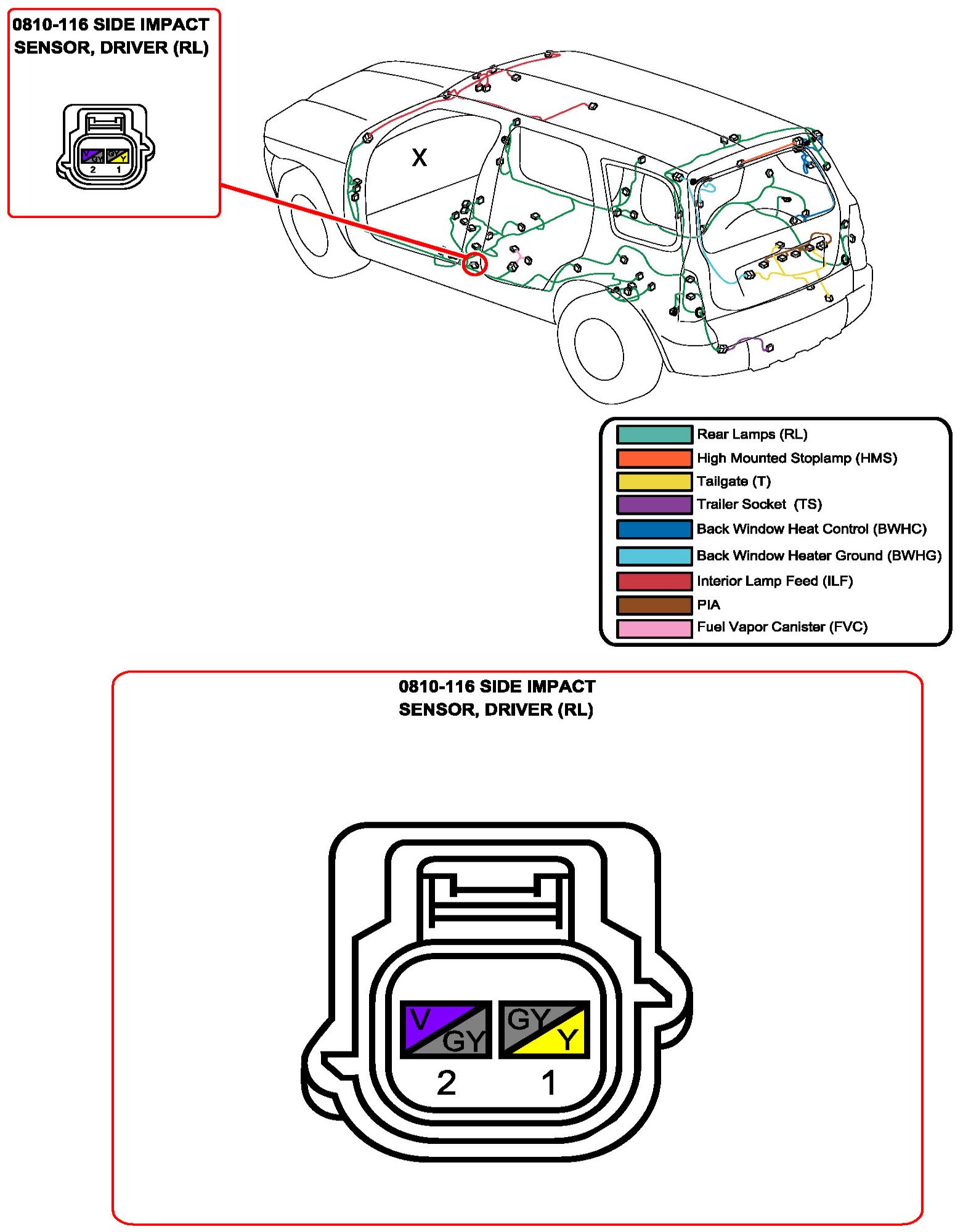

Side Impact Sensor, Driver:
Side Impact Sensor Driver 2:
Side Impact Sensor Passenger 2:
Front Impact Sensor Left:

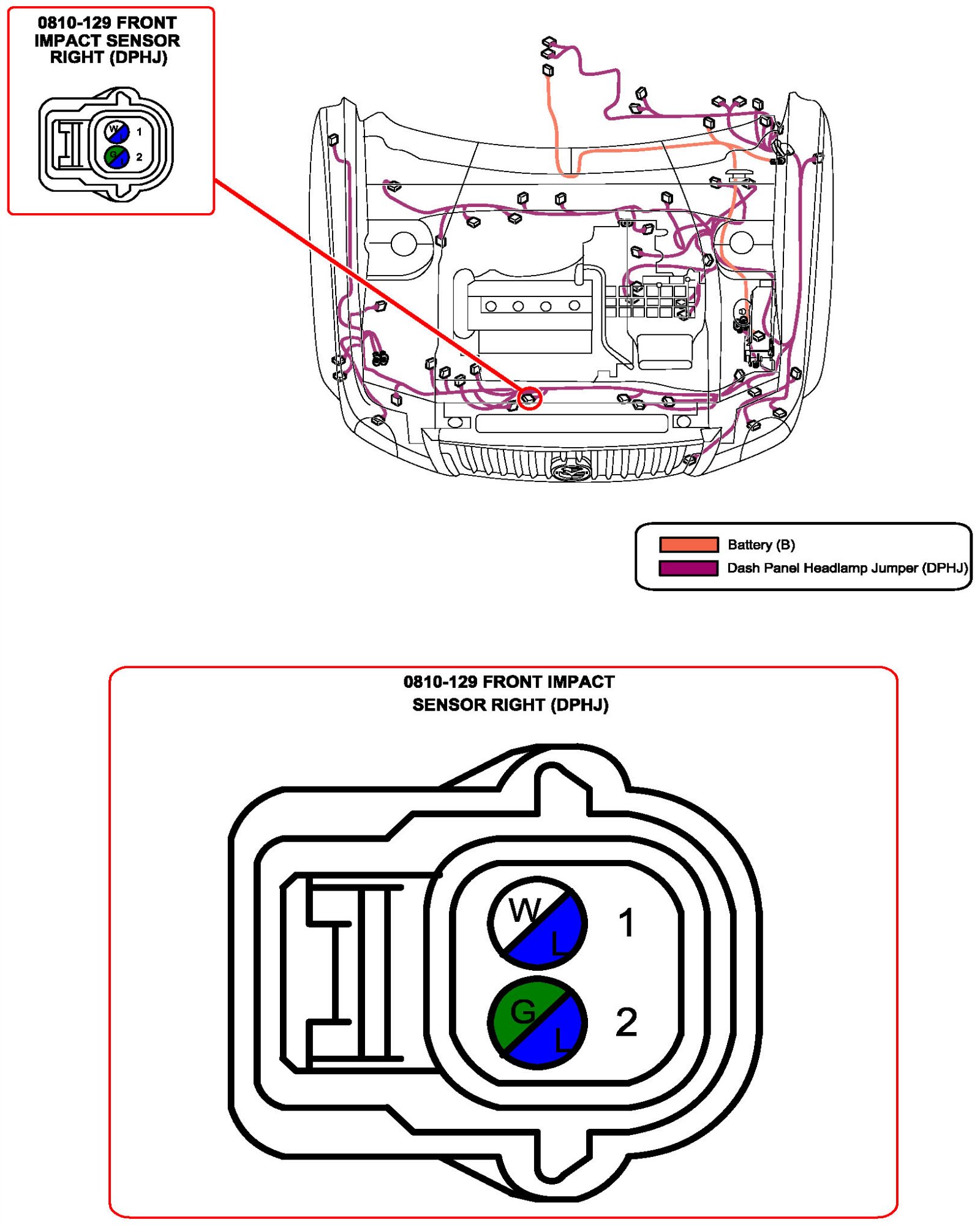

Front Impact Sensor Right:
