System Diagram



-

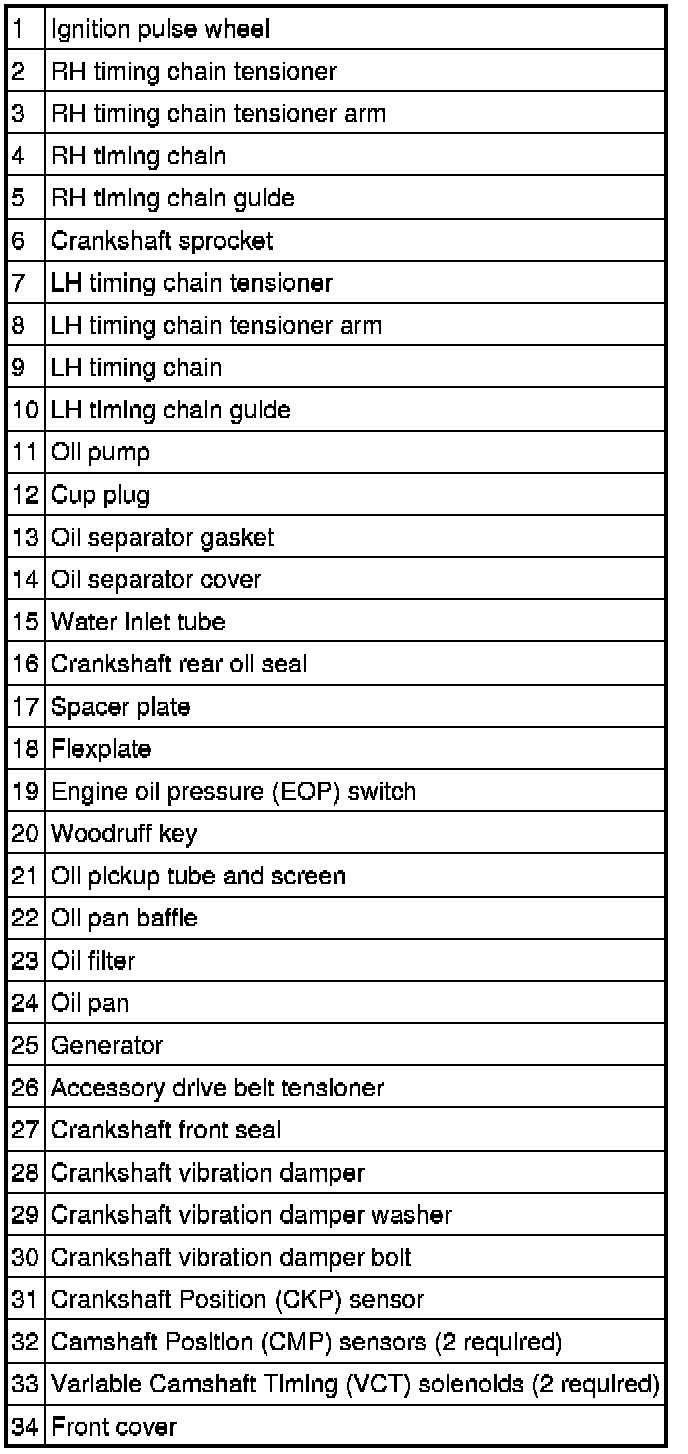

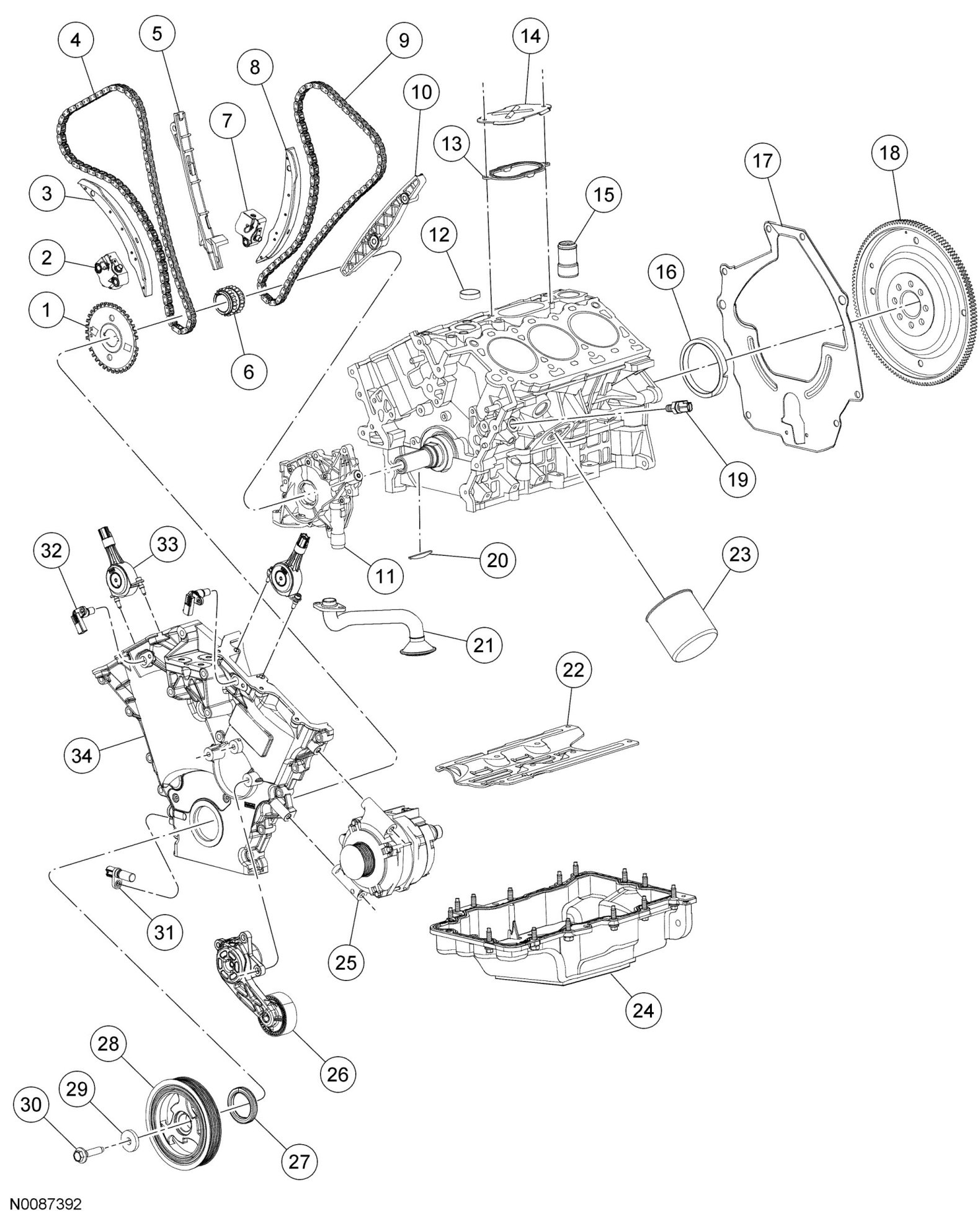

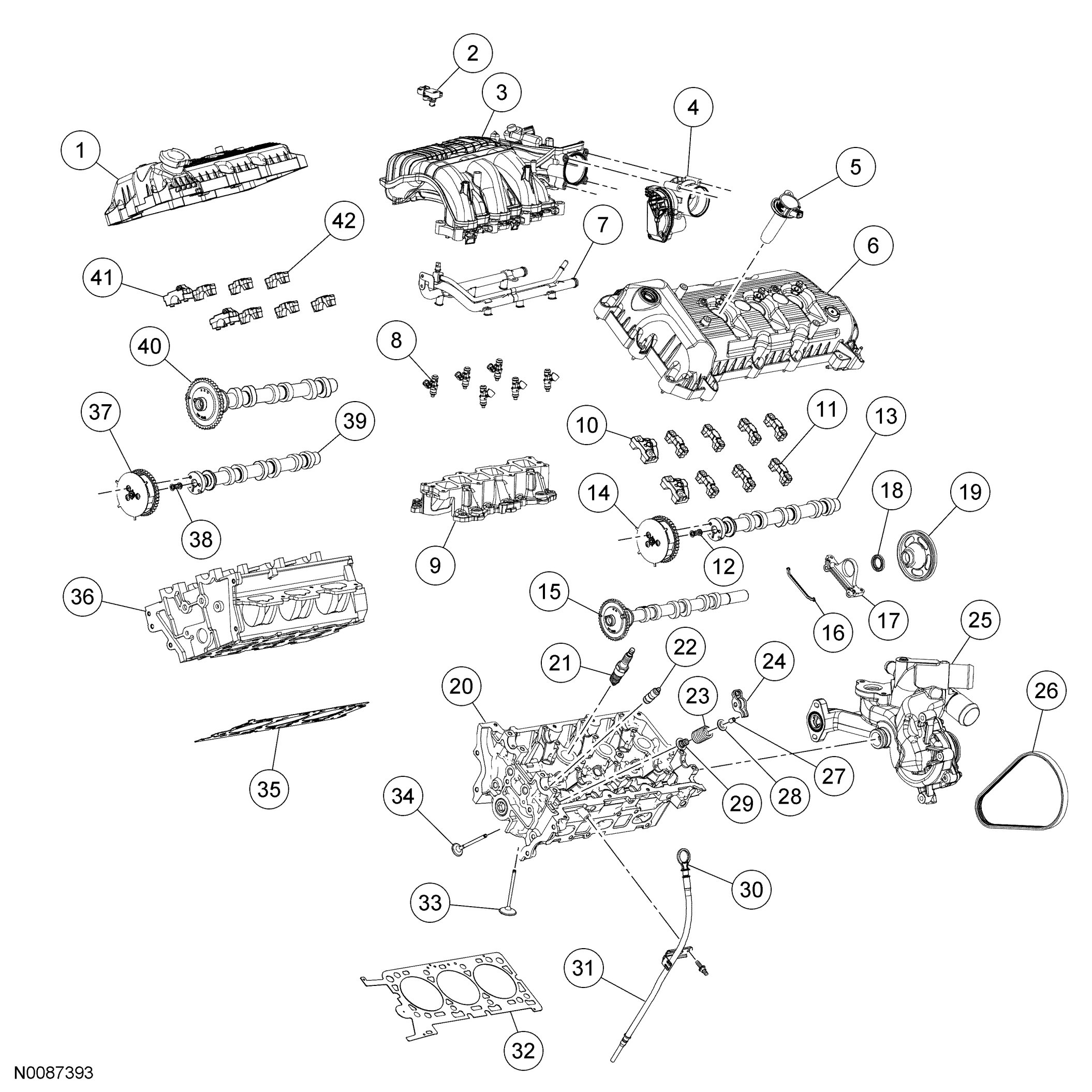

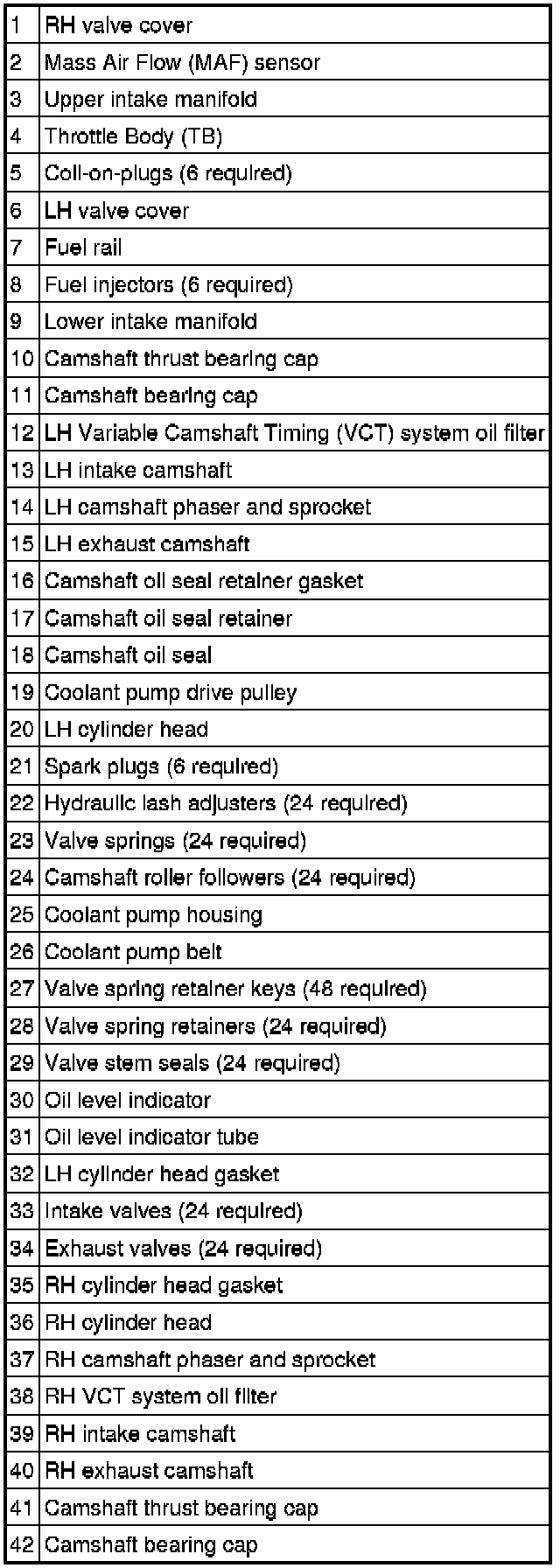

FRONT AND LOWER ENGINE BLOCK- 3.0L EXPLODED VIEW


















1. For additional information, see the procedures.
