Fuel Injector



-

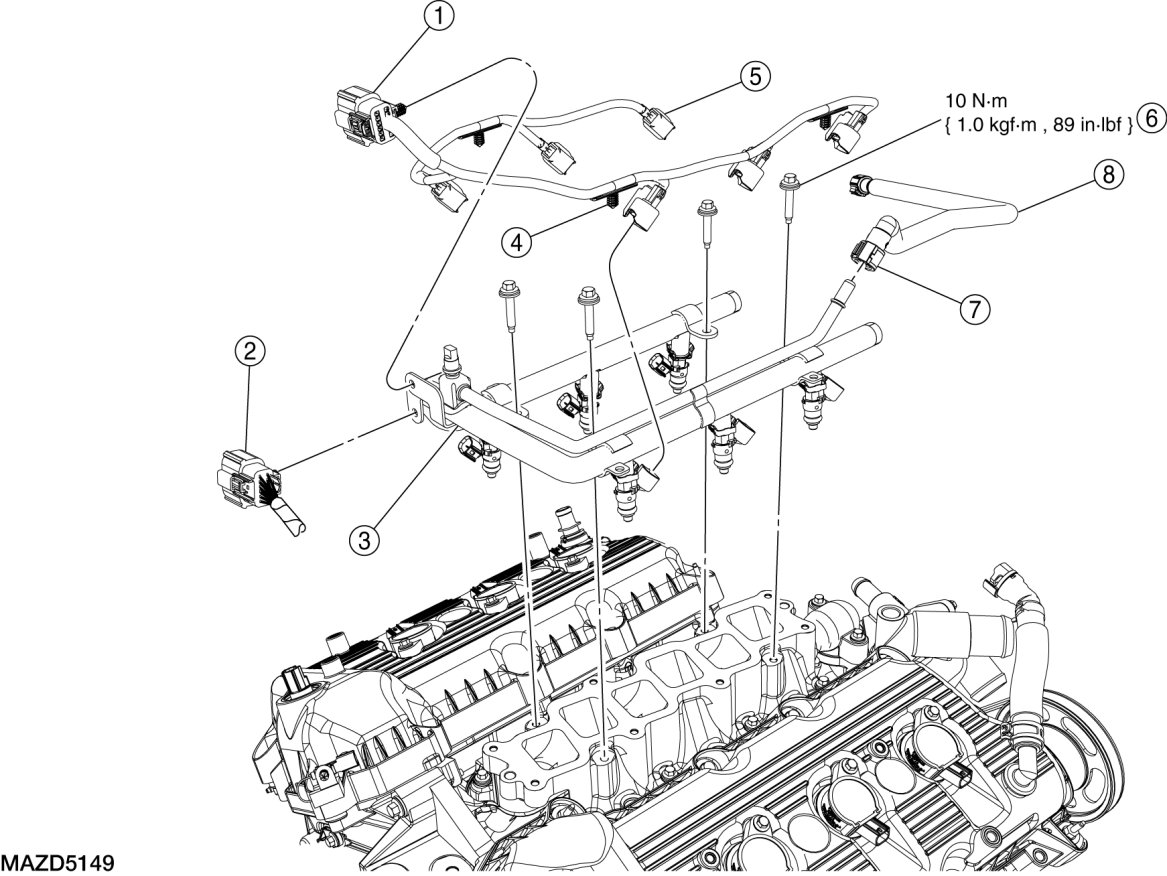

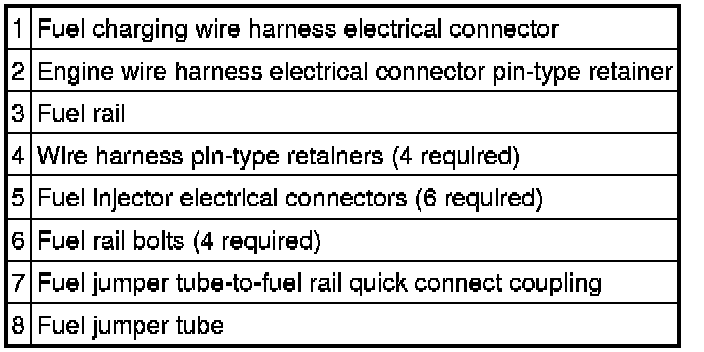

FUEL RAIL AND FUEL INJECTOR EXPLODED VIEW - 3.0L










1. For additional information, see the procedures.
