Accumulator HVAC: Service and Repair

-

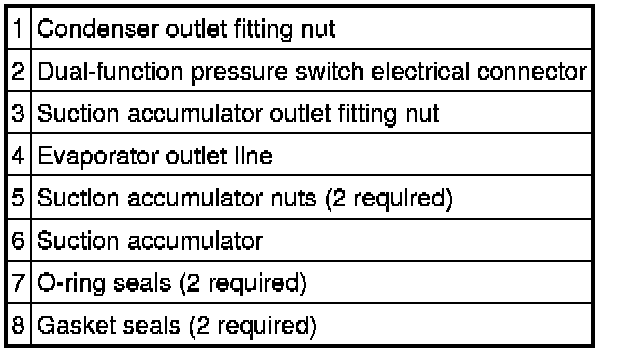

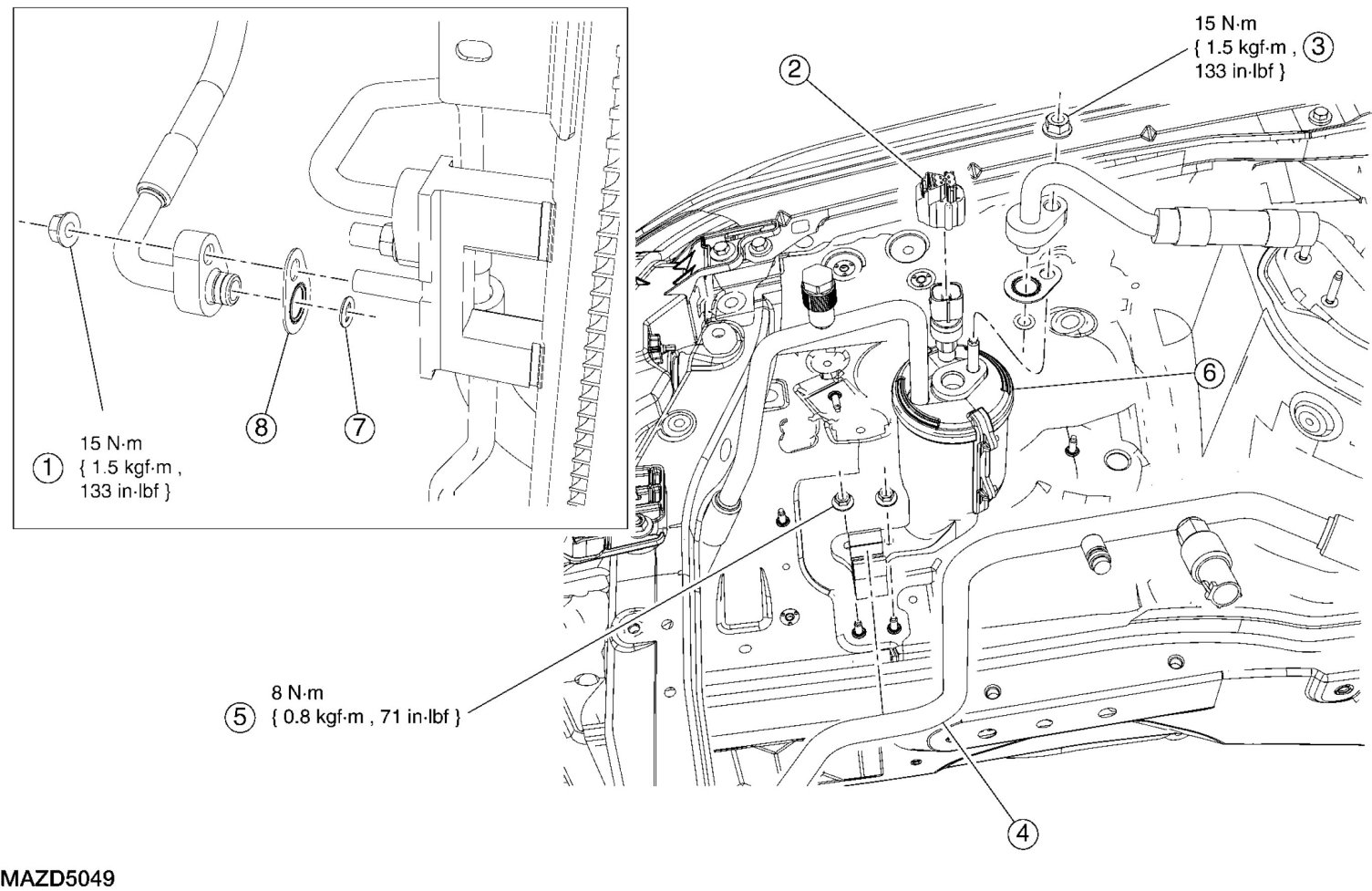

SUCTION ACCUMULATOR - 2.5L AND 3.0L REMOVAL/INSTALLATION










NOTE:The receiver/drier fitting studs can be removed and installed separately from the receiver/drier and are available as service parts. If only the fitting studs are damaged, it is not necessary to install a new receiver/drier.
NOTE:Installation of a new receiver/drier is not required when repairing the air conditioning system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier. Damage to the receiver/drier includes leaks, physical damage to the receiver/drier shell or desiccant, or moisture contamination. Moisture contamination results only from a complete loss of refrigerant, and equalization of the refrigerant system pressure with atmospheric pressure for a period longer than one hour. If even a slight amount of positive refrigerant pressure is present in the refrigerant system before repairs are carried out, a new receiver/drier should not be installed.
1. Recover the refrigerant. See Discharging And Recovery.

2. Remove the front bumper cover. See Service and Repair.

3. Remove the condenser outlet fitting nut and disconnect the fitting.

- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm {1.5 kgf-m, 133 in-lbf}.

4. Disconnect the dual-function pressure switch electrical connector.

5. Remove the suction accumulator outlet fitting nut and disconnect the fitting.

- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm {1.5 kgf-m, 133 in-lbf}.

6. Detach the evaporator outlet line from the suction accumulator bracket clip.

7. Remove the 2 suction accumulator nuts.

- To install, tighten to 8 Nm {0.8 kgf-m, 71 in-lbf}.

8. Remove the suction accumulator.

9. To install, reverse the removal procedure.

- Install new gasket seals and O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil. See Refrigerant Oil Adding.

10. Evacuate, leak test and charge the refrigerant system. See Air Conditioning (A/C) System Evacuation And Charging.
