Symptom Troubleshooting Chart
SYMPTOM TROUBLESHOOTING CHART

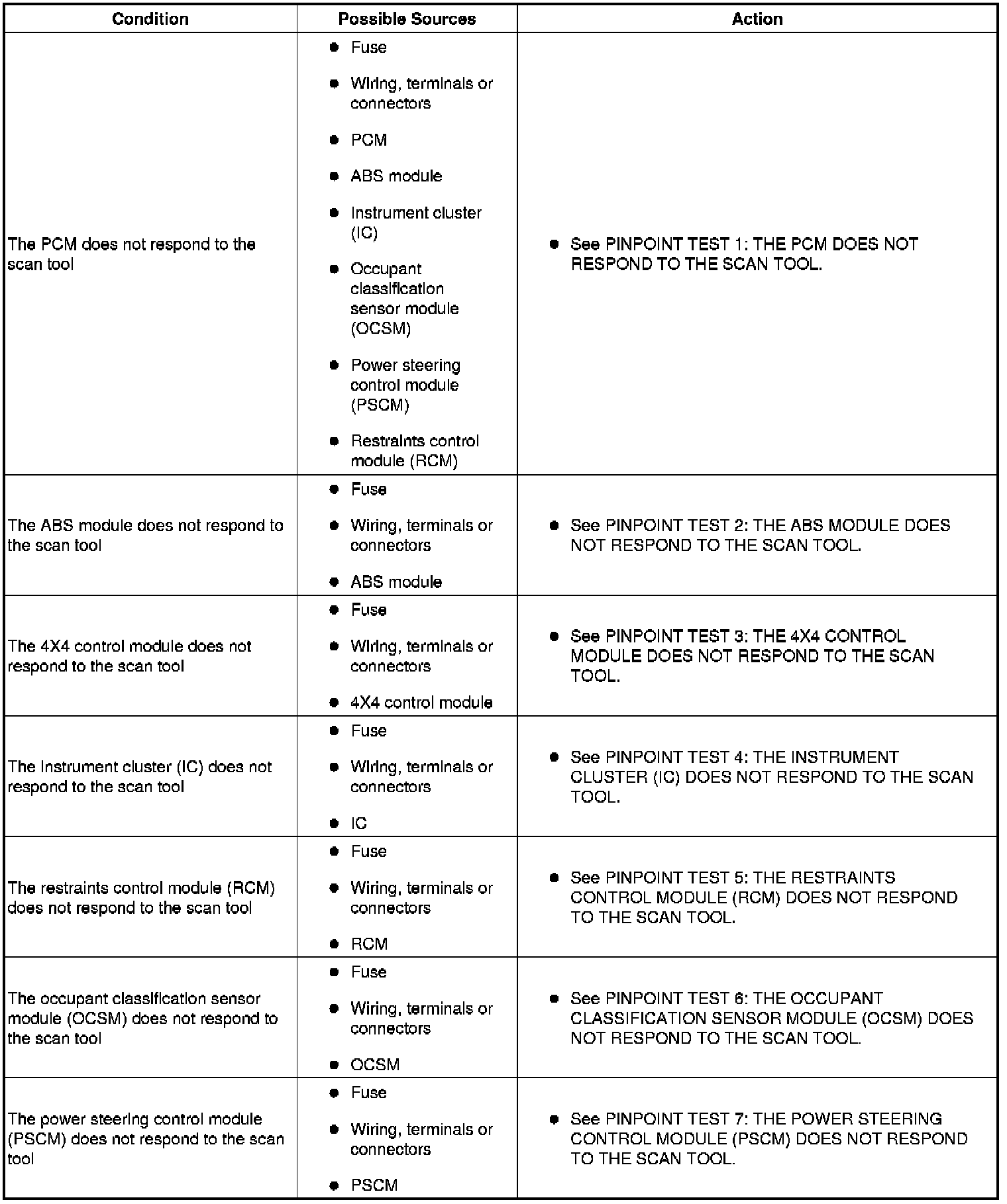

Symptom Troubleshooting Chart (Part 1):

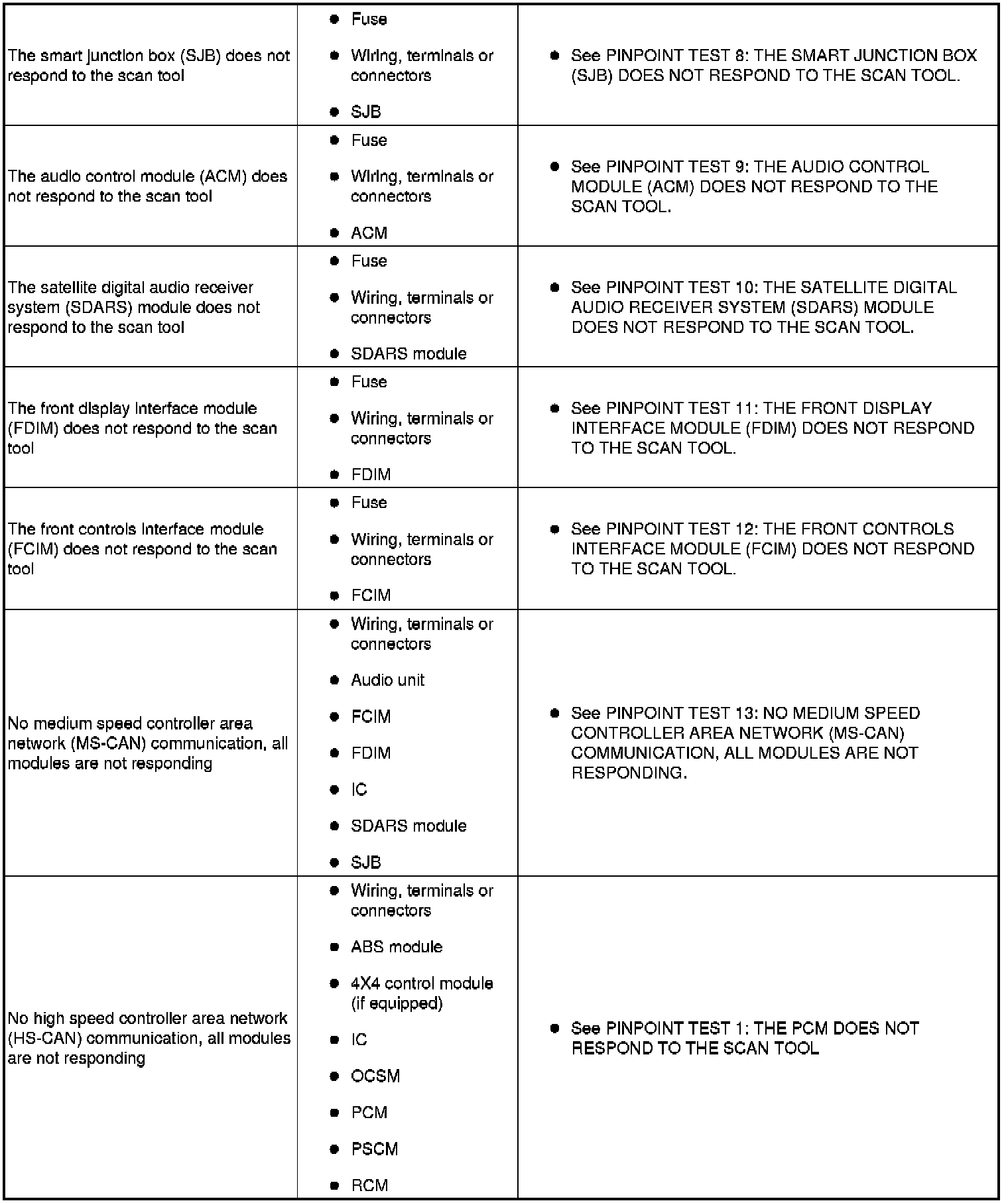

Symptom Troubleshooting Chart (Part 2):

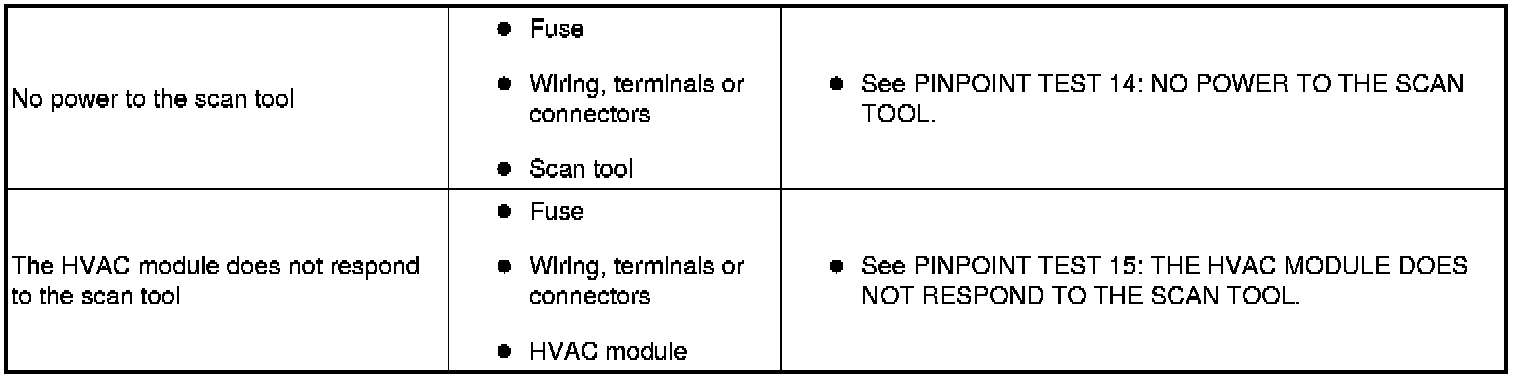

Symptom Troubleshooting Chart (Part 3):
