Exhaust Gas Recirculation: Locations

-

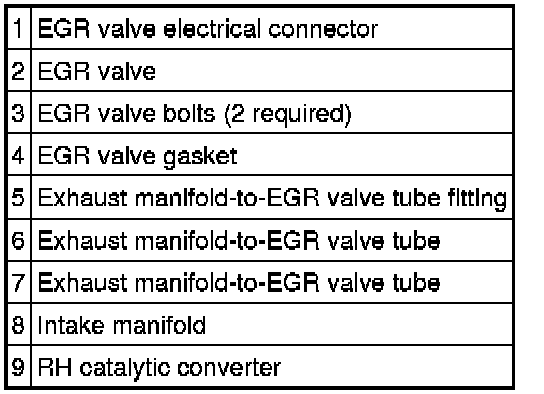

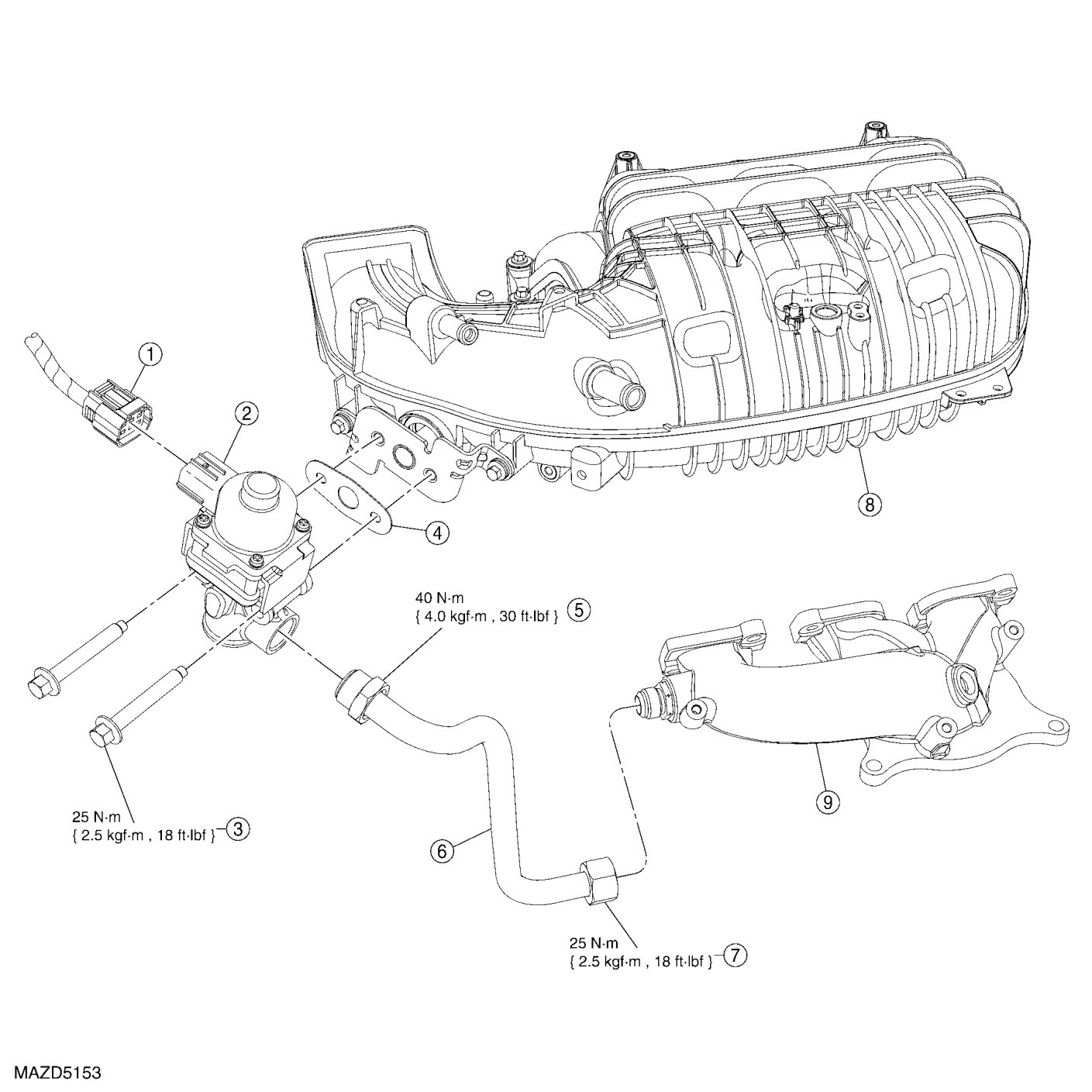

EXHAUST GAS RECIRCULATION (EGR) SYSTEM EXPLODED VIEW - 3.0L

1. For additional information, see the procedures.
