Exhaust Manifold

Install the 6 new LH catalytic converter manifold studs.

Tighten to 11 Nm {1.1 kgf-m, 97 in-lbf}.

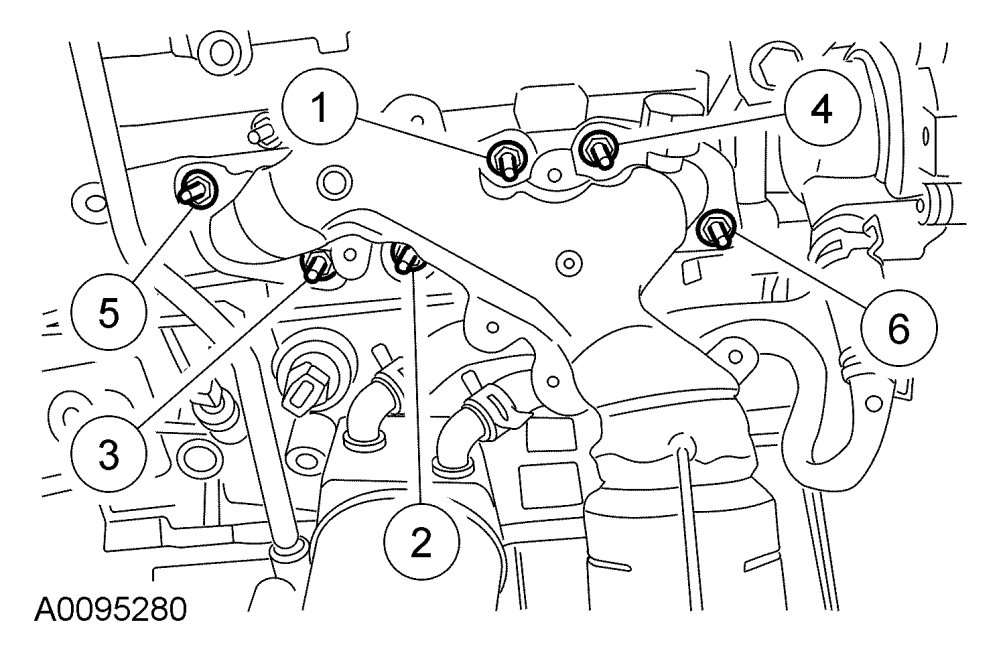

Position the LH catalytic converter and tighten the 6 exhaust manifold nuts in 2 stages in the sequence shown.

Stage 1: Tighten to 25 Nm {2.5 kgf-m, 18 ft-lbf}.
Stage 2: Tighten to 25 Nm {2.5 kgf-m, 18 ft-lbf}.
