Alternator: Service and Repair

-

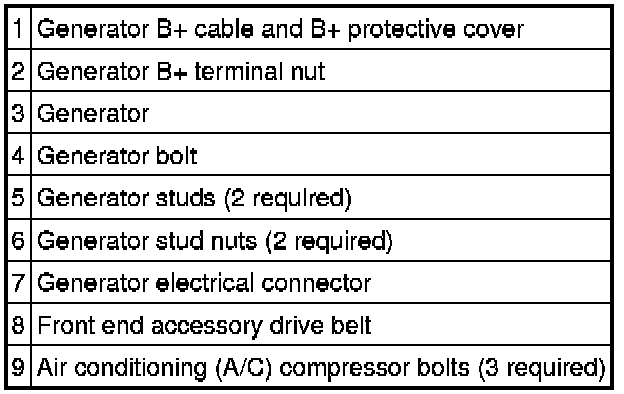

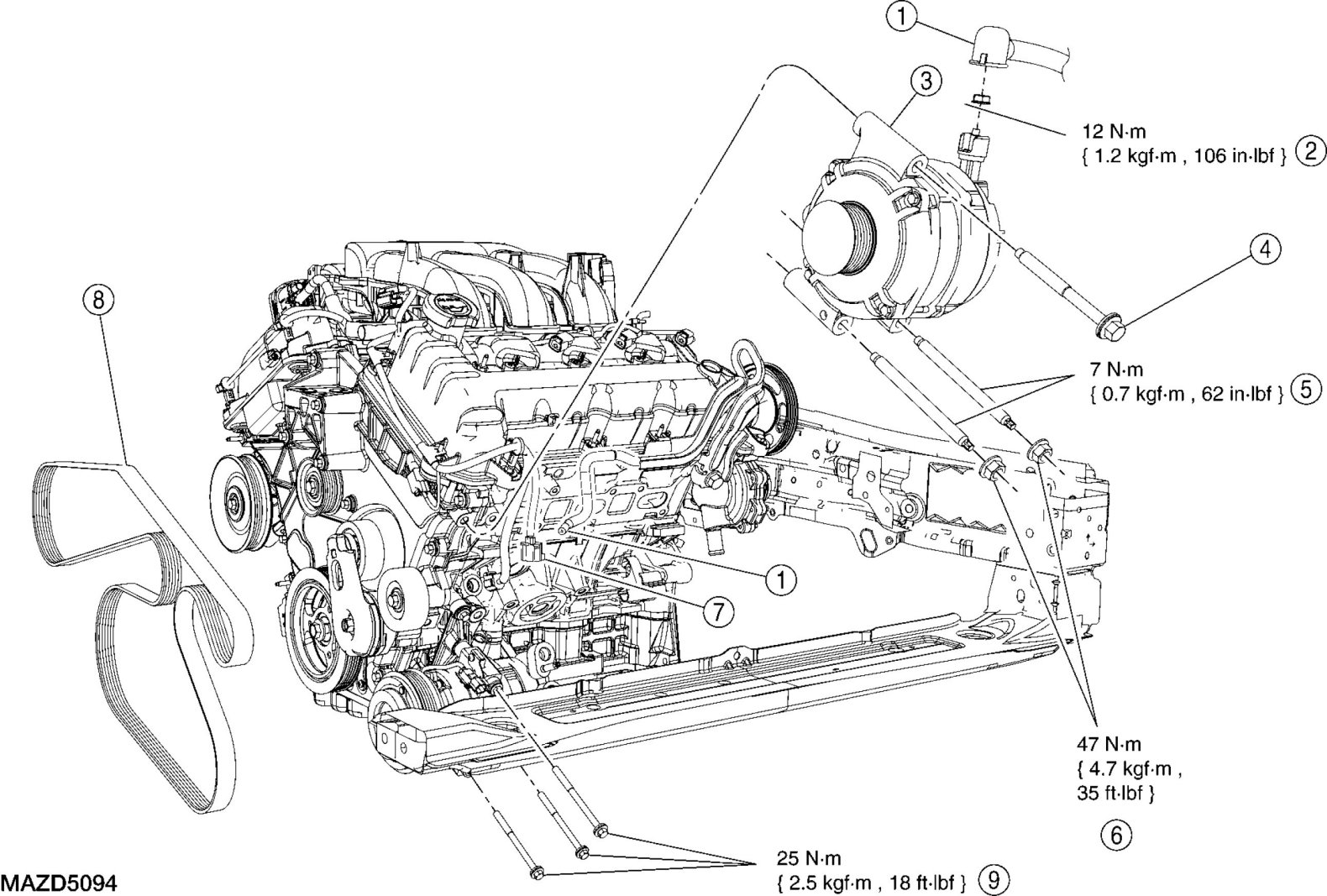

GENERATOR REMOVAL/INSTALLATION - 3.0L










1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

2. Disconnect the battery. See Battery Disconnect.

CAUTION:Do not allow any metal object to come in contact with the generator housing and internal diode cooling fins. A short circuit may result and burn out the diodes. Failure to follow this instruction may result in component damage.
3. Remove the 5 RH lower splash shield bolts and the one pin-type retainer.

- To install, tighten to 8 Nm {0.8 kgf-m, 71 in-lbf}.

4. Remove the RH lower splash shield.

5. Rotate the front end accessory drive tensioner counterclockwise and position the accessory drive belt aside.

6. Disconnect the generator electrical connector.

7. Position the generator B+ protective cover aside and remove the generator B+ terminal nut.

- To install, tighten to 12 Nm {1.2 kgf-m, 106 in-lbf}.

8. Remove the 3 air conditioning (A/C) compressor bolts. Use a tie-strap and position the A/C compressor aside.

- To install, tighten to 25 Nm {2.5 kgf-m, 18 ft-lbf}.

9. Loosen the 2 generator nuts.

- To install, tighten to 47 Nm {4.7 kgf-m, 35 ft-lbf}.

10. Remove the 2 lower generator studs.

- To install, tighten to 7 Nm {0.7 kgf-m, 62 in-lbf}.

11. Remove the upper generator bolt and the generator.

- To install, tighten to 47 Nm {4.7 kgf-m, 35 ft-lbf}.

12. To install, reverse the removal procedure.
