Connector End Views - Transaxle Shift Control
Connector End Views - Transaxle Shift Control
-

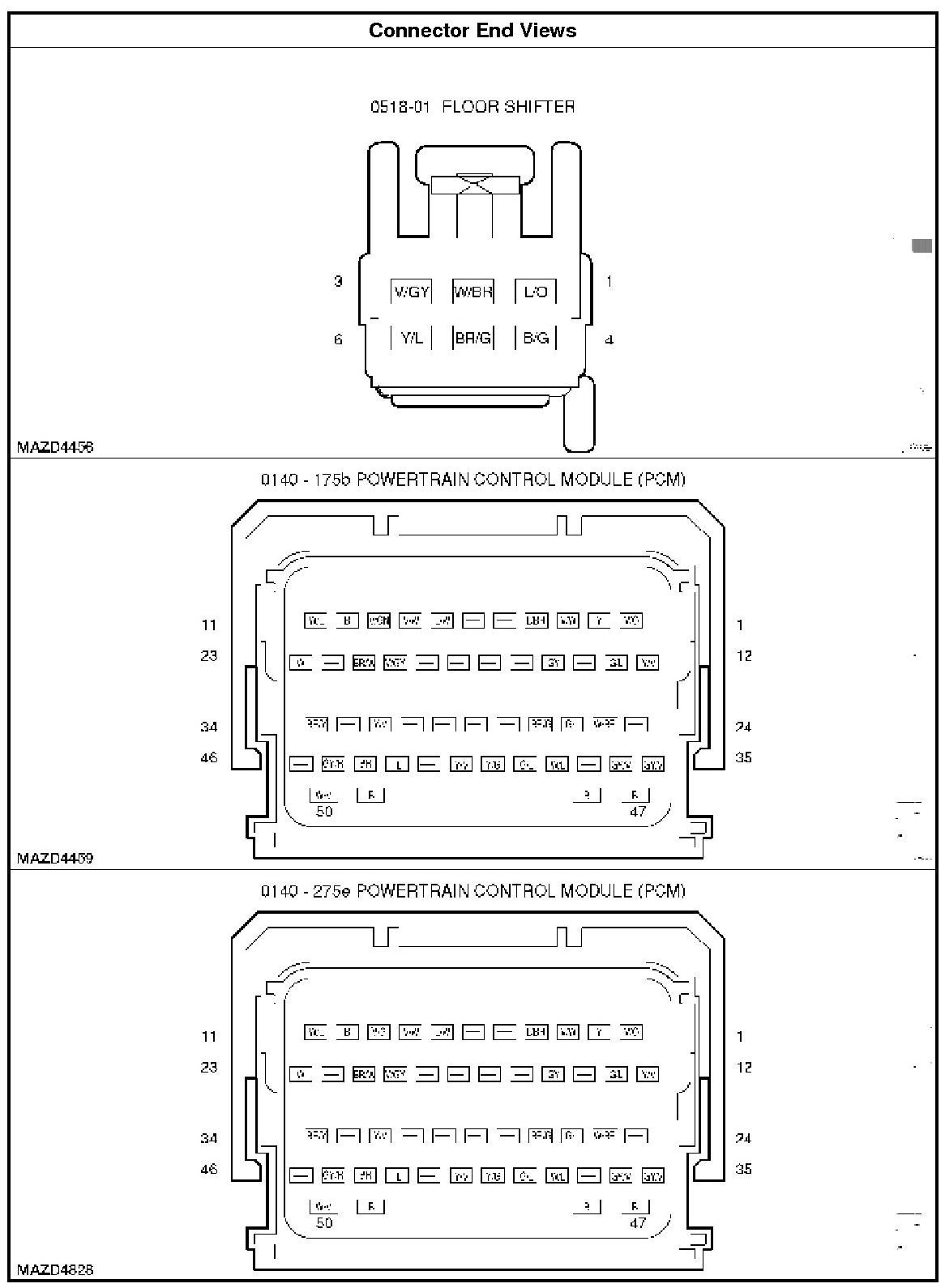

CONNECTOR END VIEWS - TRANSAXLE SHIFT CONTROL
