Precaution [Dynamic Stability Control (DSC)]

PRECAUTION [DYNAMIC STABILITY CONTROL (DSC)]

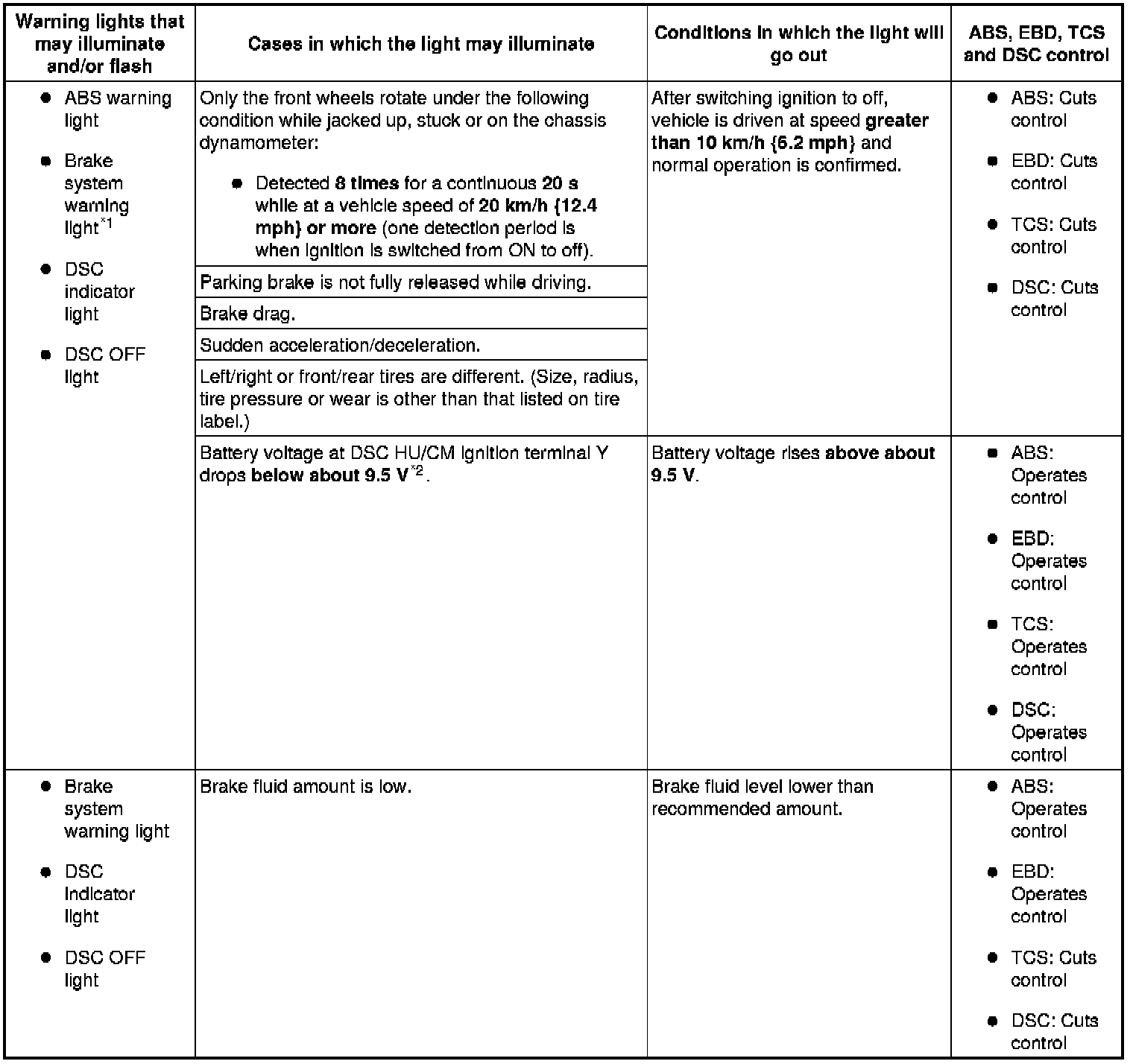

1. The ABS warning light and/or brake system warning light and/or DSC indicator light and/or DSC OFF light illuminate even when the system is normal.





*1
In case where the light may illuminate, only when DSC HU/CM detects that a wheel-speed sensor determines that more than two wheels are malfunctioning.
*2
If battery voltage drops below 10 V while vehicle speed is greater than 3 km/h {2 mph}, DSC HU/CM detects DTC U3003:16.

2. Precautions during servicing of DSC. The DSC is composed of electrical and mechanical parts. It is necessary to categorize malfunctions as being either electrical or hydraulic when performing troubleshooting.
a. Malfunction in electrical system

- The control module has an on-board diagnostic function. With this function, the ABS warning light and/or brake system warning light and/or DSC indicator light and/or DSC OFF light will come on when there is a problem in the electrical system.
Also, past and present malfunctions are recorded in the control module. This function can find malfunction that do not occur during periodic inspections. Connect the M-MDS to the DLC-2. The stored malfunctions will be displayed in the order of occurrence. To fine out the causes of DSC malfunction, use these on-board diagnostic results.
- If a malfunction occurred in the past but is now normal, the cause is likely a temporary poor connection of the harness.
The control module usually operates normally. Be careful when searching for the cause of malfunction.
- After repair, it is necessary to clear the DTC from the control module memory.
Also, if the DSC related parts have been replaced, verify that the no DTC has been displayed after repairs.
- After repairing the ABS wheel-speed sensor or ABS sensor rotor, or after replacing the control module, the ABS warning light may not go off even when the ignition is switched ON. In this case, drive the vehicle at a speed of 10 km/h {6.2 mph} or more, make sure the ABS warning light goes off, then clear the DTC.
- When repairing, if the DSC related connectors are disconnected and the ignition is switched ON, the control module will mistakenly detect a fault and record it as a malfunction.

CAUTION:
- In DSC vehicles, when any DSC HU/CM, steering angle sensor and combined sensor are replaced, perform the sensor standard point installation of each sensor.
- To protect the control module, make sure the ignition is off before connecting or disconnecting the control module connector.

b. Malfunctions in hydraulic system

- Symptoms in a hydraulic system malfunction are similar to those in a conventional brake malfunction. However, it is necessary to determine if the malfunction is in a DSC component or the conventional brake system.
- The hydraulic unit contains delicate mechanical parts. If foreign materials get into the component, the DSC may fail to operate. Also, it will likely become extremely difficult to find the location of the malfunction in the event that the brakes operate but the DSC does not. Make sure foreign materials do not get inside when servicing the DSC (e.g.brake fluid replacement, pipe removal).
