Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION [L3 WITH TC]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable and wait for 1 min or more.

3. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

4. Disconnect the clock spring connector (part wiring harness-side).

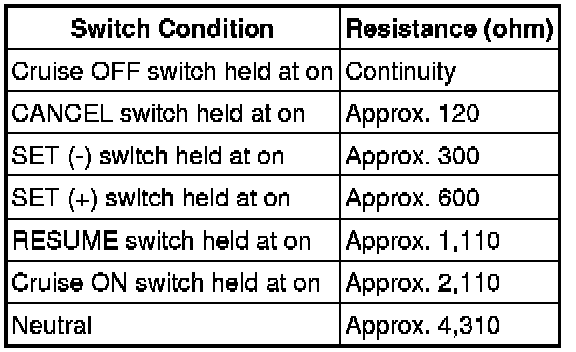

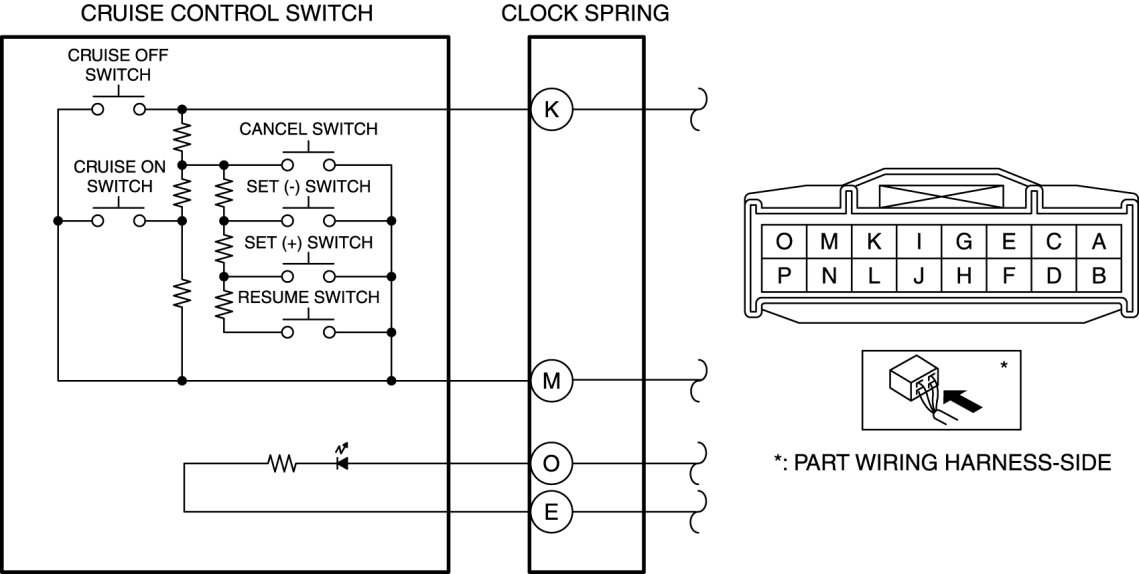

5. Inspect for resistance and continuity between clock spring connector terminals K and M (part wiring harness-side) using a tester.

- If not as specified, replace the steering switch. Service and Repair

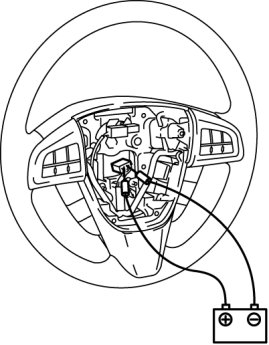

6. Apply battery positive voltage to clock spring connector terminal O (part wiring harness-side), and terminal E (part wiring harness-side) to ground.






7. Verify that the LED illuminates.

- If the LED does not illuminate, replace the steering switch. Service and Repair
