Cabin Temperature Sensor / Switch: Service and Repair

PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate inner (driver's side). Front Scuff Plate Removal/Installation

b. Front side trim (driver's side). Front Side Trim Removal/Installation

c. Console panel. Console Panel Removal/Installation

d. Console. Console Removal/Installation

e. Hood release lever. Service and Repair

f. Lower panel Lower Panel Removal/Installation

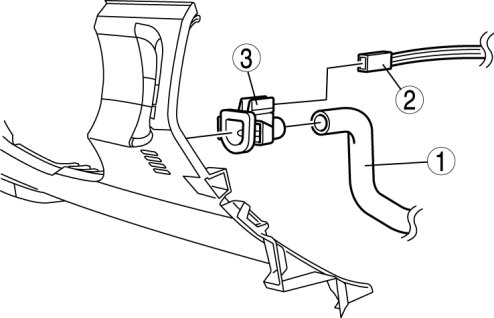

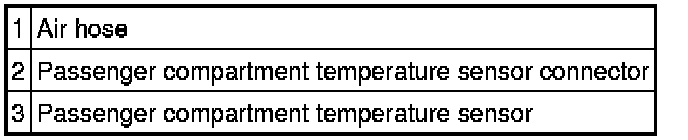

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
