Climate Control Unit Removal/Installation - Full-Auto Air Conditioner




CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Center panel Center Panel Removal/Installation

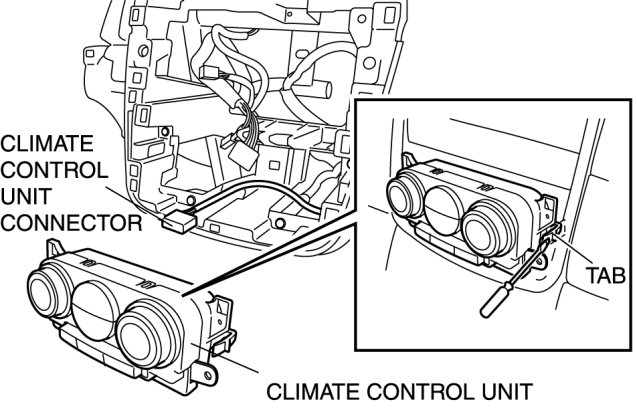

3. Release the tab and pull the climate control unit toward you.

4. Disconnect the climate control unit connectors and remove the climate control unit.






5. Install in the reverse order of removal.
