Drive Belt: Service and Repair

DRIVE BELT REMOVAL/INSTALLATION [L3 WITH TC]

1. Remove the splash shield (RH).

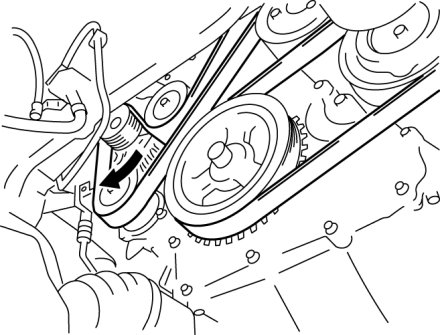

2. Rotate the drive belt auto tensioner in the direction shown in the figure and remove the drive belt.

3. Install the drive belt.

4. Verify that the drive belt auto tensioner indicator mark does not exceed the limit. (See Testing and Inspection.)

5. Install the splash shield (RH).
