Diagnostic Monitoring Test Results

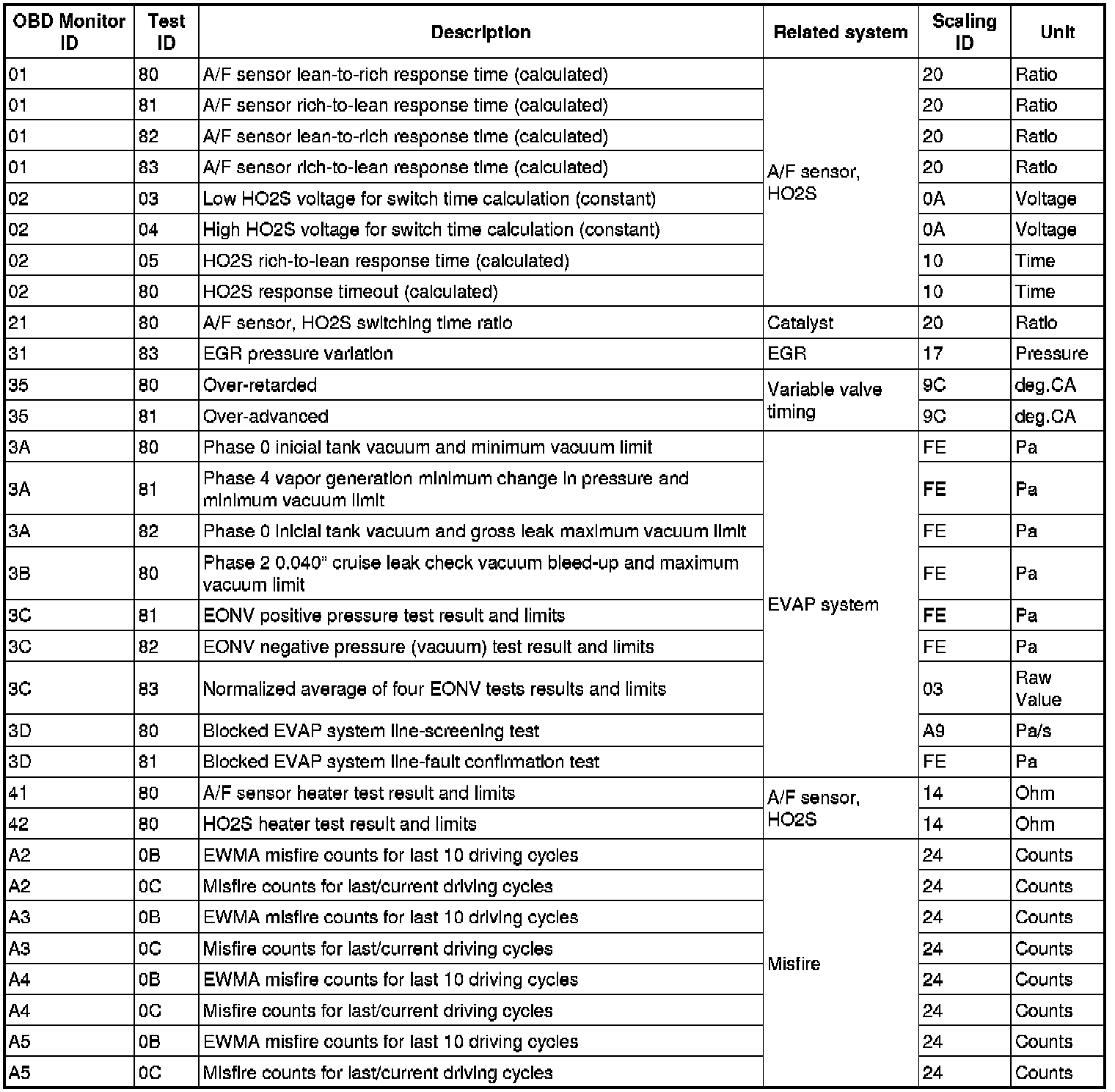

DIAGNOSTIC MONITORING TEST RESULTS [L3 WITH TC]

- The purpose of this test mode is to confirm the result of the OBD-II monitor diagnostic test results. The result values stored when a particular monitor is completed are displayed. If the monitor is not completed, the initial value is displayed.
