EGR Valve: Service and Repair
EGR VALVE REMOVAL/INSTALLATION [L3 WITH TC] 1.
Disconnect the negative battery cable.
2.
Remove the charge air cooler duct.
3.
Disconnect the
EGR valve connector.
4.
Remove the air hose and air duct. (See
Service and Repair)
5.
Drain the engine coolant. (See
Service and Repair.)
6.

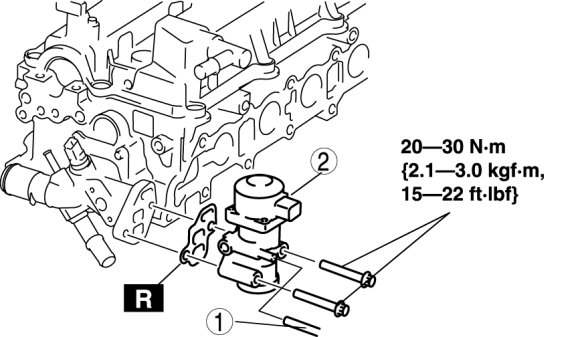

Remove in the order indicated in the table.
7.
Install in the reverse order of removal.
