Exhaust Manifold

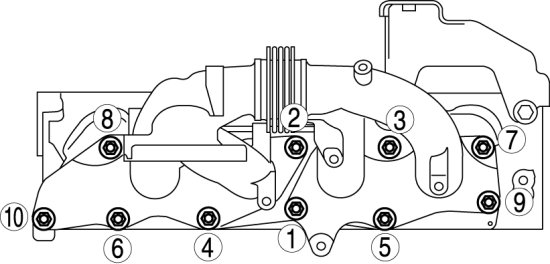

Tighten the
exhaust manifold
installation nuts in the order shown.
Tightening torque
43-64 Nm {4.4-6.5 kgf-m, 32-47 ft-lbf}
