Instruments - Multi Information Display Screen (MID) Distorted

Bulletin No: 09-016/12

Last Issued: 04/19/2012

Subject:
DISTORTED (COLOR) MULTI INFORMATION DISPLAY (MID) SCREEN

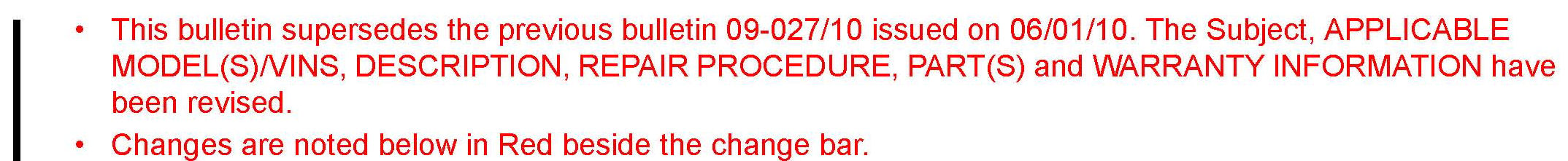

BULLETIN NOTE

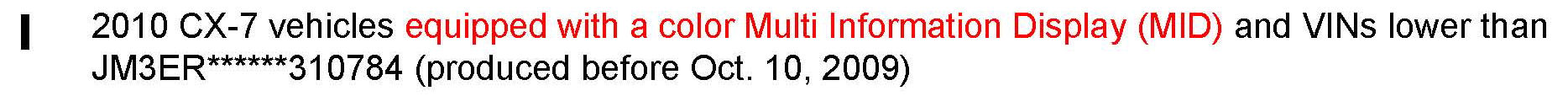

APPLICABLE MODEL(S)/VINS

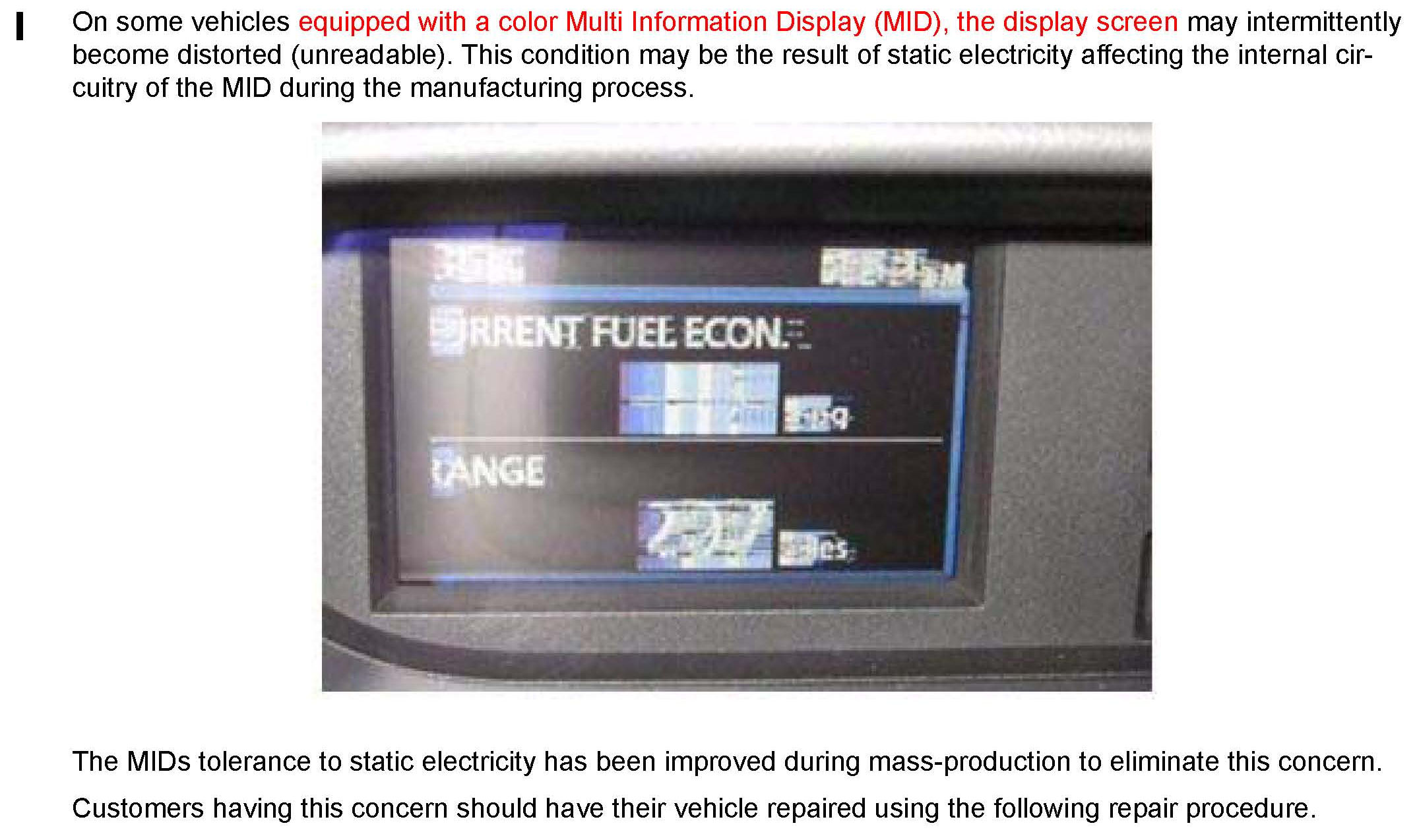

DESCRIPTION

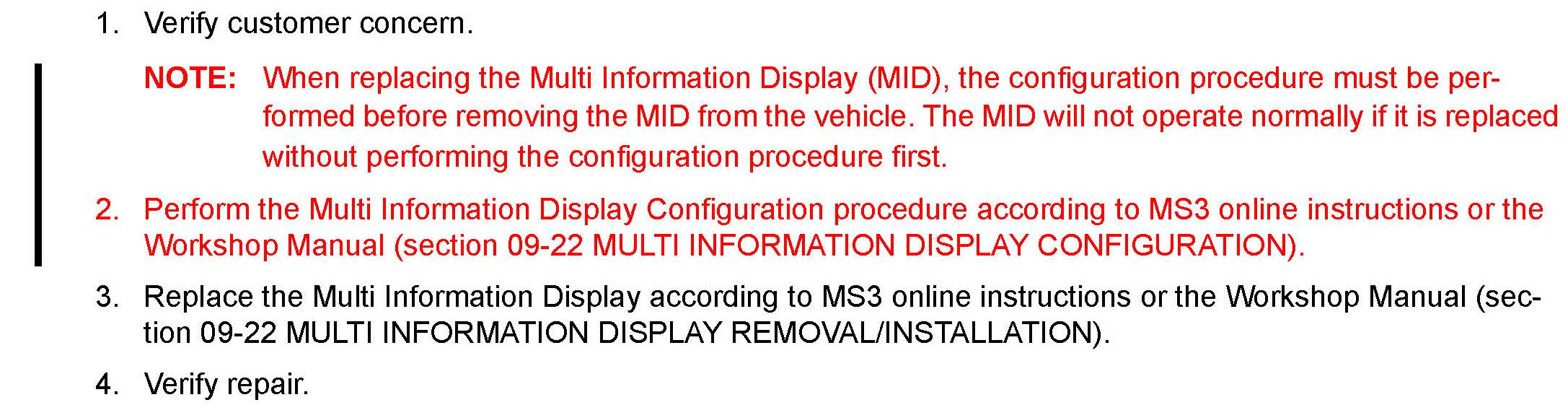

REPAIR PROCEDURE

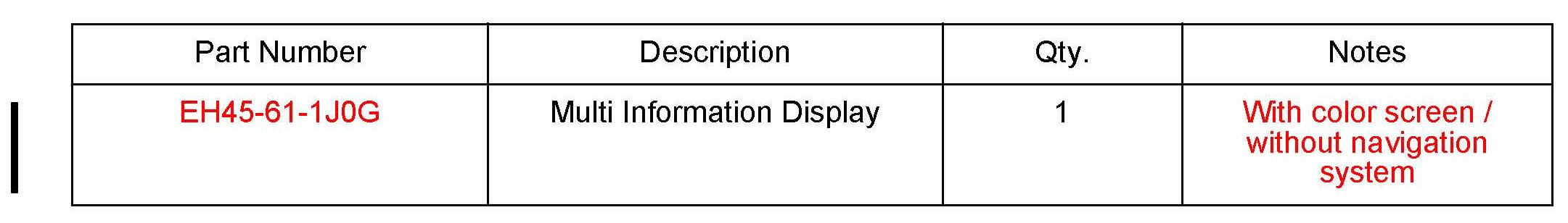

PART(S) INFORMATION

WARRANTY INFORMATION
