Advanced Keyless Entry and Start System
>>
No.3 Advanced Keyless Entry Function Inoperative - Advanced Keyless Entry and Start System
No.3 Advanced Keyless Entry Function Inoperative - Advanced Keyless Entry and Start System
NO.3 ADVANCED
KEYLESS ENTRY
FUNCTION INOPERATIVE [ADVANCED KEYLESS ENTRY AND START SYSTEM]
Possible Cause:
Diagnostic procedure
Step 1-Step 5:

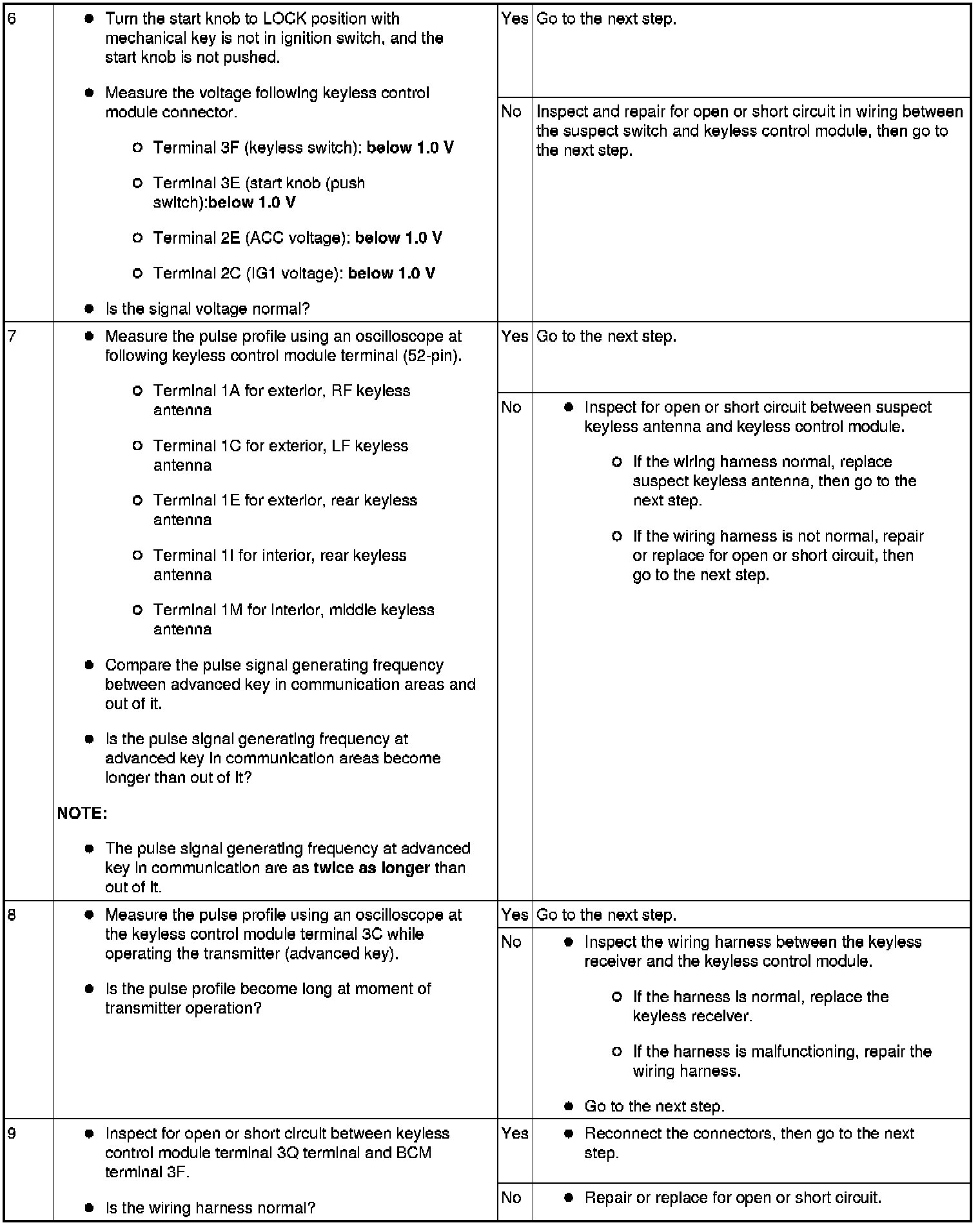

Step 7-Step 9:
Step 10-Step 11:
