Automatic Transmission/Transaxle

Diagram 0517-2a:

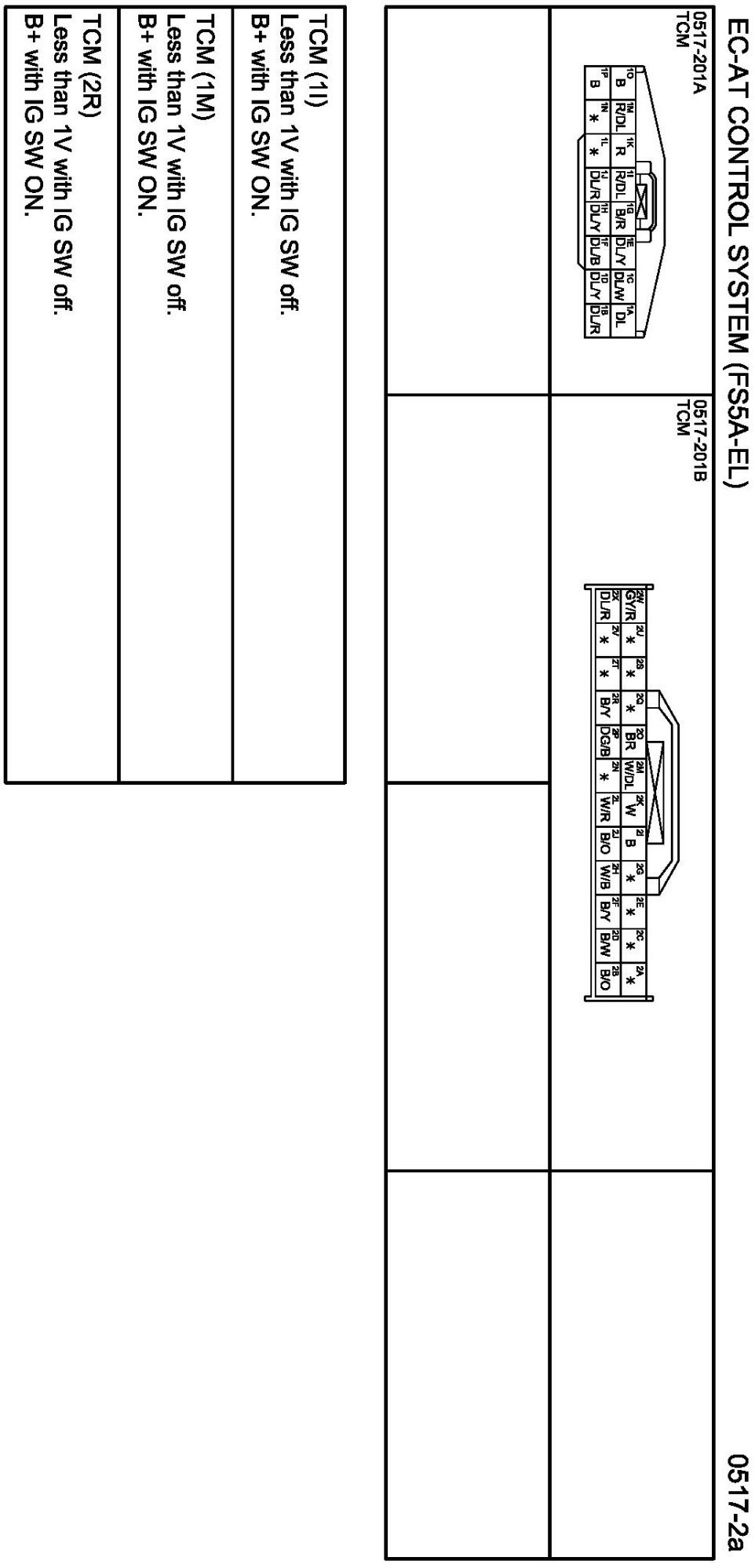

Connectors 0517-2a:

Routing View 0517-2a:

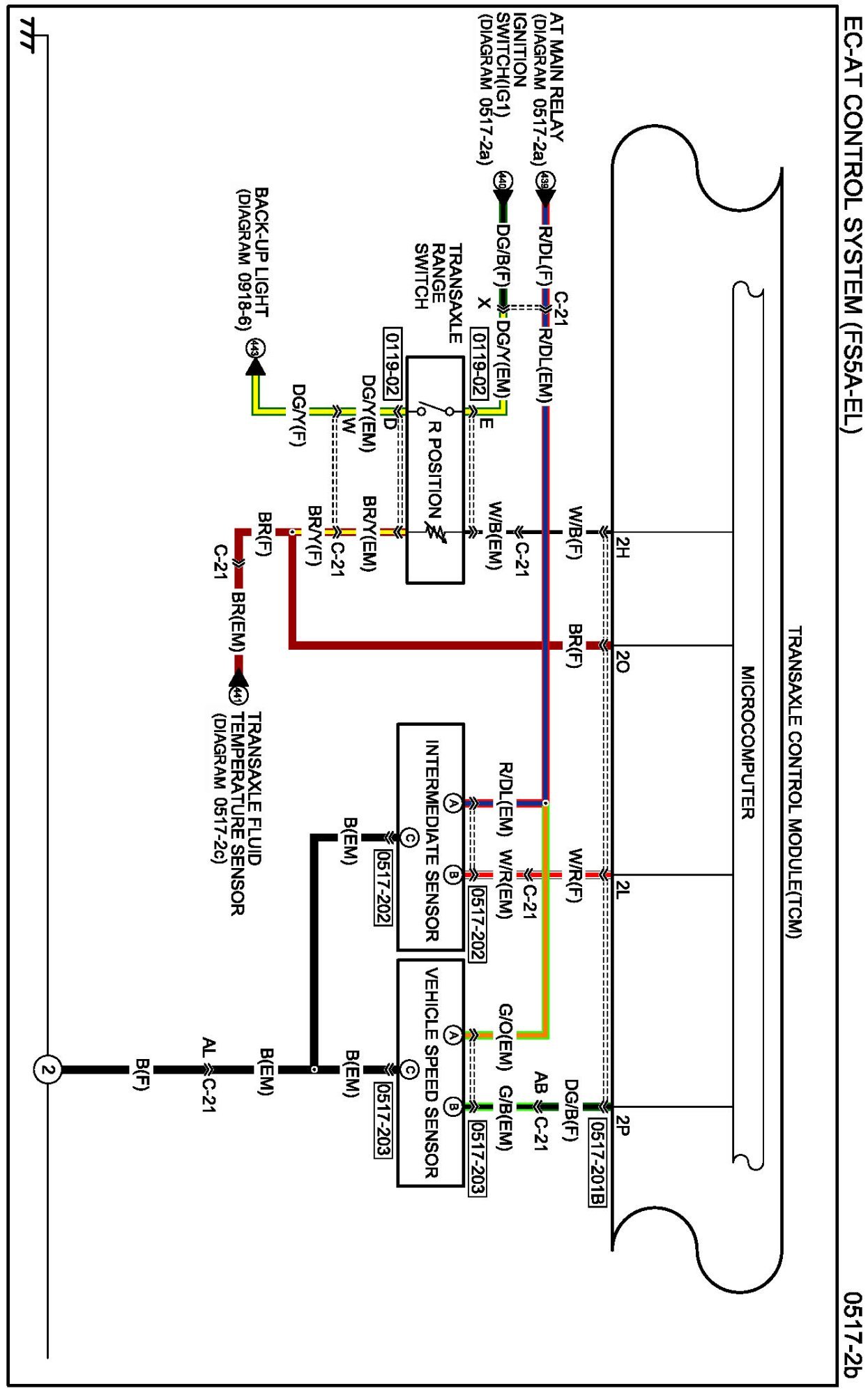

Diagram 0517-2b:

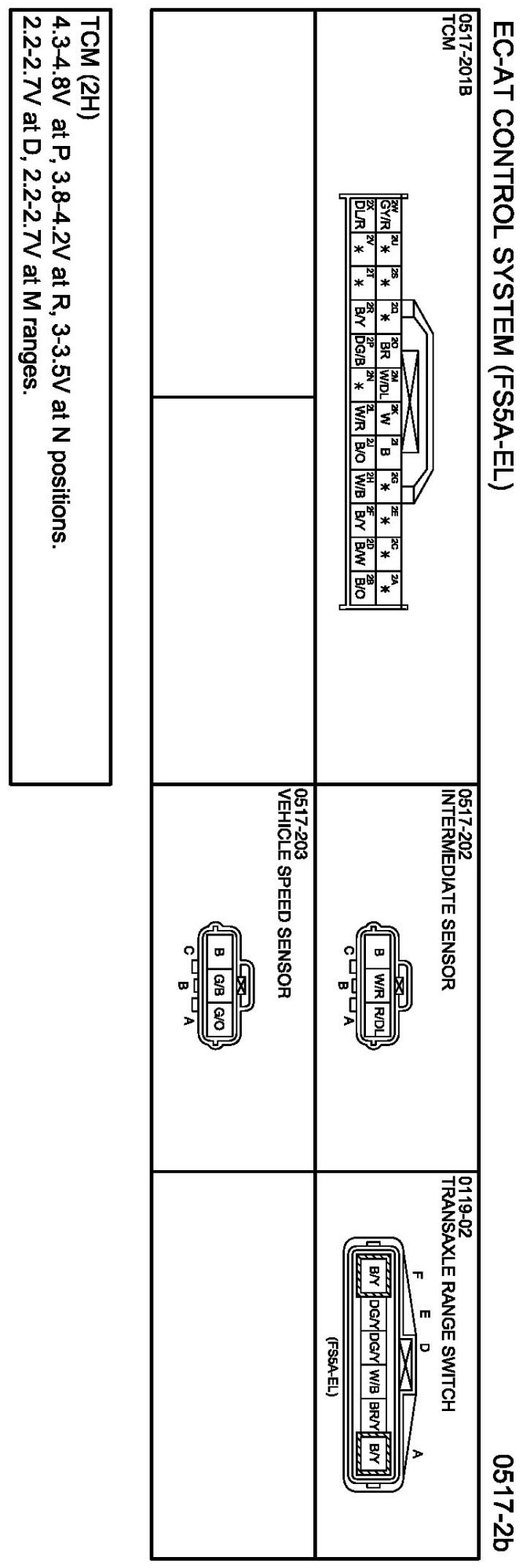

Connectors 0517-2b:

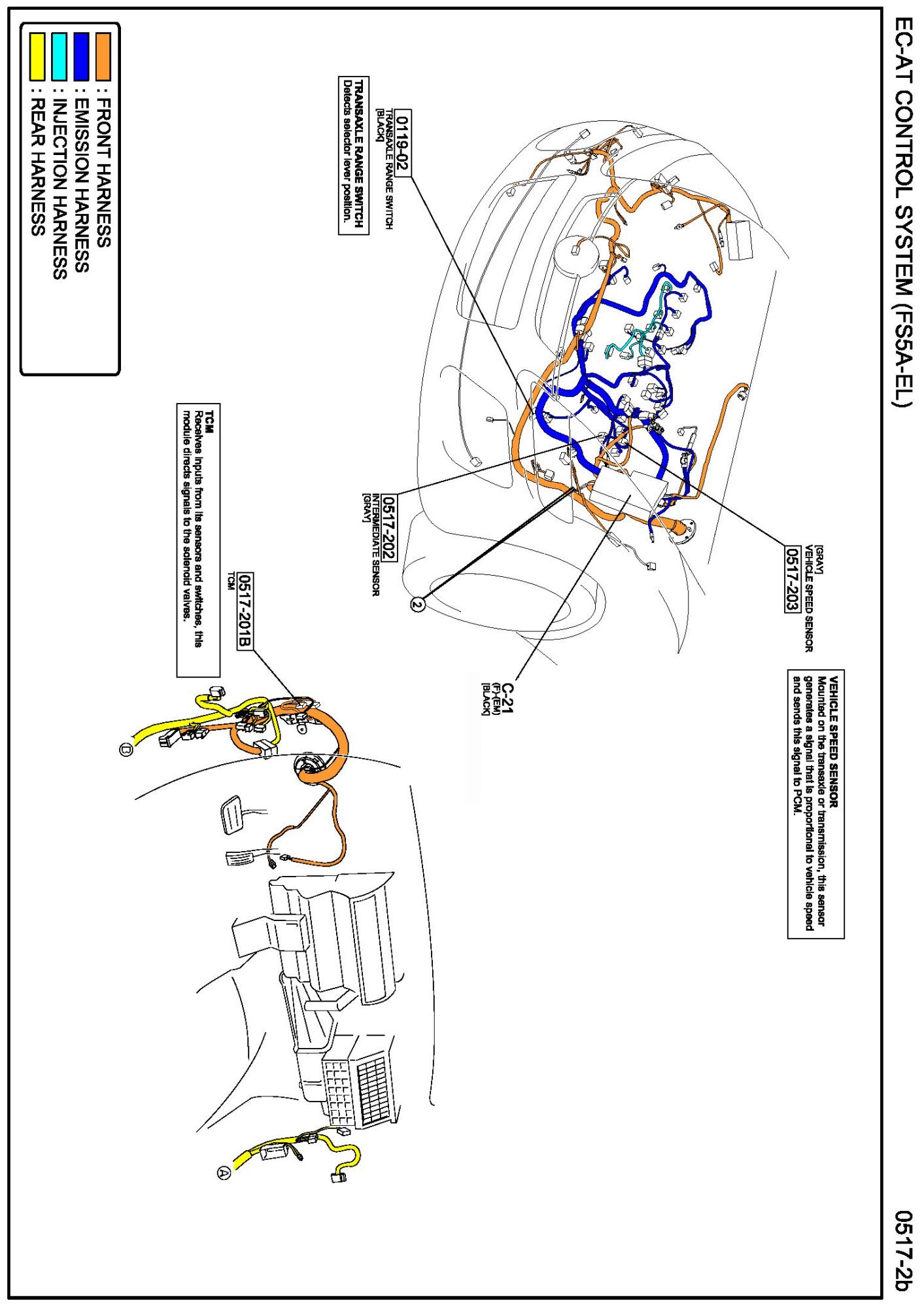

Routing View 0517-2b:

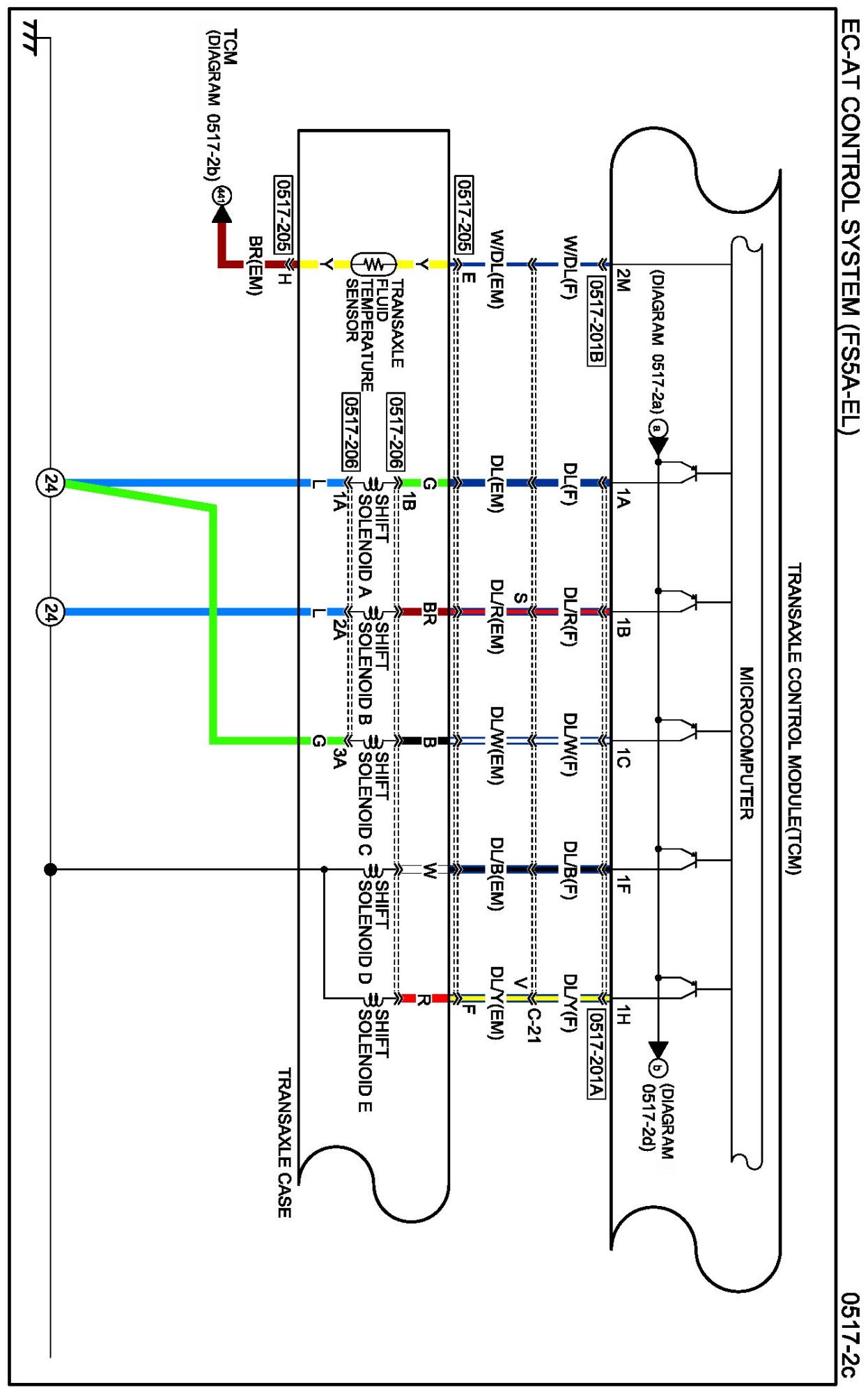

Diagram 0517-2c:

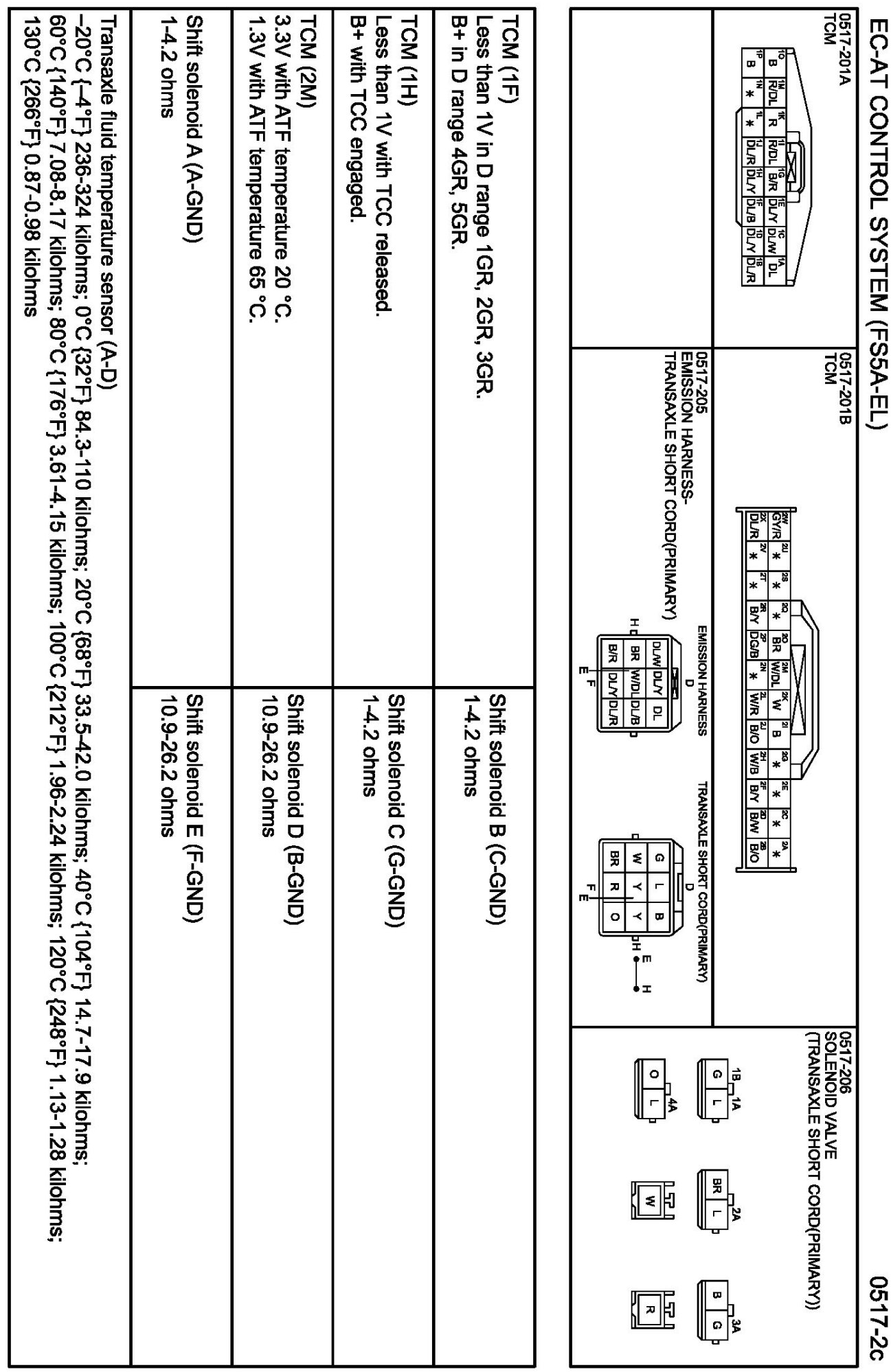

Connectors 0517-2c:

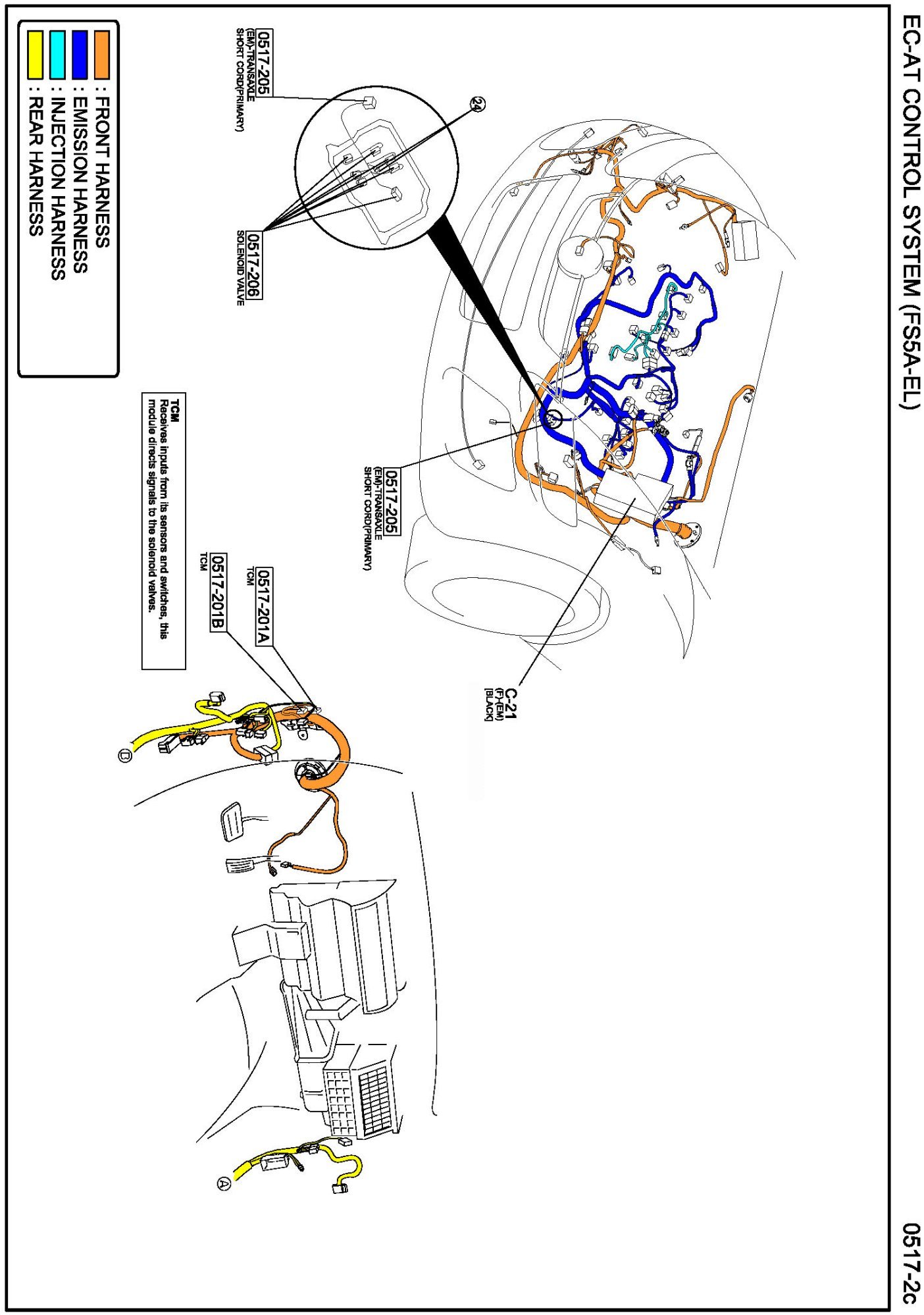

Routing View 0517-2c:

Diagram 0517-2d:

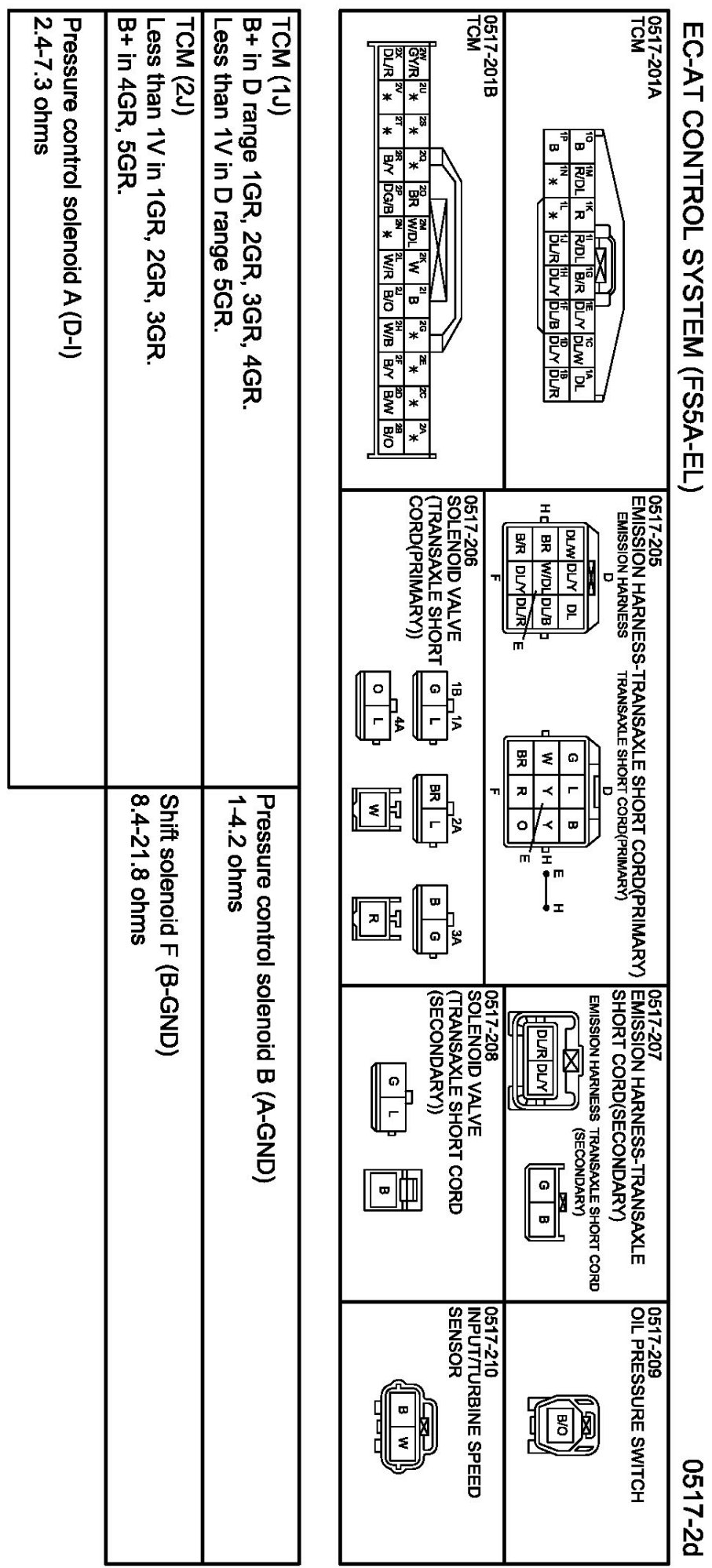

Connectors 0517-2d:

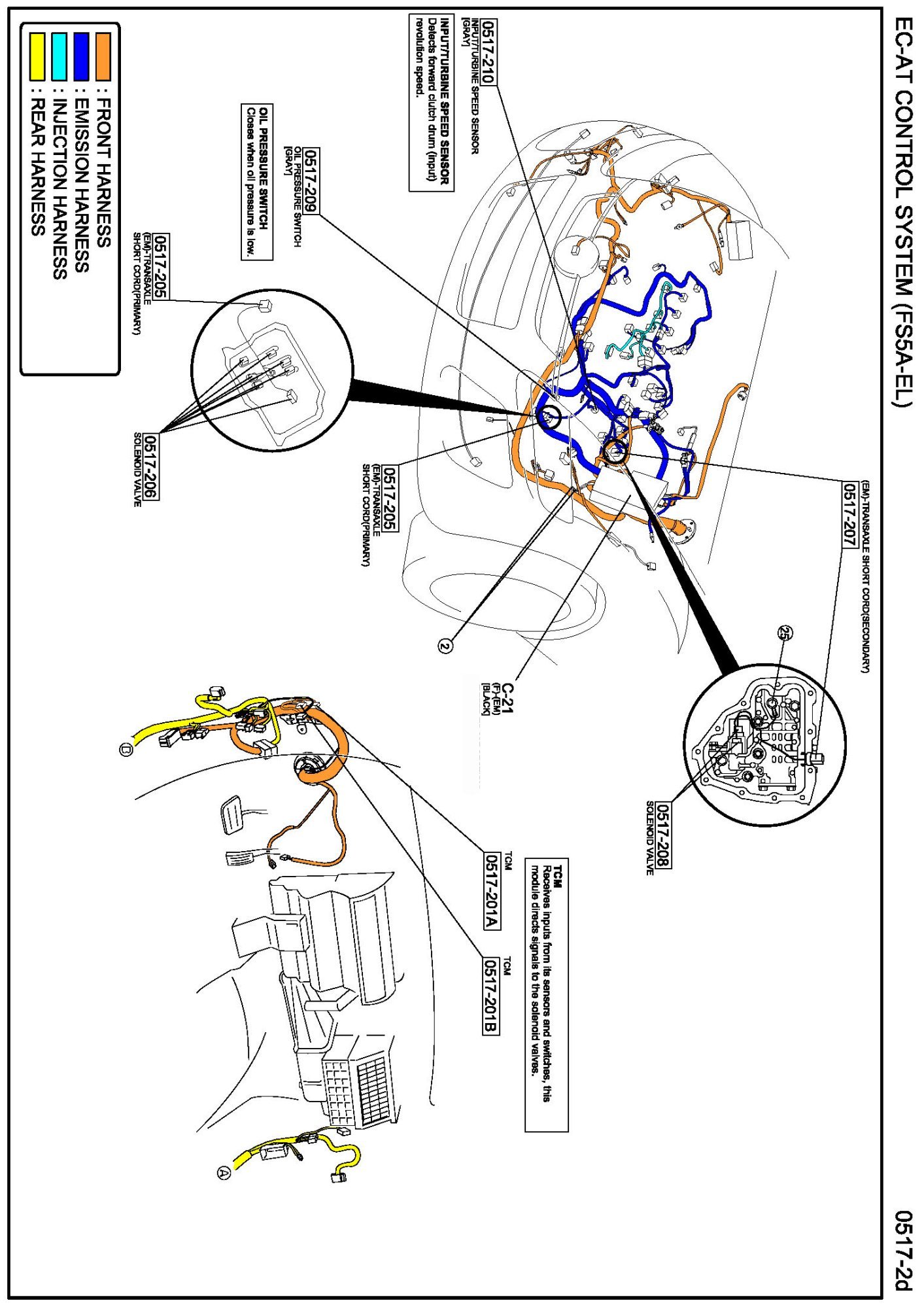

Routing View 0517-2d:

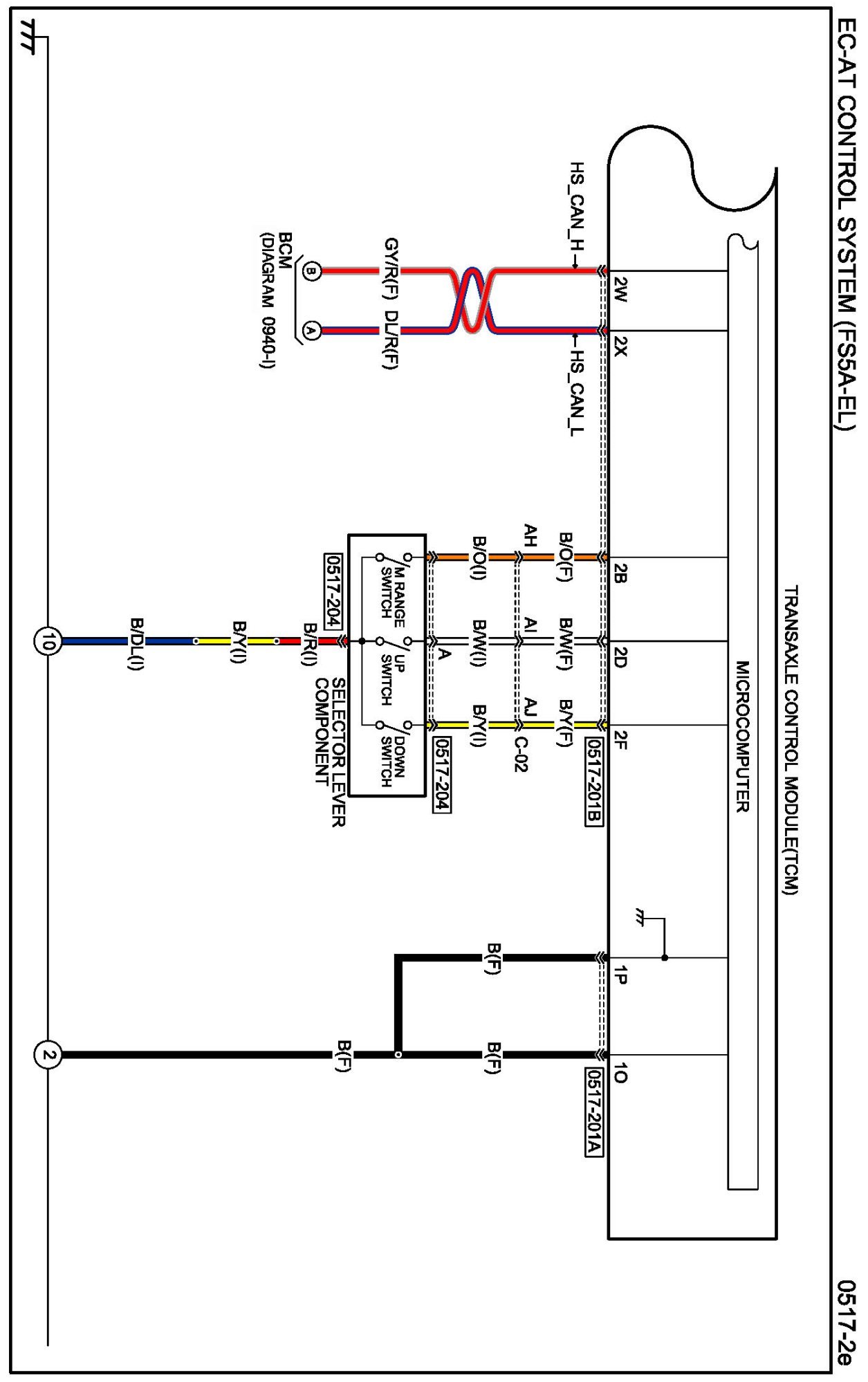

Diagram 0517-2e:

Connectors 0517-2e:

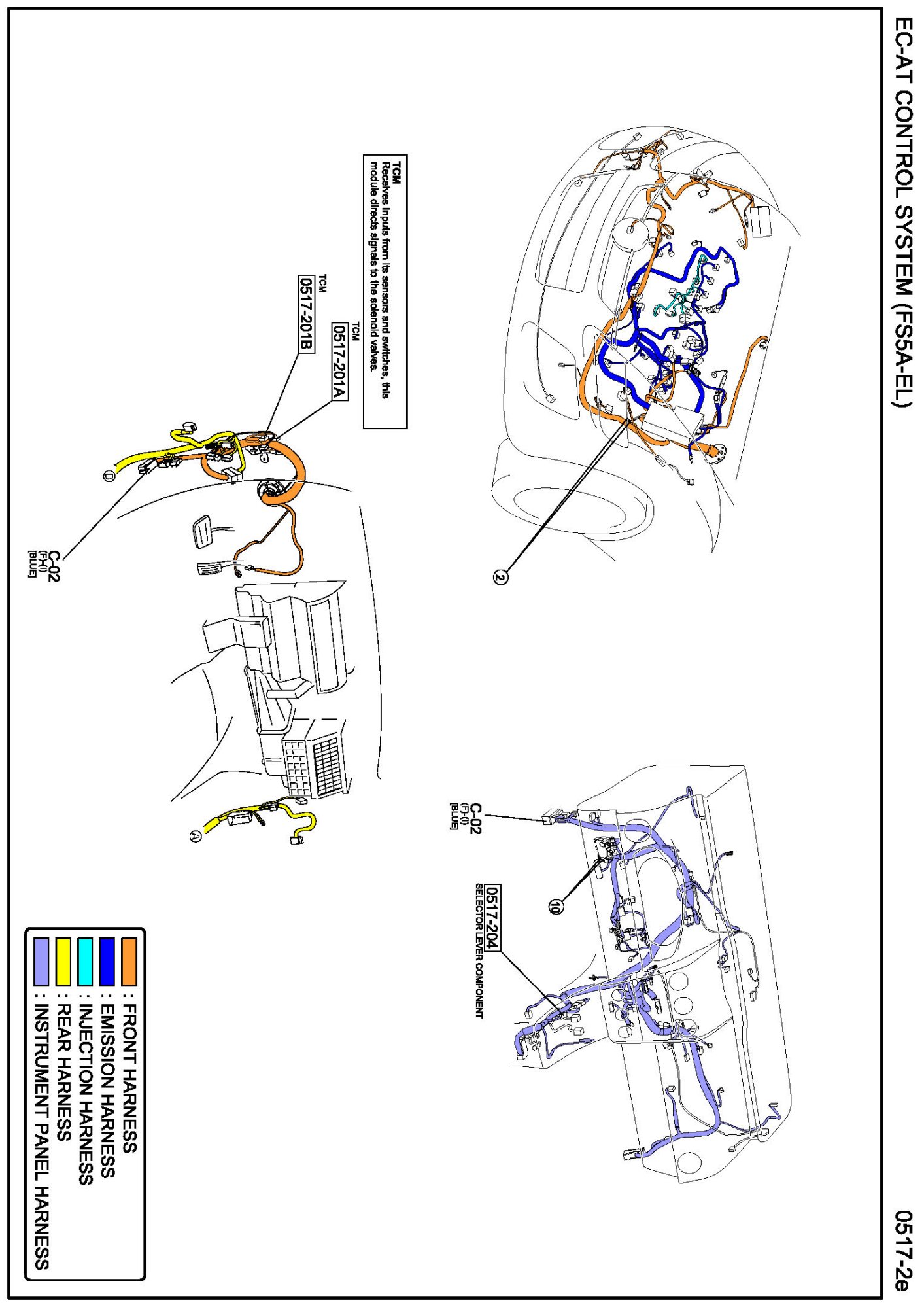

Routing View 0517-2e:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name Diagrams By Diagram Name
