Engine Oil Control Valve: Service and Repair

OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [L5]

1. Disconnect the negative battery cable.

2. Remove the plug hole plate. Service and Repair

3. Disconnect the wiring harness.

4. Remove the ignition coils. Service and Repair

5. Disconnect the ventilation hose from the cylinder head cover.

6. Remove the dipstick.

7. Remove the cylinder head cover. Service and Repair

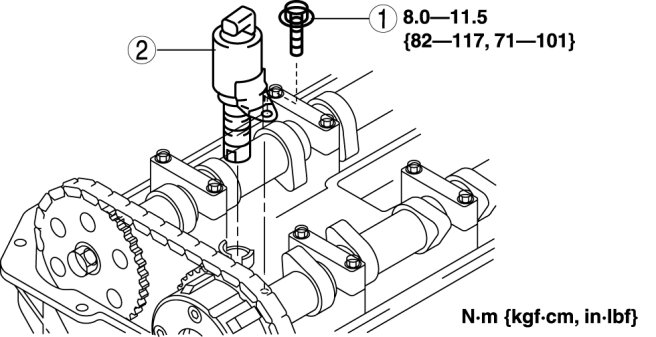

8. Remove in the order indicated in the table.

9. Install in the reverse order of removal.
