Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [L5]

1. Disconnect the negative battery cable.

2. Disconnect the MAF/IAT sensor connector.

3. Measure the resistance between the MAF/IAT sensor terminals D and E using an ohmmeter.






- If not as specified, replace the MAF/IAT sensor.
Service and Repair

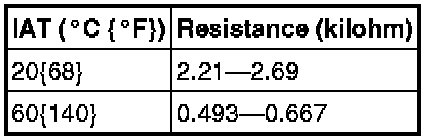

IAT sensor Specification
