Manifold Pressure/Vacuum Sensor: Service and Repair

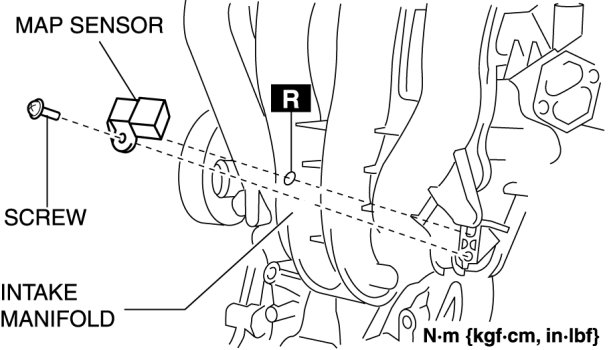

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [L5]

1. Disconnect the negative battery cable.

2. Disconnect the MAP sensor connector.

3. Remove the MAP sensor.






4. Install in the reverse order of removal.
