Emission Control Systems: Locations




EMISSION SYSTEM LOCATION INDEX [L5]

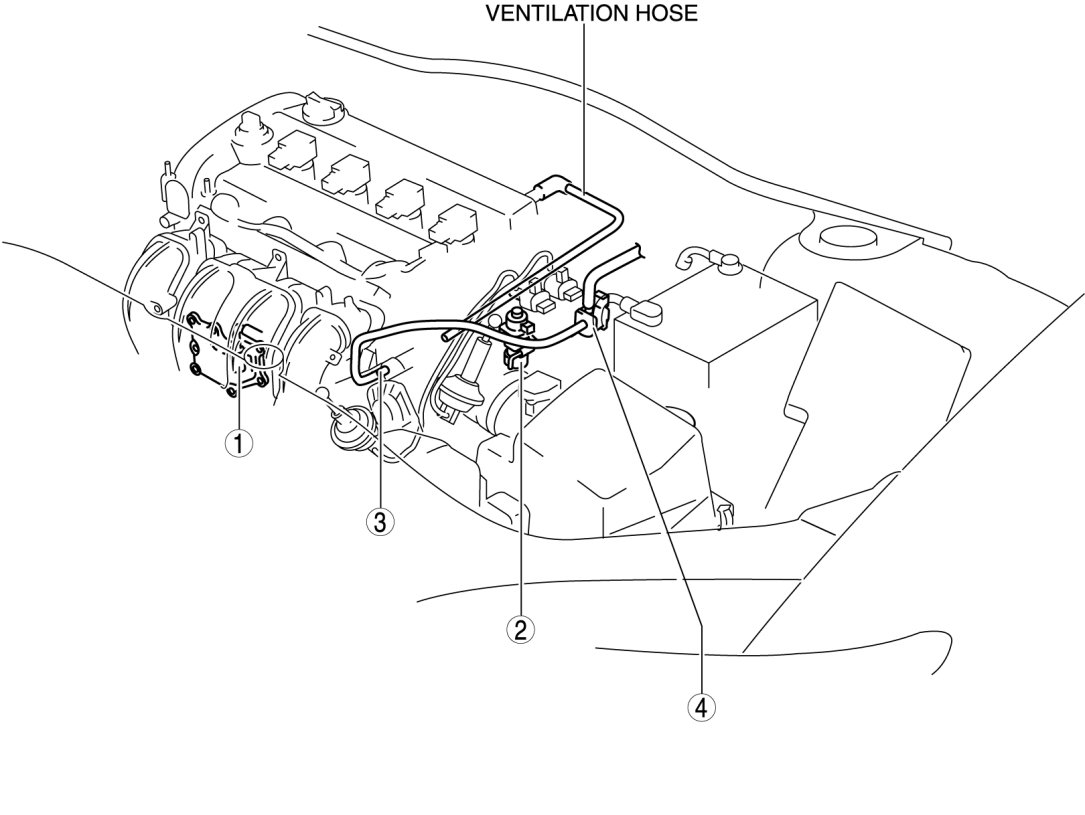

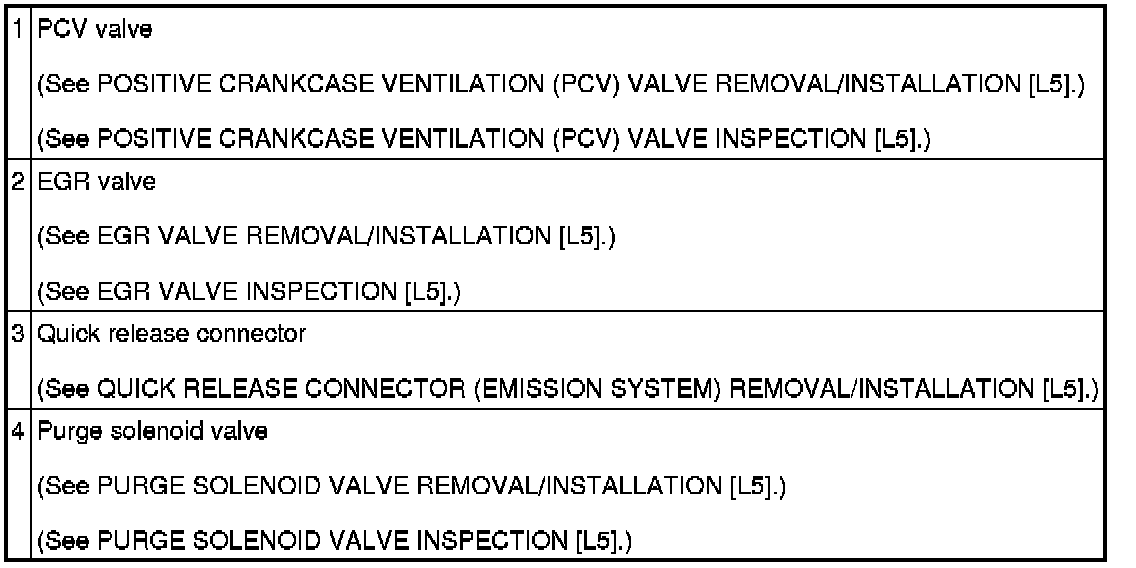

Engine Compartment Side

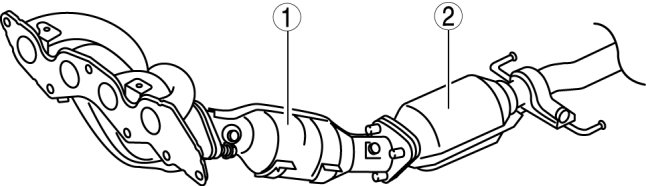

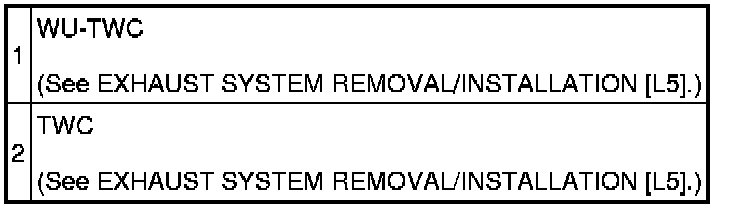

Exhaust System Side

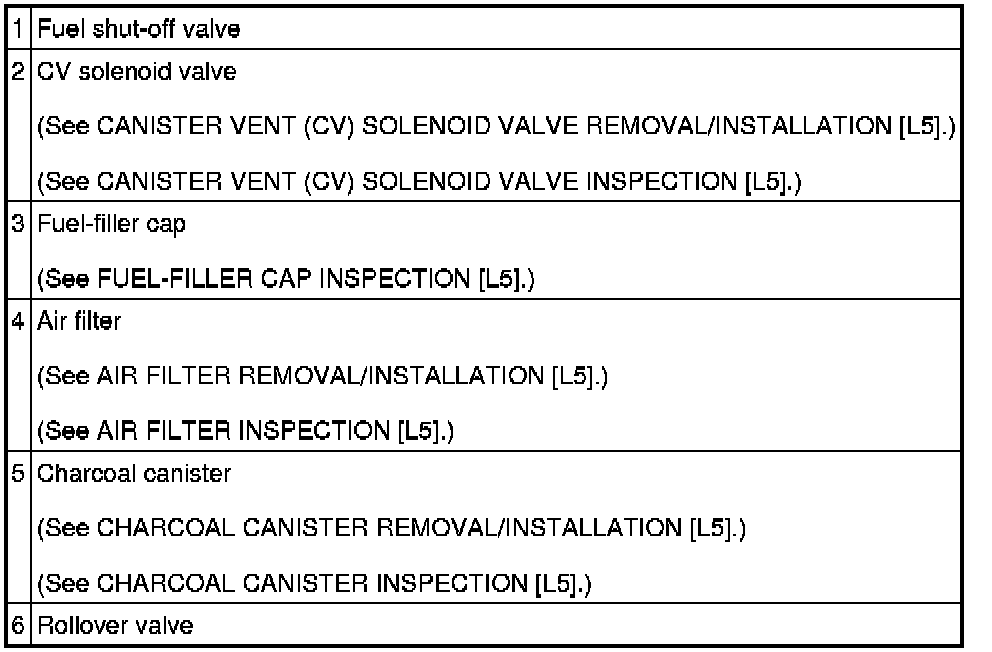

Fuel Tank Side
