Removal and Replacement

STARTER REMOVAL/INSTALLATION [L5]

WARNING:
- Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

- When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1. Disconnect the negative battery cable.

2. Remove the plug hole plate. Service and Repair

3. Remove the air hose, air cleaner and fresh air duct component. Service and Repair

4. Disconnect the manifold absolute pressure (MAP) sensor connector. Service and Repair

5. Remove the under cover.

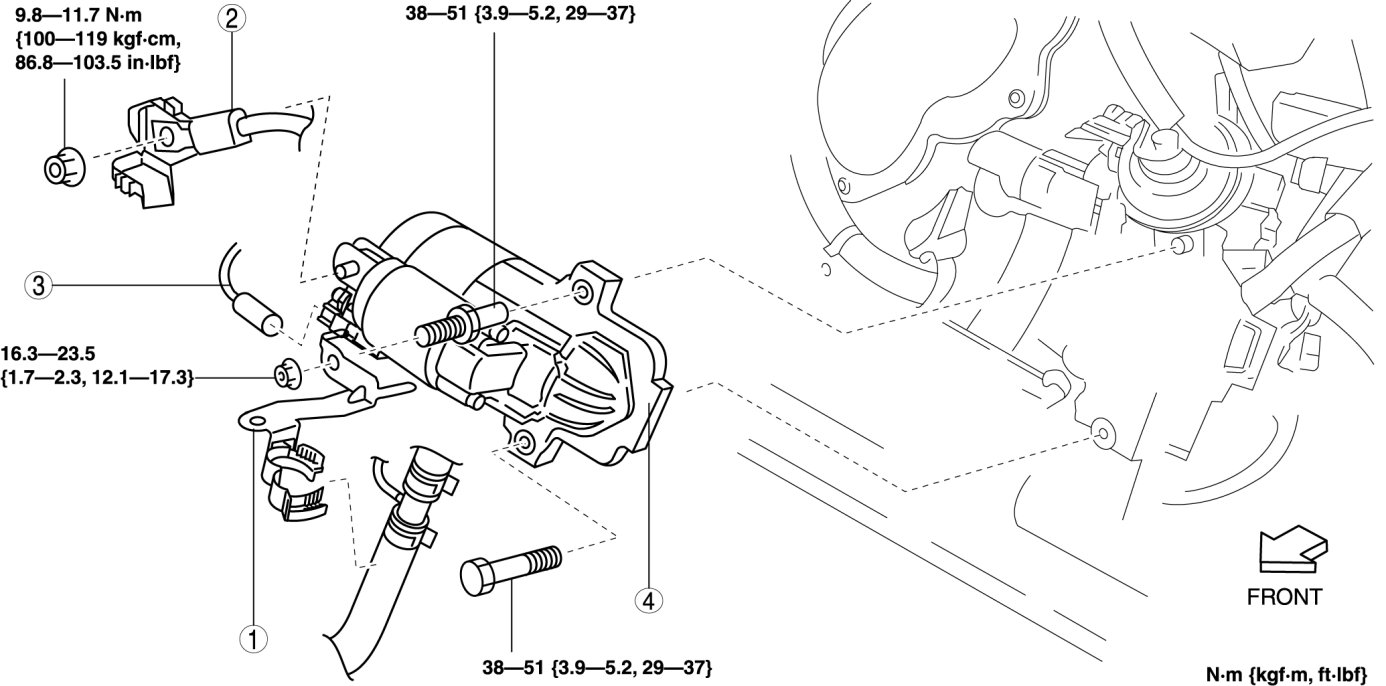

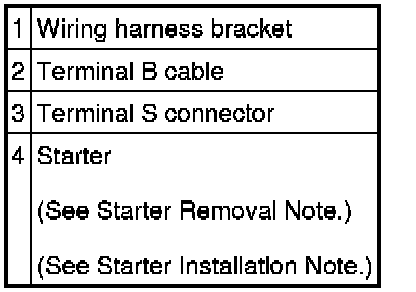

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.










Starter Removal Note

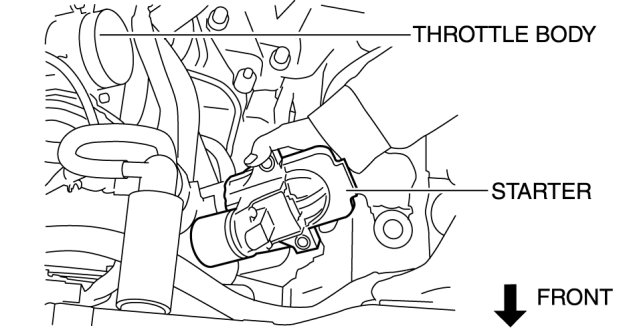

1. Remove the starter from above the engine compartment.






Starter Installation Note

NOTE:

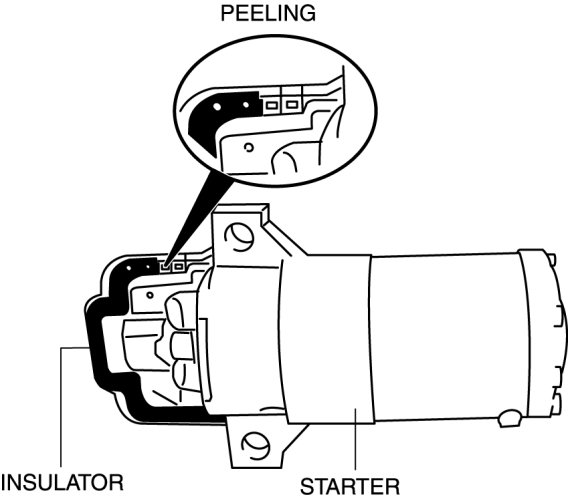

- If there is peeling on or damage to the insulator, attach a new insulator using the following procedure:






1. Peel off the insulator from the starter completely using a scraper.

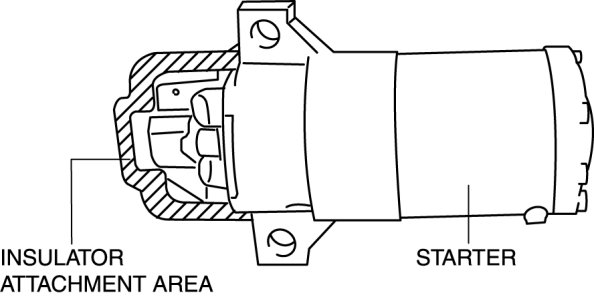

2. Degrease the insulator attachment area.

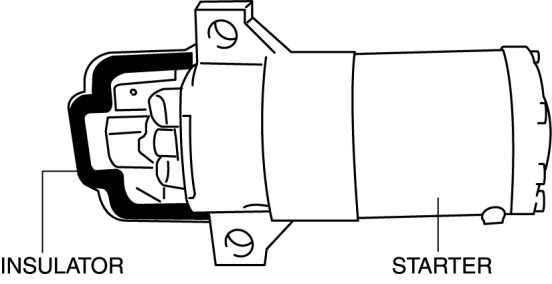

3. Attach a new insulator to the starter.
