Customized Function Setting Procedure - Advanced Keyless Entry and Start System

CUSTOMIZED FUNCTION SETTING PROCEDURE [ADVANCED KEYLESS ENTRY AND START SYSTEM]

NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the CUSTOMIZED FUNCTION SETTING PROCEDURE.

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
When using the IDS (laptop PC)

- Select the "Module Programming".

3. Then, select items from the screen menu in the following order.

- Select "Programmable Parameters".
- Select "RKE".

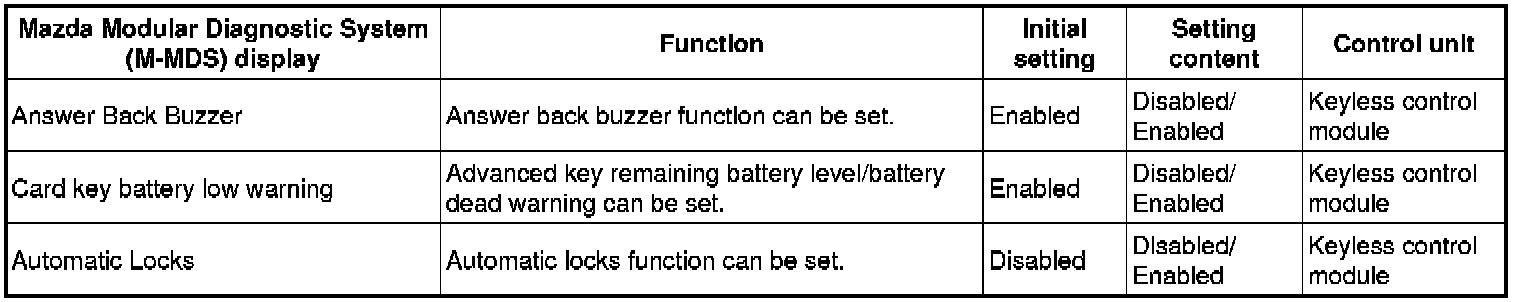

4. Select an item name, and then select option.
