Keyless Antenna Removal/Installation - Advanced Keyless Entry and Start System

KEYLESS ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND START SYSTEM]

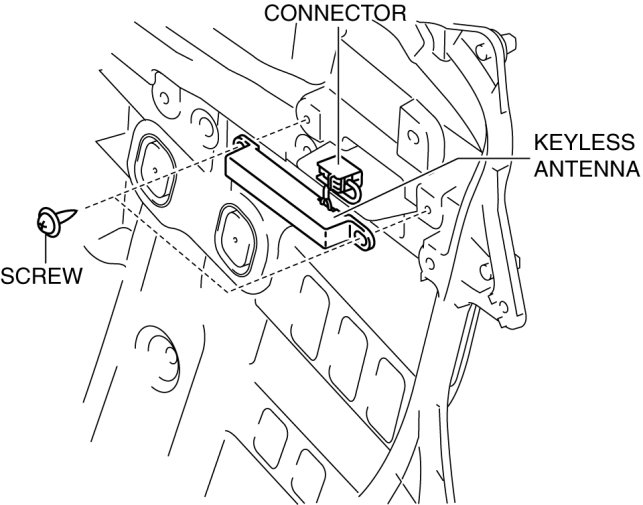

Exterior, LF/RF

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

4. Remove the screws.






5. Disconnect the connector, then remove the keyless antenna.

6. Install in the reverse order of removal.

Exterior, Rear

1. Disconnect the negative battery cable.

2. Remove the screws.






3. Disconnect the connector, then remove the keyless antenna.

4. Install in the reverse order of removal.

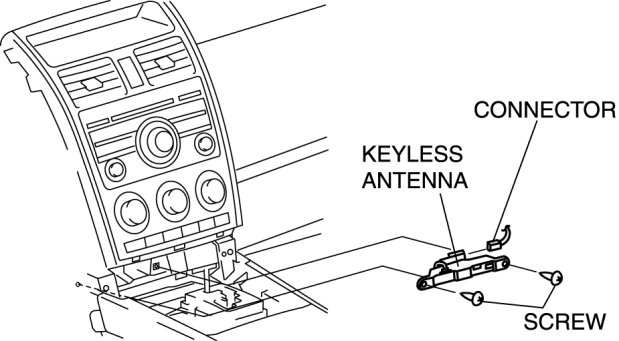

Interior, Front

Center

1. Disconnect the negative battery cable.

2. Remove the decoration panel. Decoration Panel Removal/Installation

3. Remove the front console box mat. Front Console Box Mat Removal/Installation

4. Remove the indicator panel. Indicator Panel Removal/Installation

5. Remove the front console box. Front Console Box Removal/Installation

6. Disconnect the connector, then remove the screws.






7. Remove the keyless antenna.

8. Install in the reverse order of removal.

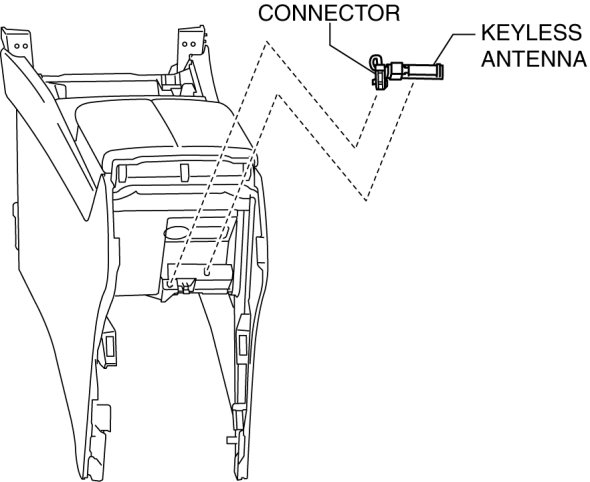

Interior, Middle

1. Disconnect the negative battery cable.

2. Remove the console cover. Console Cover Removal/Installation

3. Remove the clips.






4. Disconnect the connector, then remove the keyless antenna.

5. Install in the reverse order of removal.

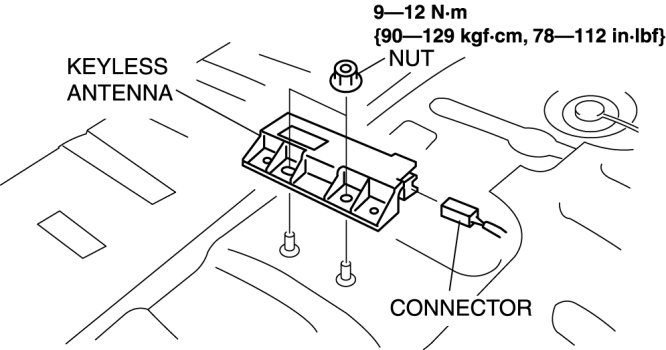

Interior, Rear

1. Disconnect the negative battery cable.

2. Remove the trunk box.

3. Remove the third-row seat. Third-Row Seat Removal/Installation

4. Partially peel back the floor covering.

5. Remove the nuts.






6. Disconnect the connector, then remove the keyless antenna.

7. Install in the reverse order of removal.
