Memory Positioning Systems: Description and Operation

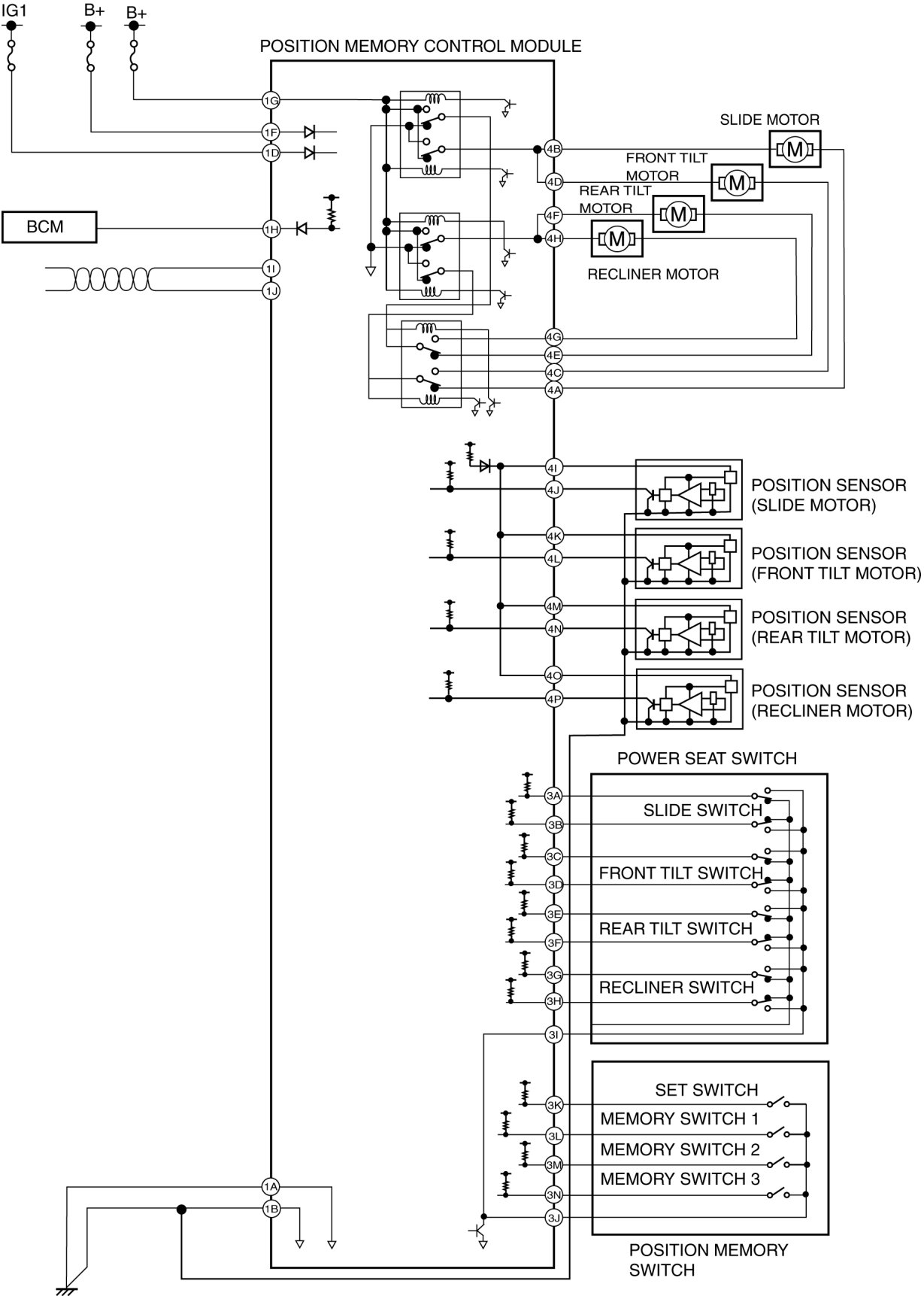

SYSTEM WIRING DIAGRAM [POSITION MEMORY CONTROL SYSTEM]
