Home >> Mazda >> 2010 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> D-01 (Data Link Connector-2)

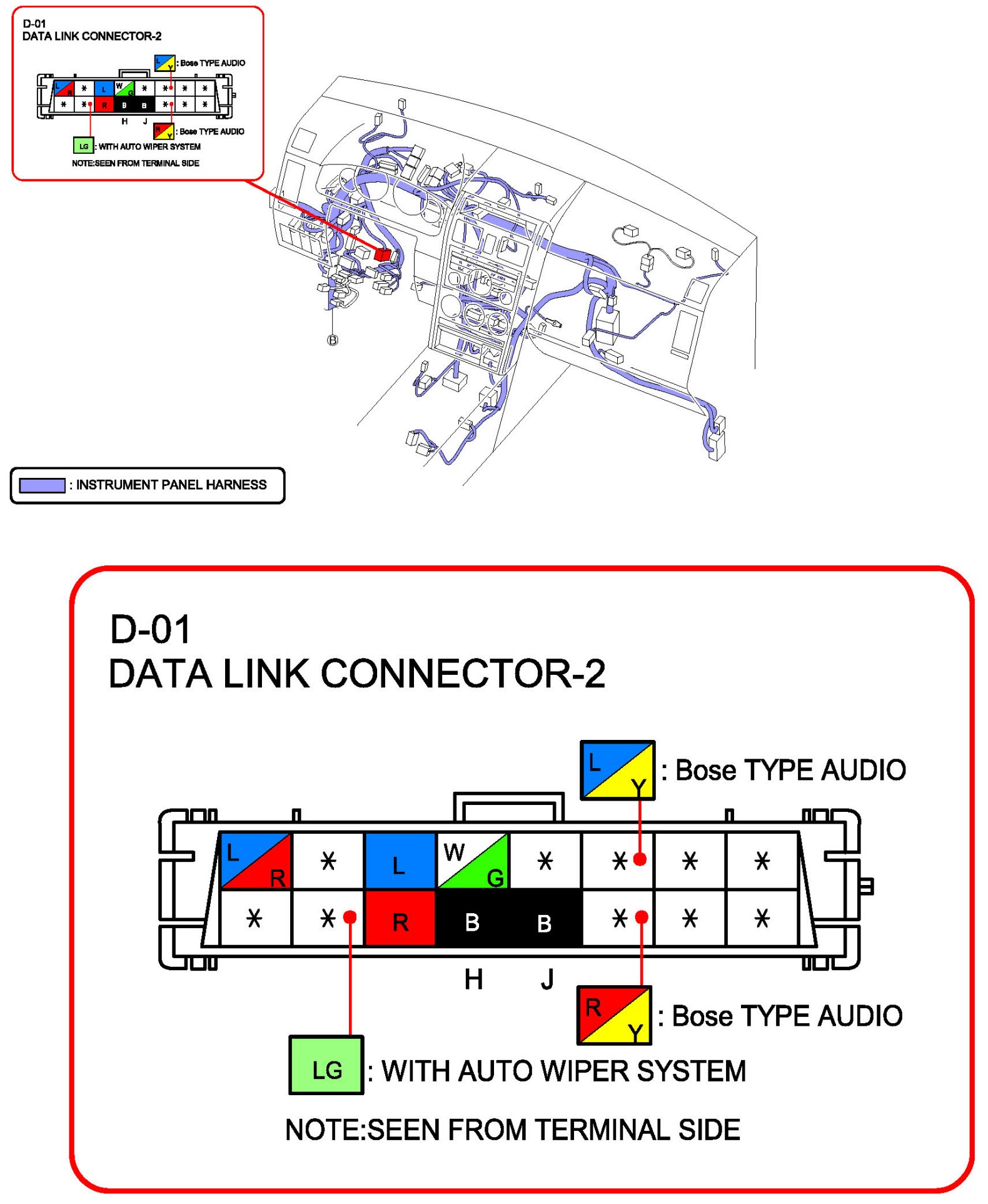

D-01 (Data Link Connector-2)

Data Link Connector-2:
