Home >> Mazda >> 2010 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> F-02 Fuse Block

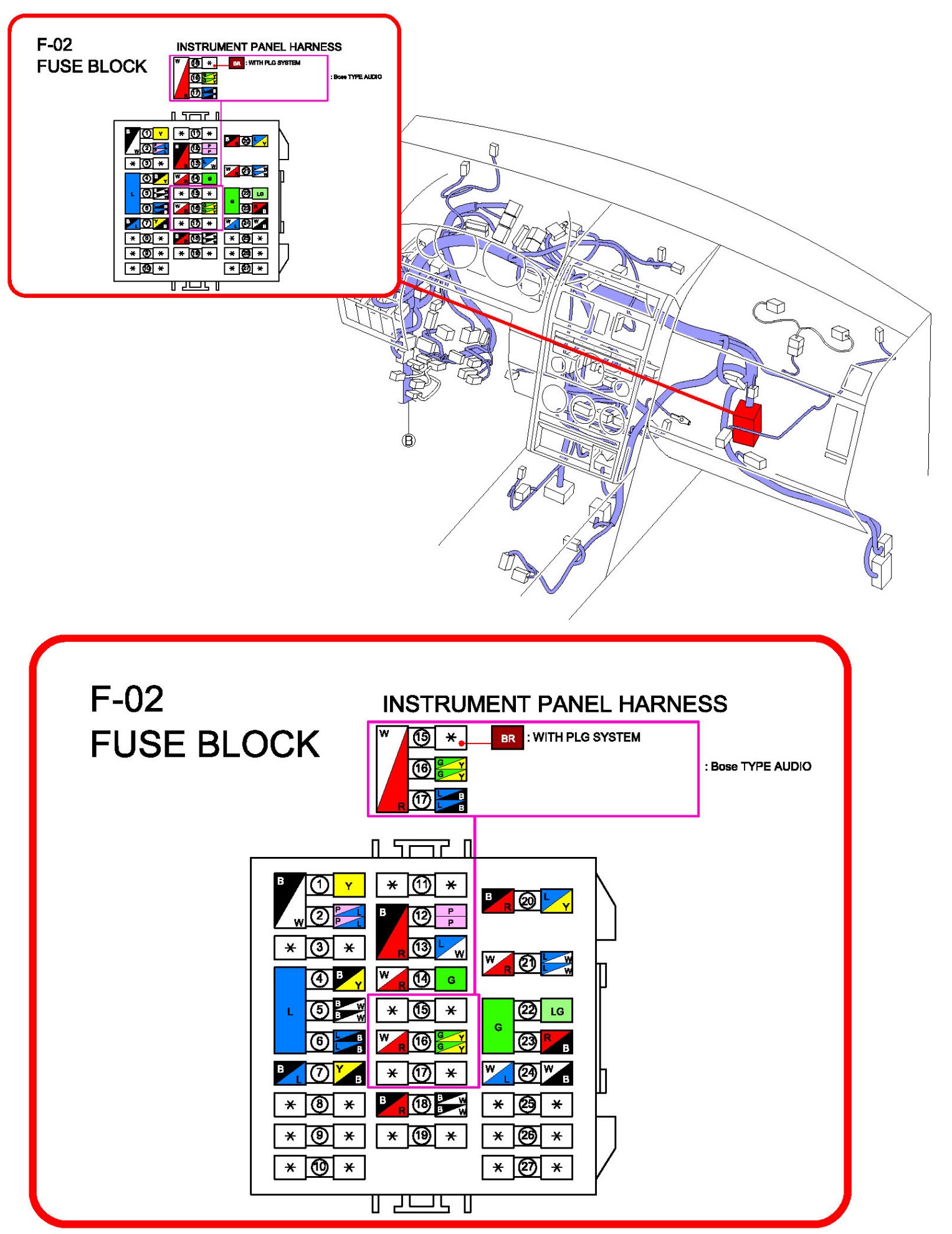

F-02 Fuse Block

Fuse Block:
