Front Climate Control Unit
Front Climate Control Unit

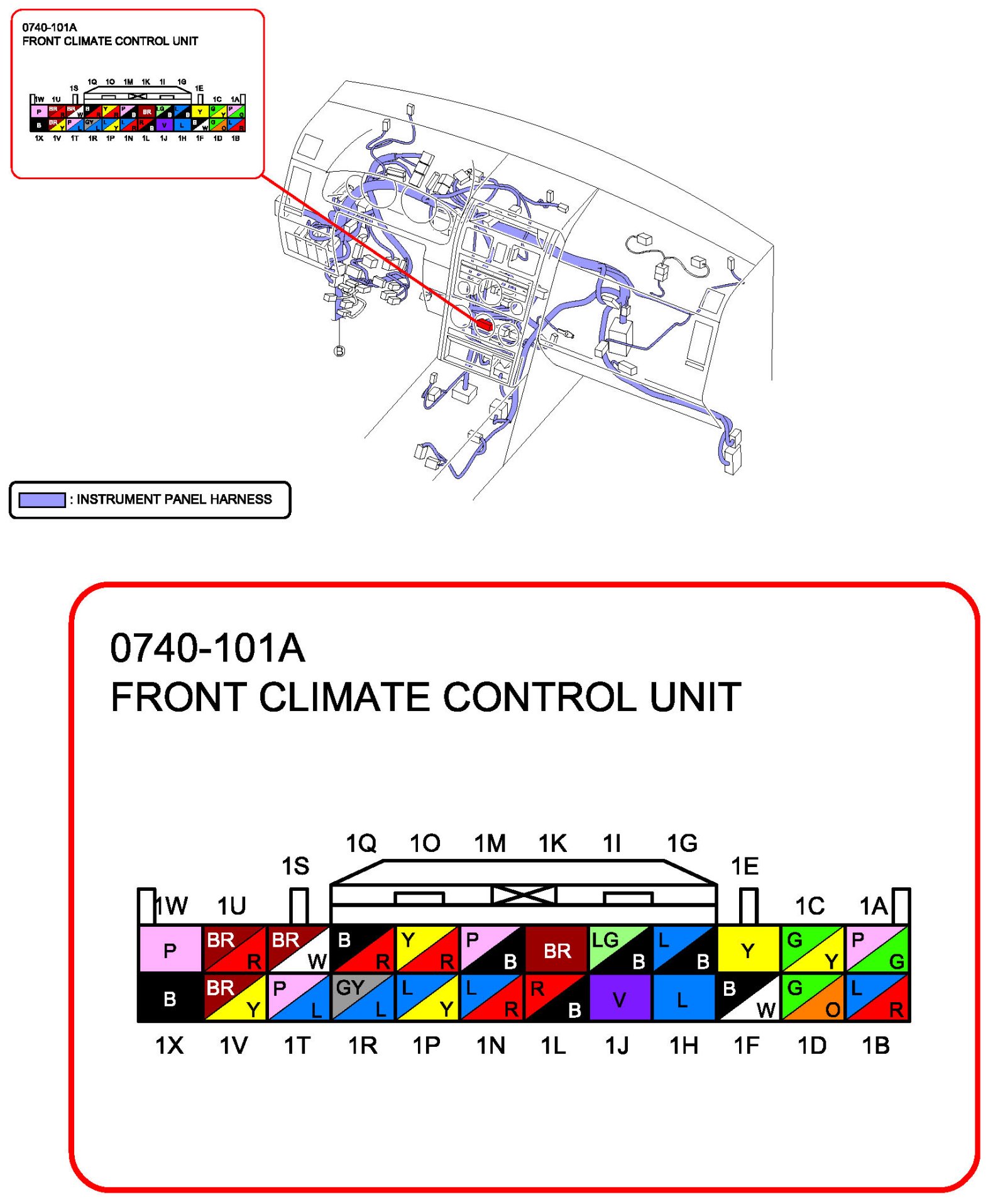

Front Climate Control Unit:

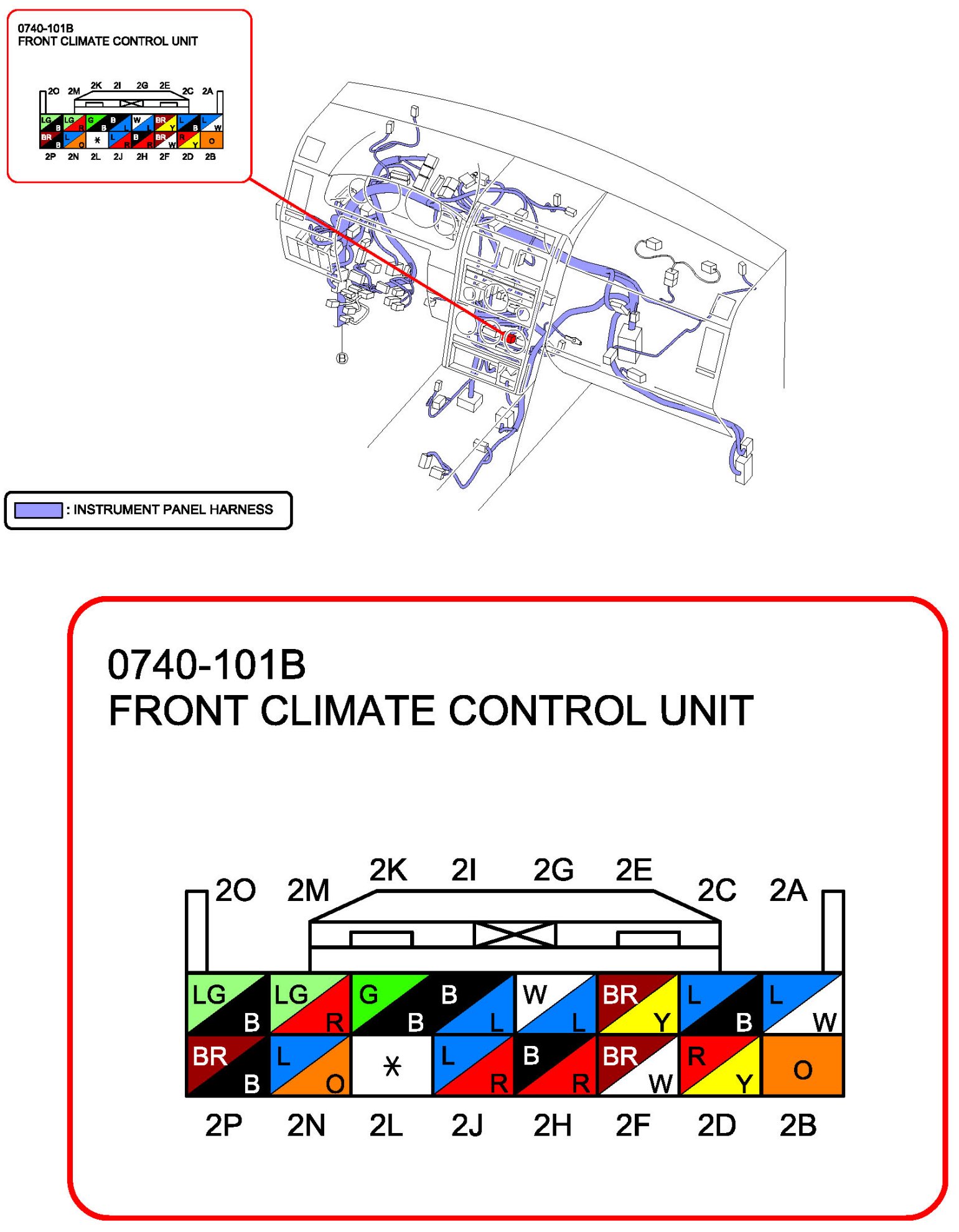

Front Climate Control Unit:

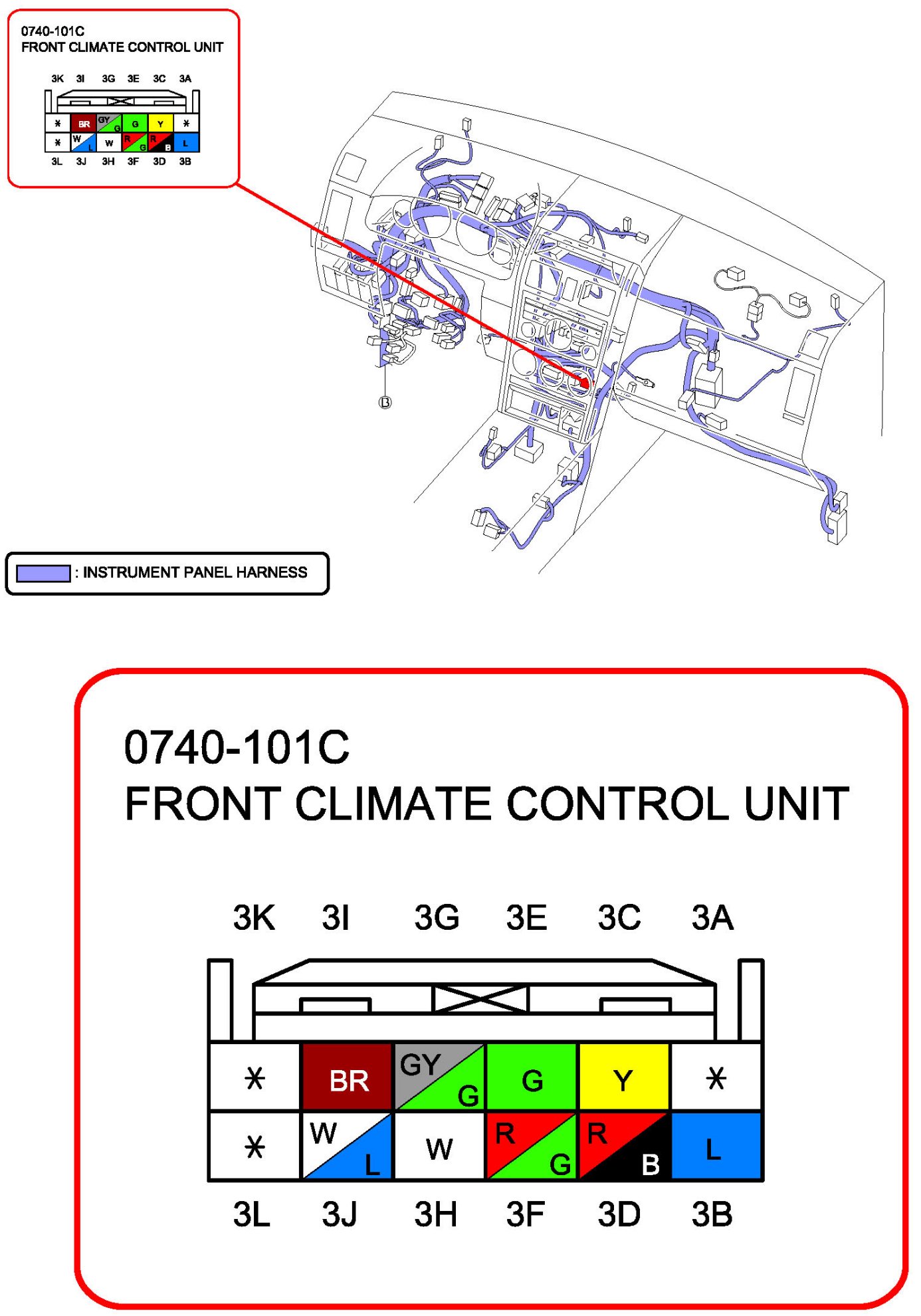

Front Climate Control Unit:
