Home >> Mazda >> 2010 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No.4 No Temperature Control With Front Climate Control Unit

No.4 No Temperature Control With Front Climate Control Unit




NO.4 NO TEMPERATURE CONTROL WITH FRONT CLIMATE CONTROL UNIT

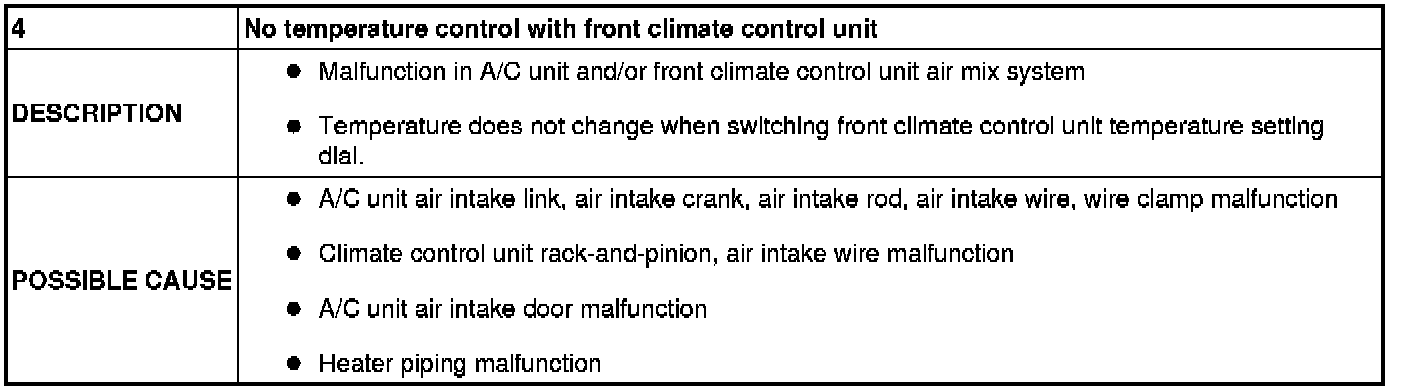

Description/Possible Cause:





Diagnostic procedure

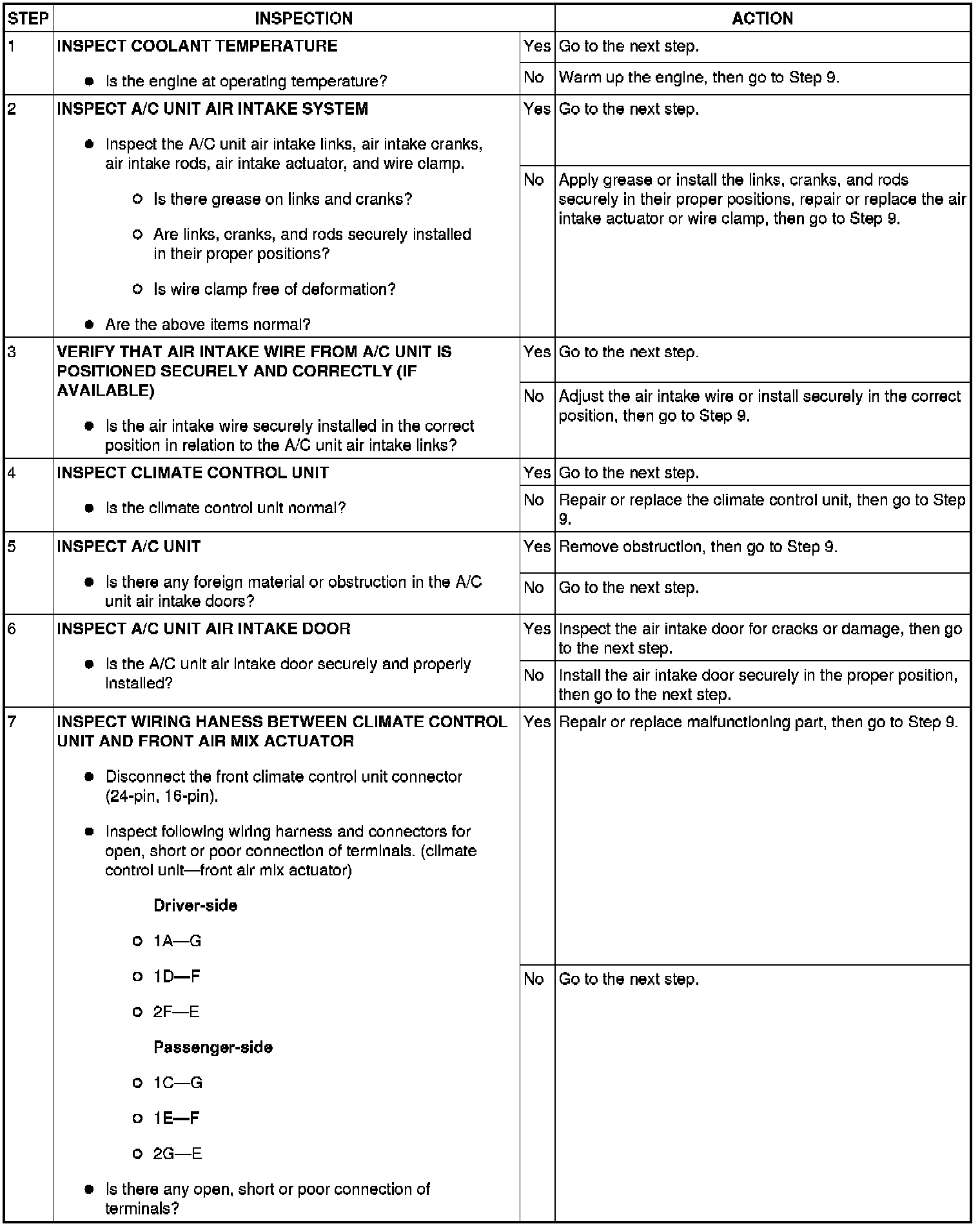

Step 1-Step 7:

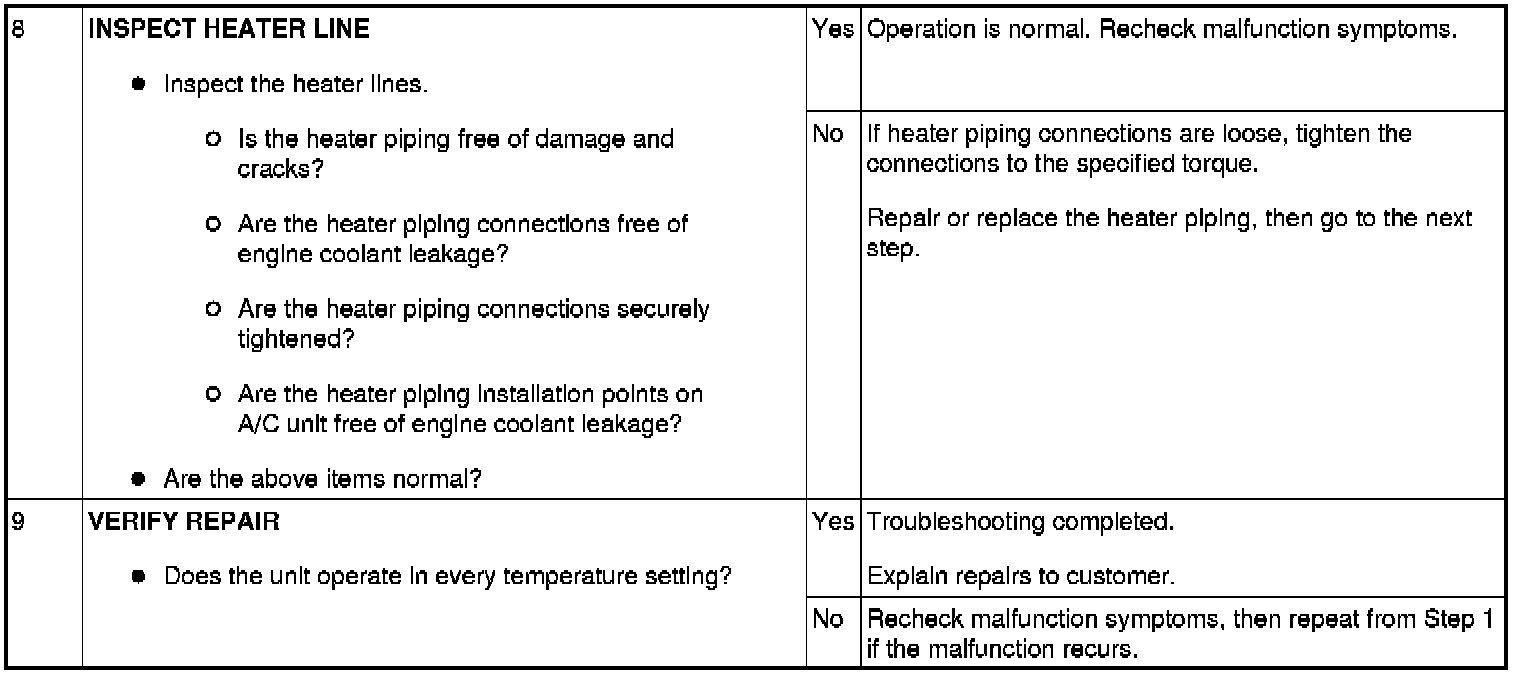

Step 8-Step 9:
