Operation CHARM: Car repair manuals for everyone.
Home >> Mazda >> 2010 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Locations >> Component Locations >> Auto Light-Off Control Module/Auto Light/Wiper Control Module

Auto Light-Off Control Module/Auto Light/Wiper Control Module

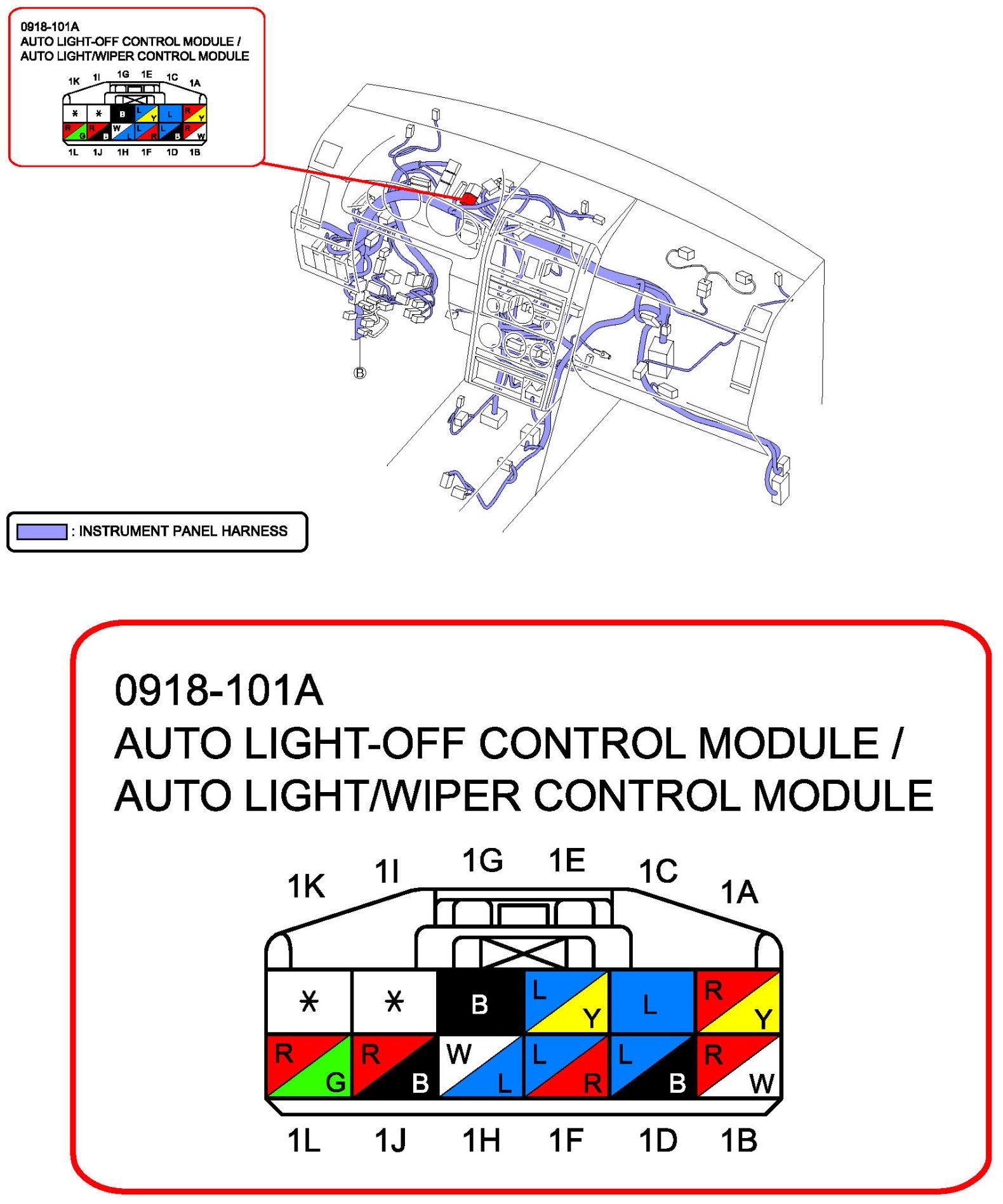

Auto Light-Off Control Module / Auto Light / Wiper Control Module:

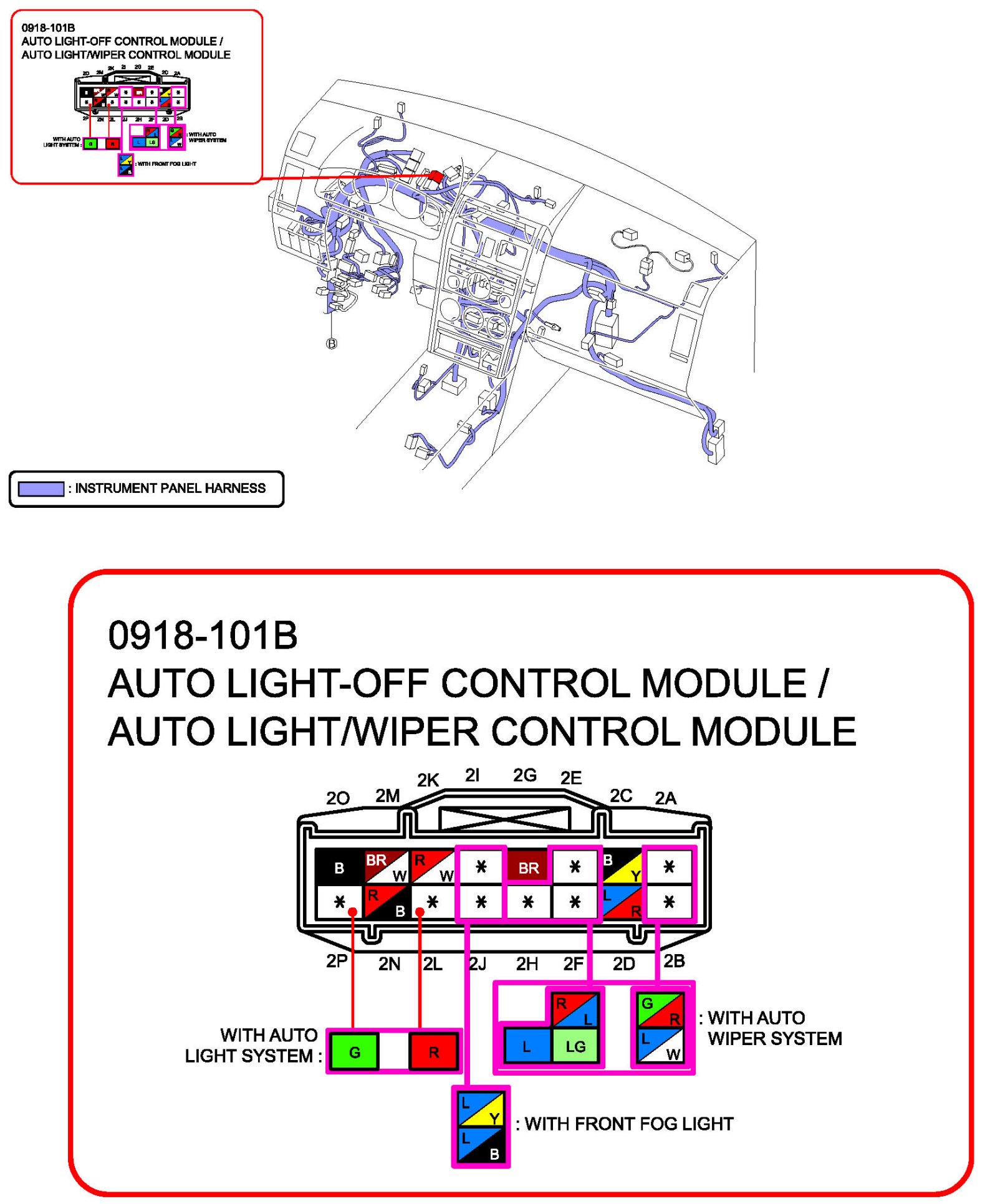

Auto Light-Off Control Module / Auto Light / Wiper Control Module:
