Mazda
>>
2010
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
Relay Box: Application and ID
Main Fuse Block:

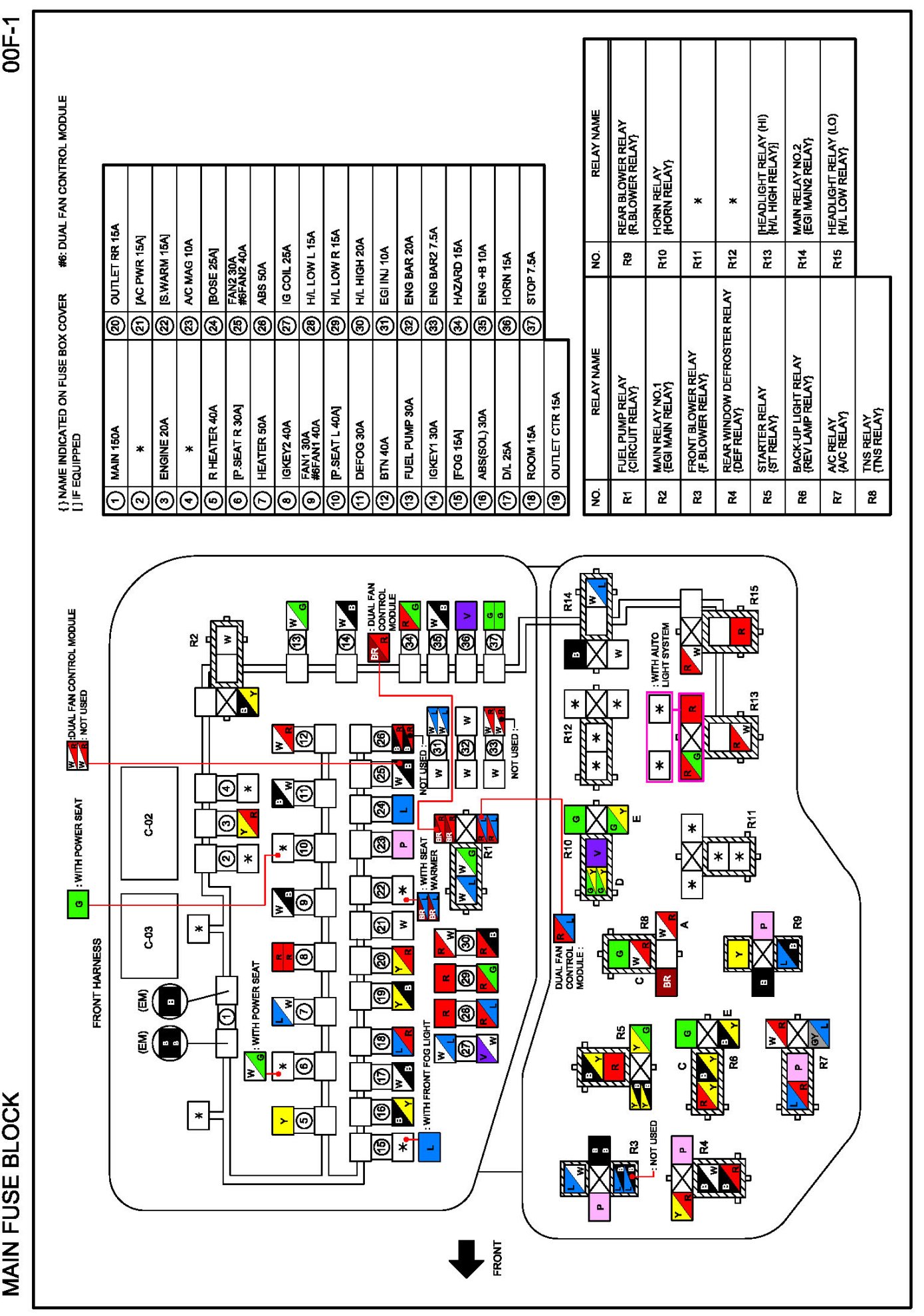

Diagram 00F-1:
Fuse And Relay Box <- Single Fan Control Module Relay Box <- Dual Fan Control Module:

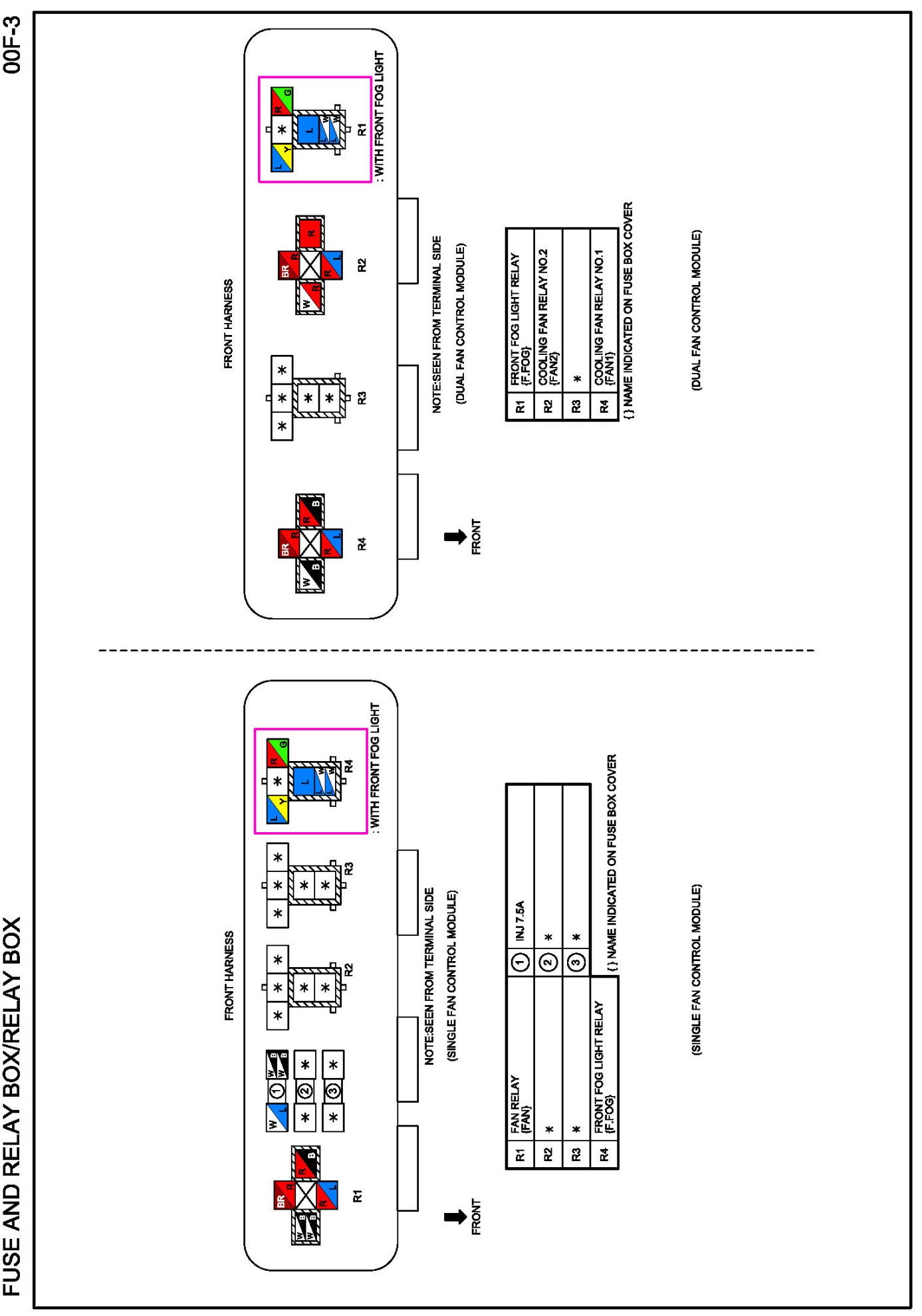

Diagram 00F-3:
