Oxygen Sensor
>>
Locations
>>
Connector Locations
Connector Locations
Front HO2S (LH):
Front HO2S (RH):

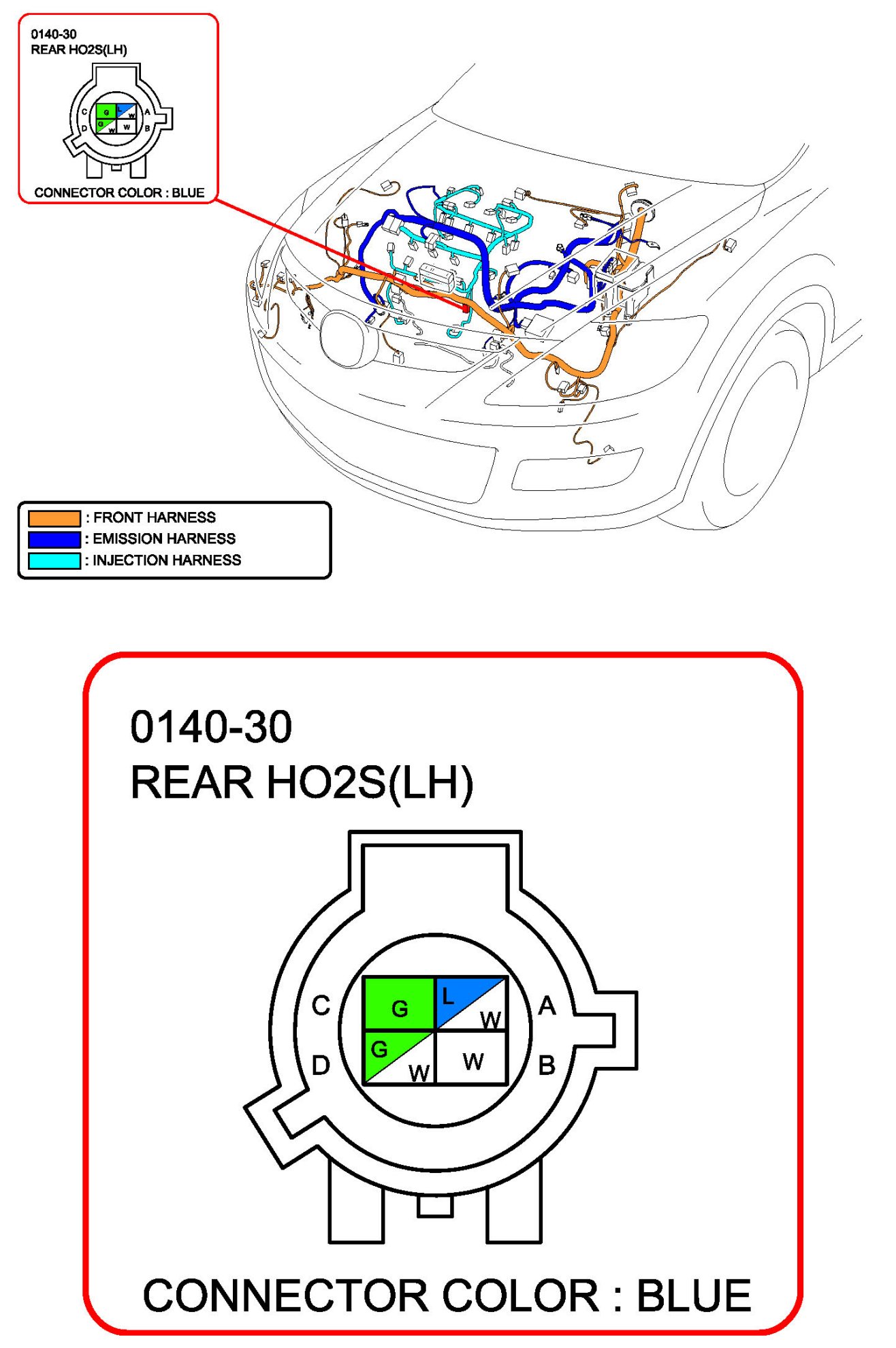

Rear HO2S (LH):

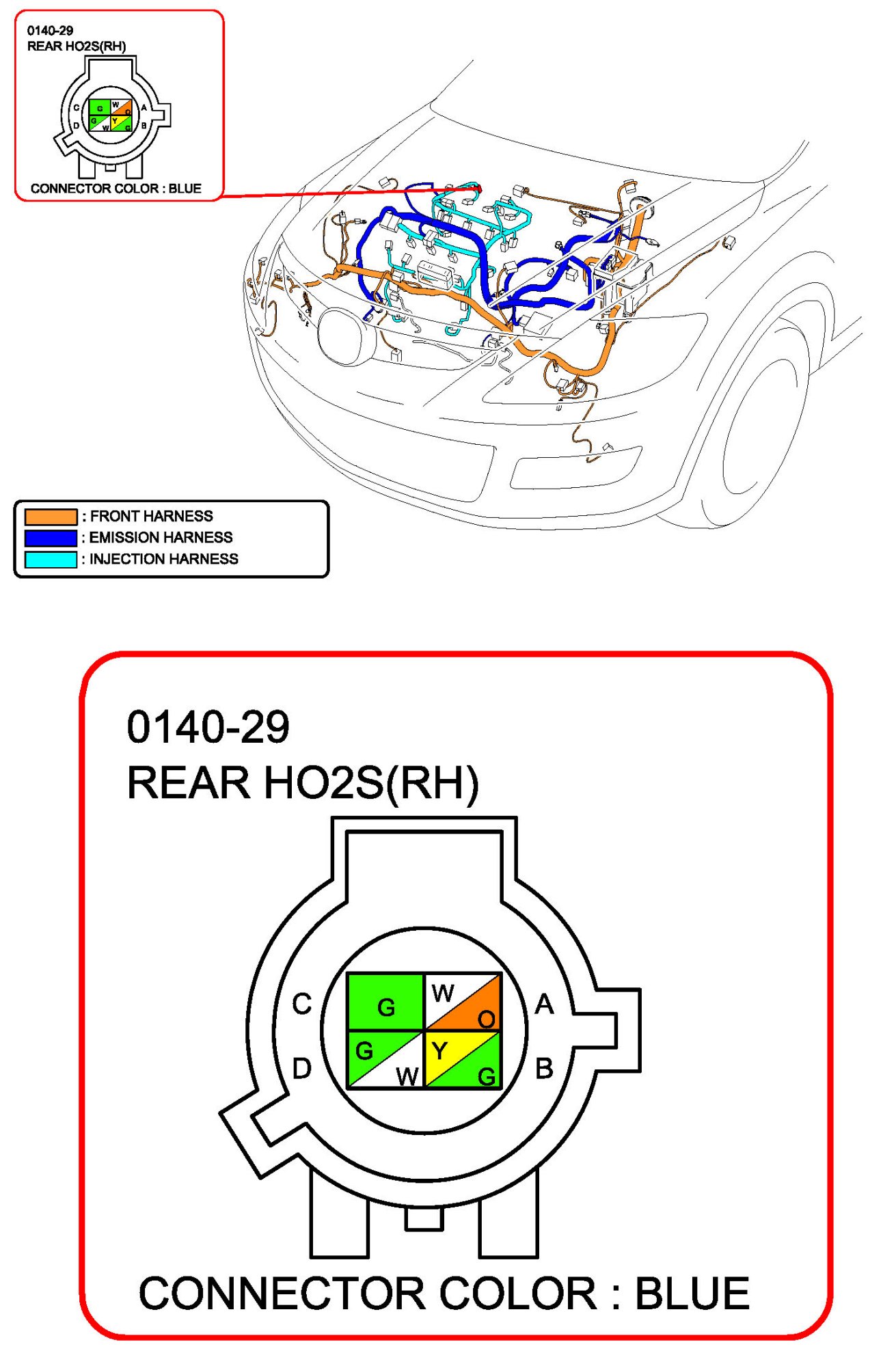

Rear HO2S (RH):
