Typical Diagnostic Reference Values

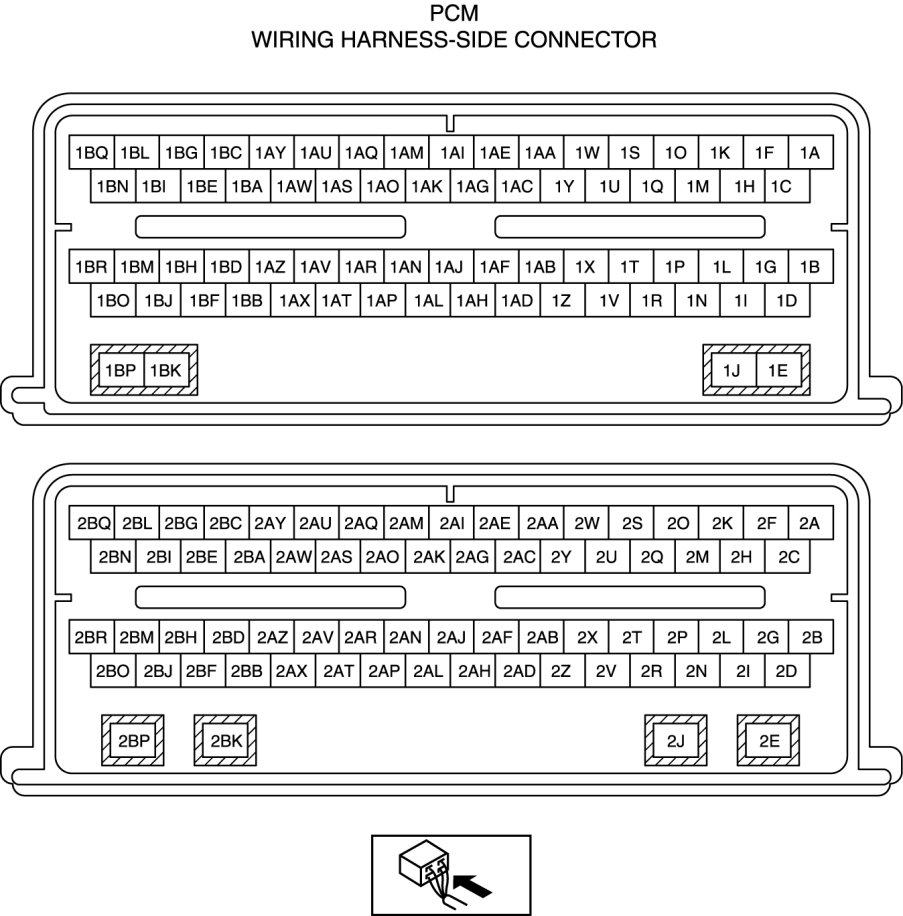

PCM INSPECTION [MZI-3.7]

Typical Diagnostic Reference Values

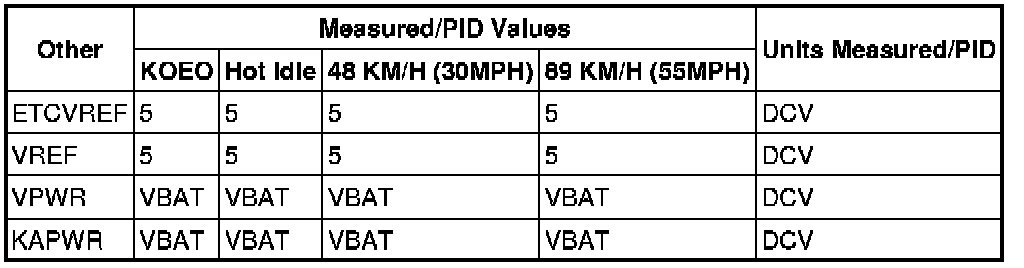

Typical Diagnostic Reference Values (Part 1):

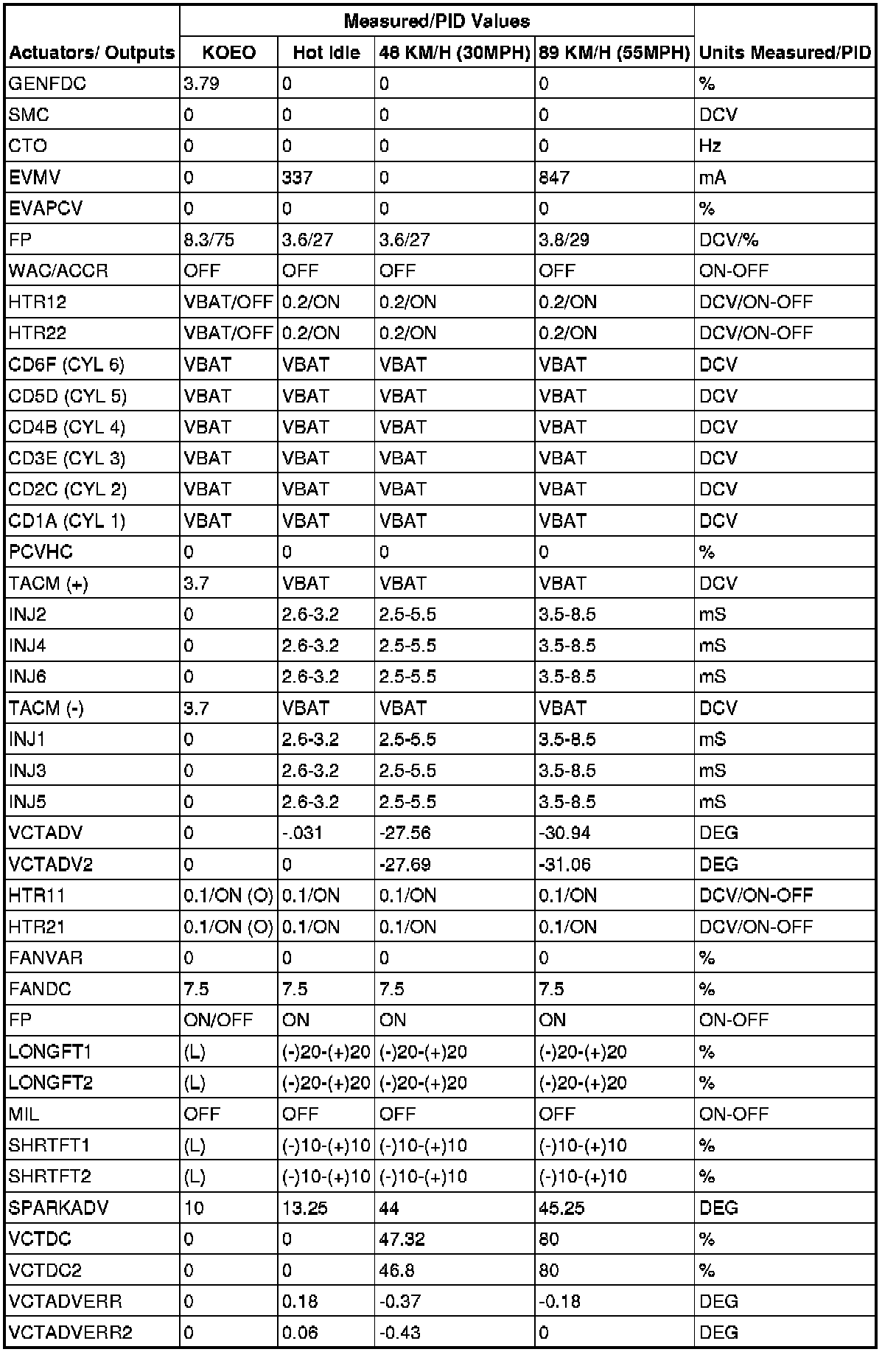

Typical Diagnostic Reference Values (Part 2):





Typical Diagnostic Reference Values (Part 3):
