PID/Data Monitor Table - Standard Deployment Control System
PID/Data Monitor Table - Standard Deployment Control System

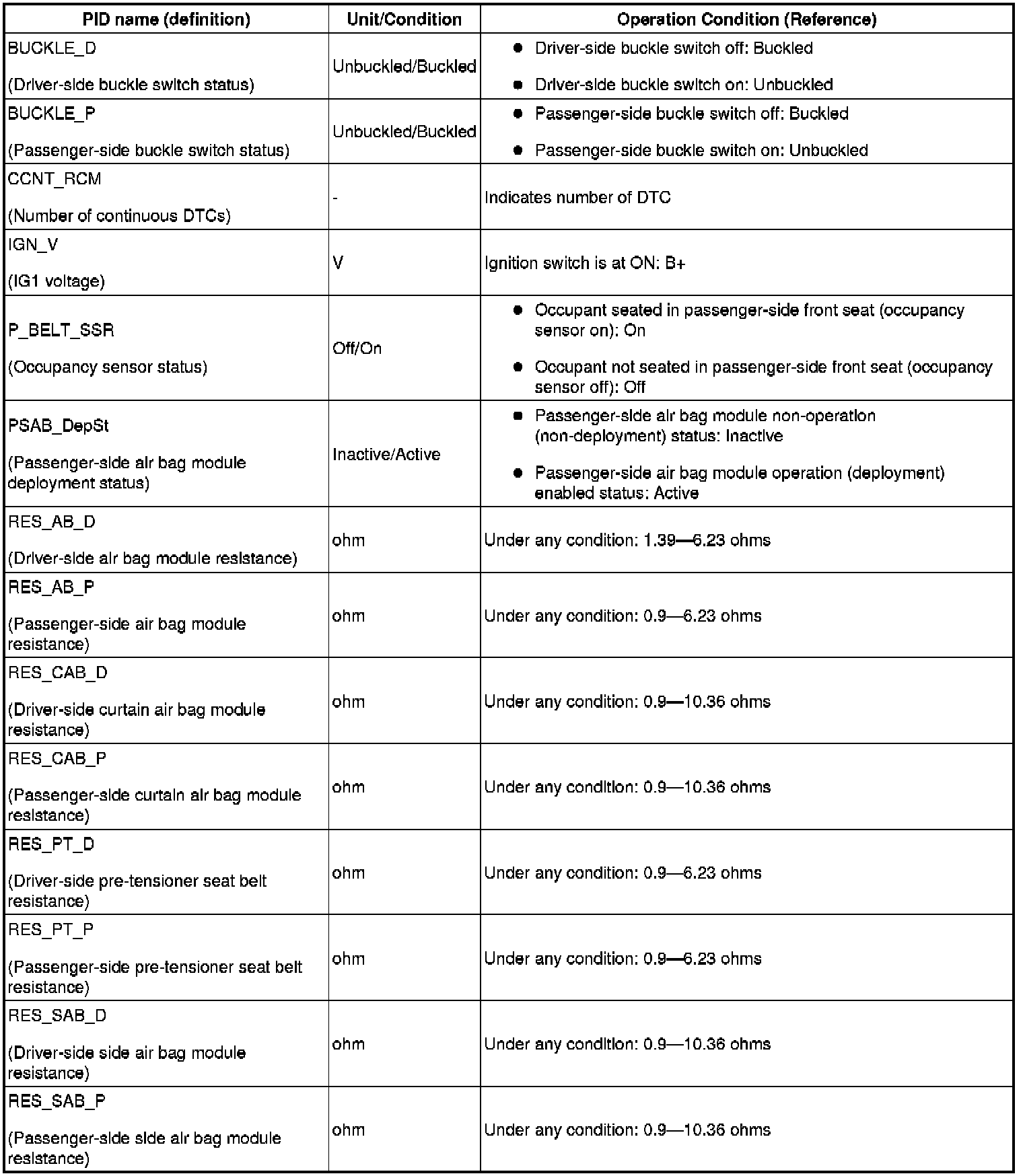

PID/DATA MONITOR TABLE [STANDARD DEPLOYMENT CONTROL SYSTEM]
PID/DATA Monitor Table:
