Ride Height

RIDE HEIGHT

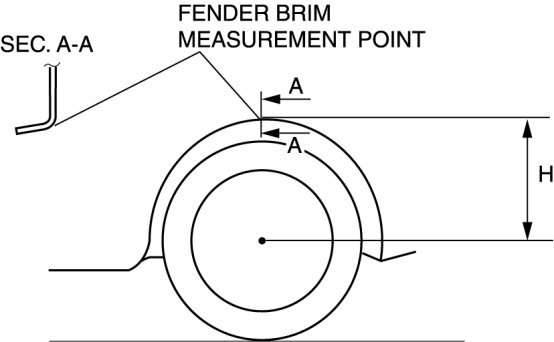

Measure height H from the center of the wheel to the fender brim.






Verify that the difference between the left and right dimension H is within the specification. If it exceeds the specification, repeat the Step 2-7.

Standard 10 mm {0.39 in} or less
