Cylinder Head Assembly

Cylinder Head Tightening Torque

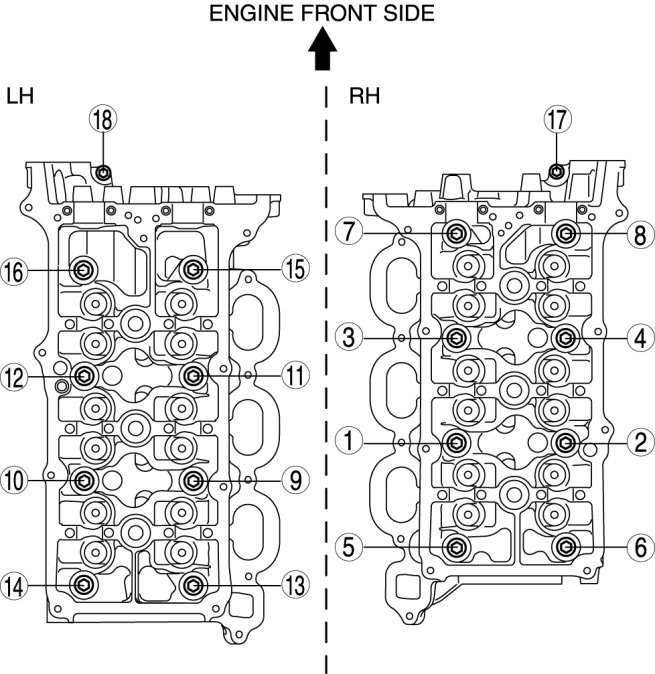

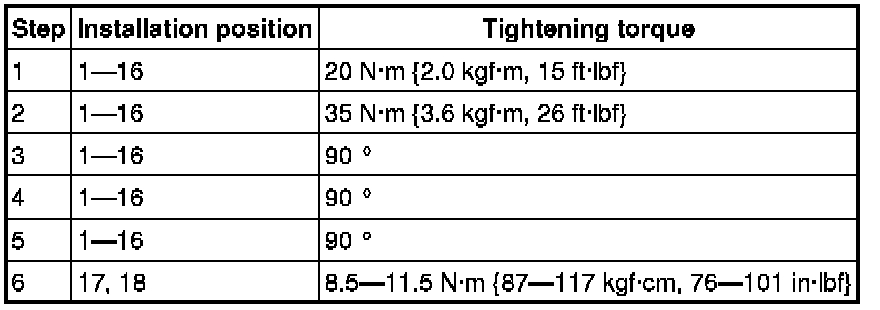

1. Tighten the cylinder head bolts in the order in 6 steps in the order shown in the figure.












Head Bolt Reuse/Replace

Note:
- The cylinder head bolts must be replaced with new bolts. The bolts are torque-to-yield designed and cannot be reused.

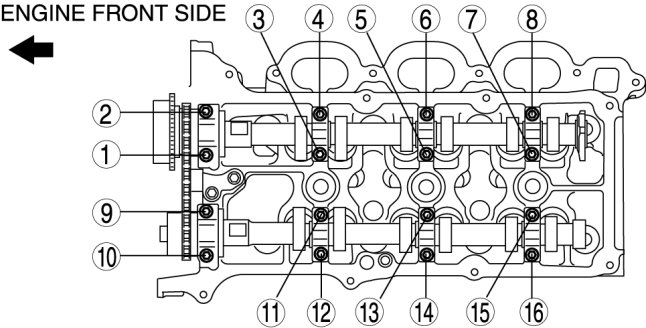

Camshaft Bearing Cap






Tightening Torque
- 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}




Intake Manifold Specifications

Exhaust Manifold Specifications

Camshaft Sprocket Specifications
