Intake Manifold

Intake Manifold

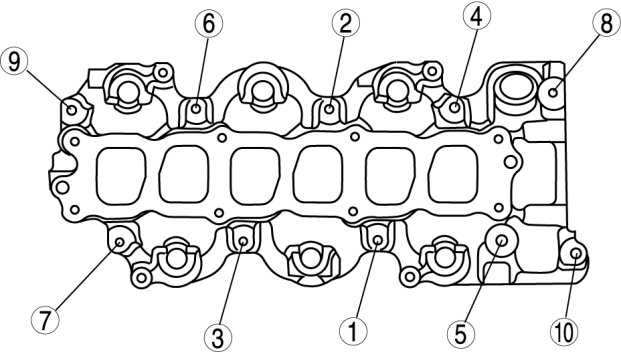

Tighten the intake manifold installation bolts in the order shown.






Intake manifold installation bolt tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}

Dynamic Chamber Installation Note

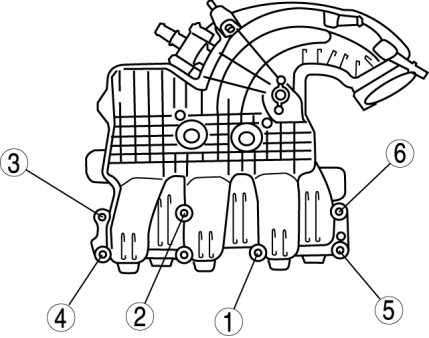

Tighten the dynamic chamber installation bolts in the order shown.






Dynamic chamber installation bolt tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
