Exhaust Manifold

Exhaust Manifold (RH)

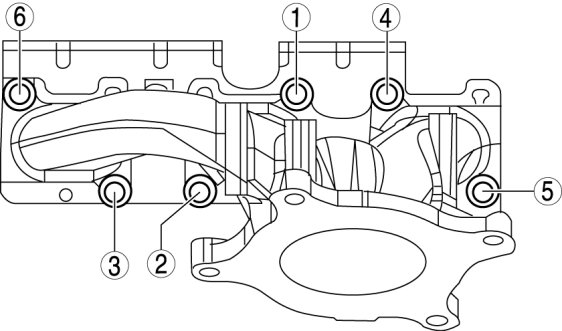

1. Tighten the exhaust manifold (RH) installation nuts in the order shown in the figure.






Tightening torque 22-28 Nm {2.3-2.8 kgf-m, 17-20 ft-lbf}

Exhaust Manifold (LH)

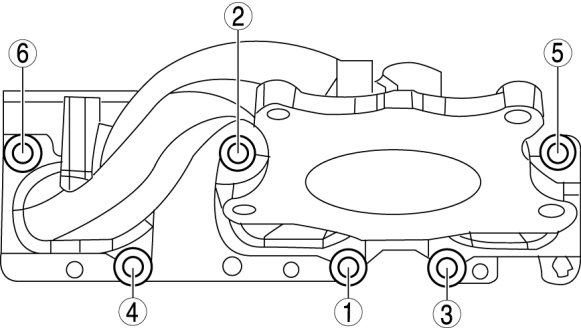

1. Tighten the exhaust manifold (RH) installation nuts in the order shown in the figure.






Tightening torque 22-28 Nm {2.3-2.8 kgf-m, 17-20 ft-lbf}
