Wheel Bearing




DRIVELINE/AXLE TECHNICAL DATA

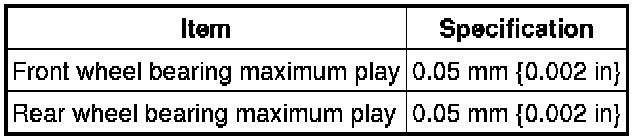

Front and Rear Axle

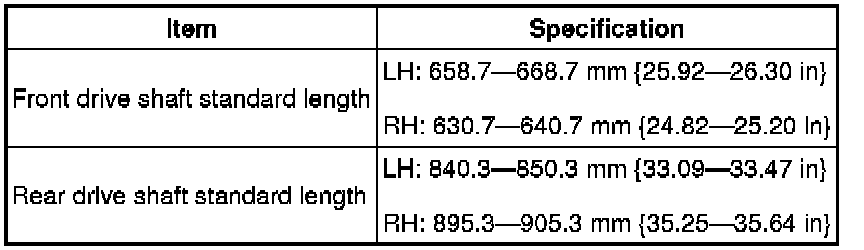

Drive Shaft

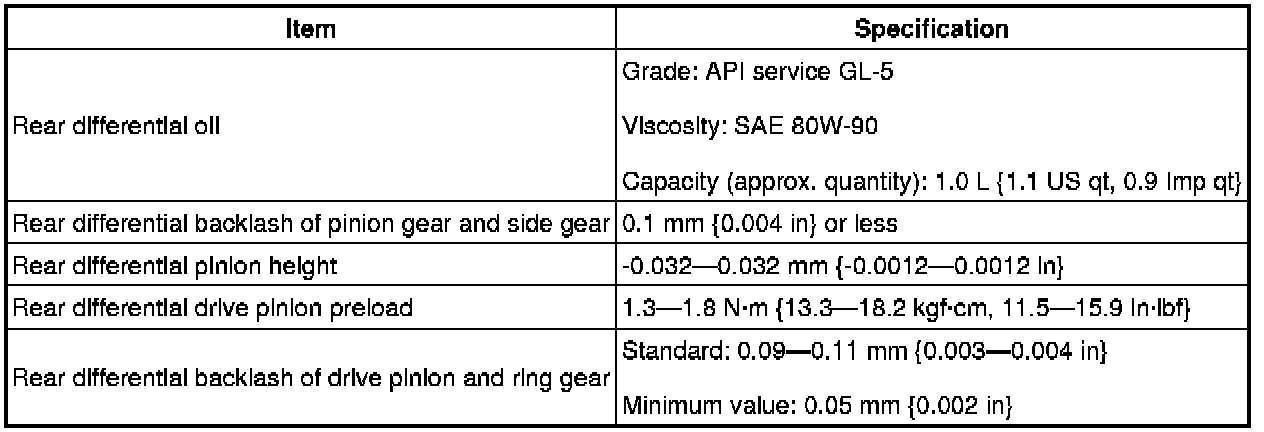

Differential

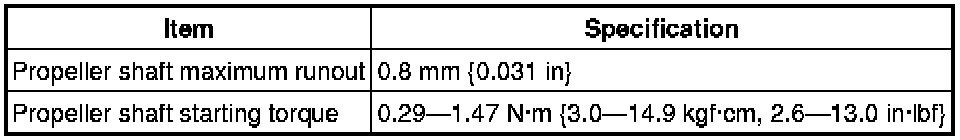

Propeller Shaft

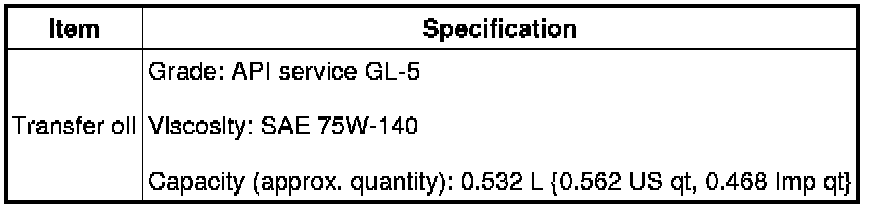

Transfer
