No.1 Unable to Communicate With Generic Electronic Module (GEM) - Power Window System (Exterior Open Function)




No.1 UNABLE TO COMMUNICATE WITH GENERIC ELECTRONIC MODULE (GEM) [POWER WINDOW SYSTEM (EXTERIOR OPEN FUNCTION)]

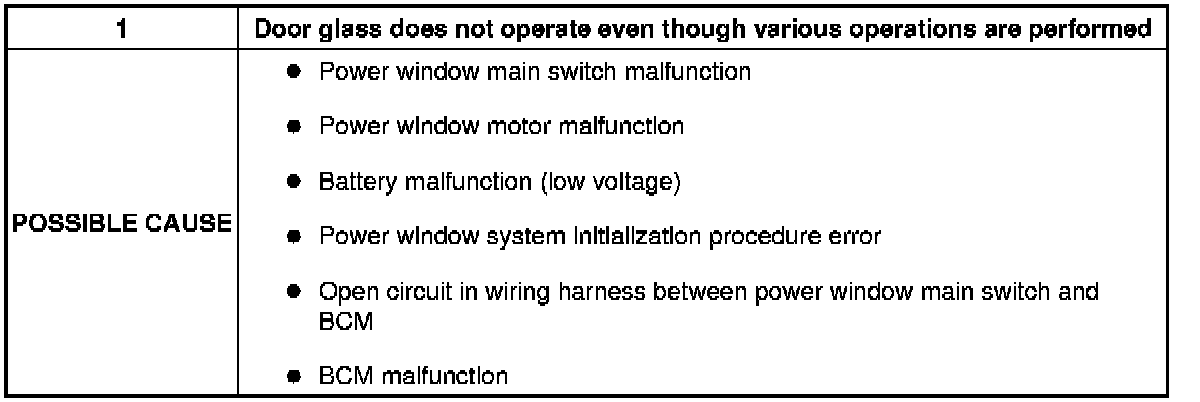

Possible Cause:

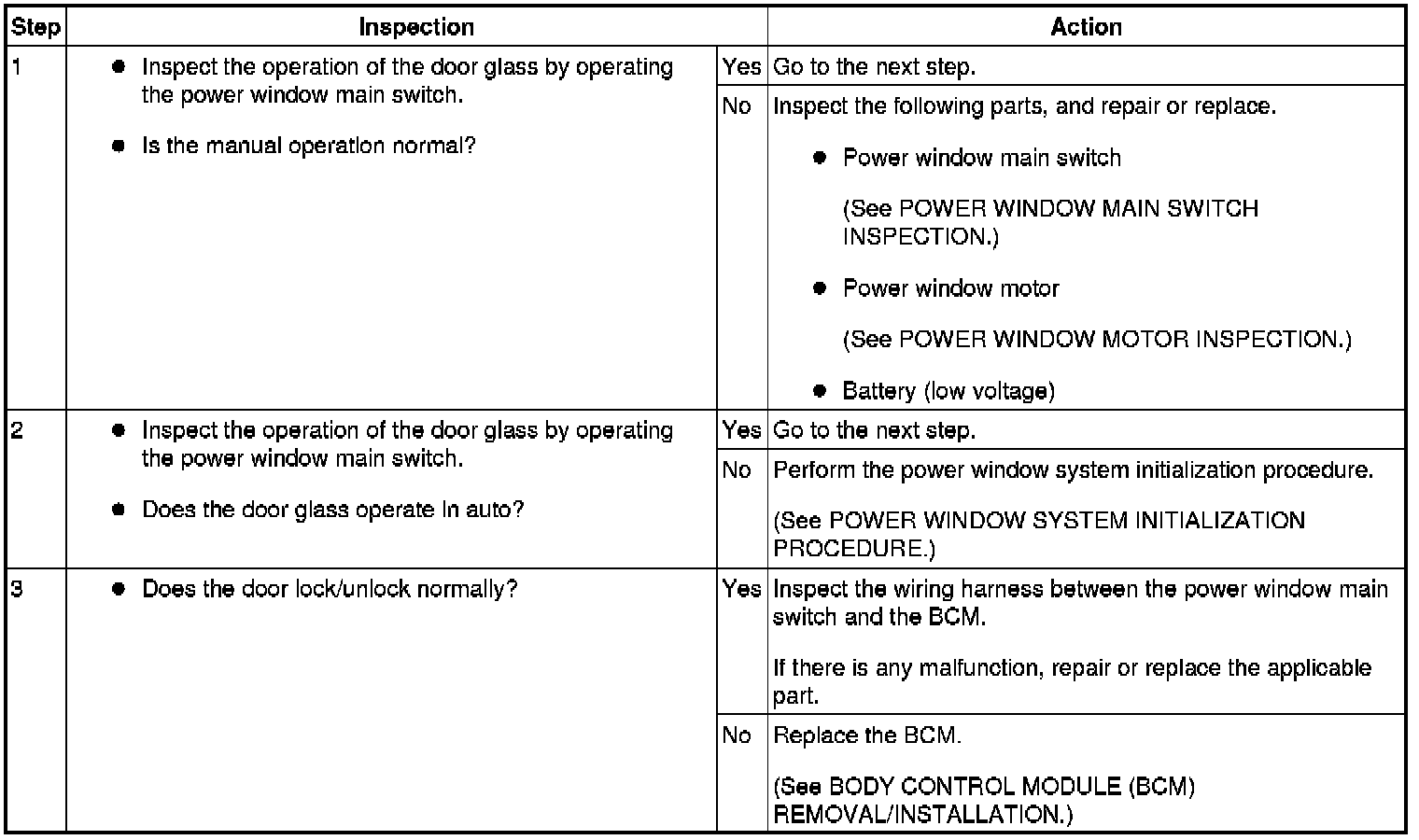

Diagnostic Procedure

Step 1-Step 3:
