Entertainment Systems: Service and Repair

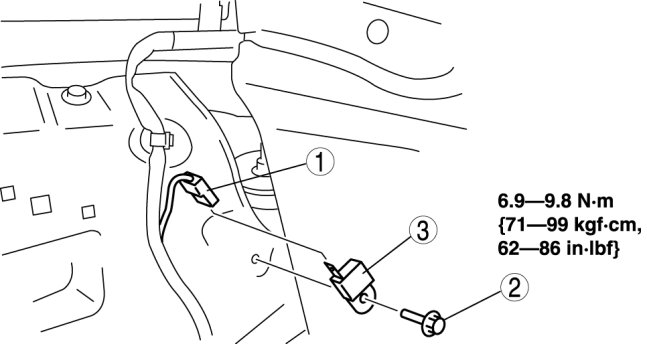

CONDENSER REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the following parts:
a. Console Console Removal/Installation

b. Quarter trim Quarter Trim Removal/Installation

c. Scuff plate Scuff Plate Removal/Installation

d. Tire house trim Tire House Trim Removal/Installation

e. Aeroboard Service and Repair

f. Front seat back bar garnish Seat Back Bar Garnish Removal/Installation

g. Back trim Back Trim Removal/Installation

h. Seat belt set plate Service and Repair

i. Seat back crossmember assembly Service and Repair

j. Rear side trim Rear Side Trim Removal/Installation

k. Rear package trim Service and Repair

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
