Strut Tower Brace: Service and Repair




FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION

1. For 6MT vehicles, perform the following procedures.
a. Disconnect the purge solenoid valve connector wiring harness from the bracket.

b. Remove the bracket from the air intake hose and move the purge solenoid valve component out of the way. Service and Repair

c. Remove the following parts as a single unit. Service and Repair

- Air intake hose
- Resonance chamber No. 2
- Resonance duct No. 1
- Resonance duct No. 2

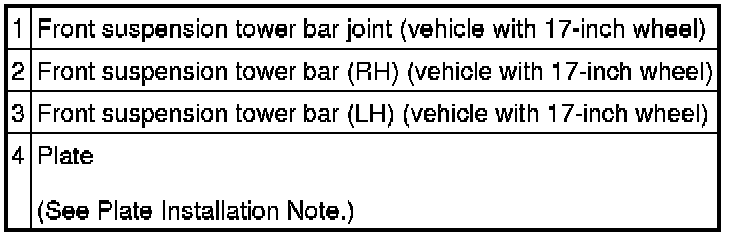

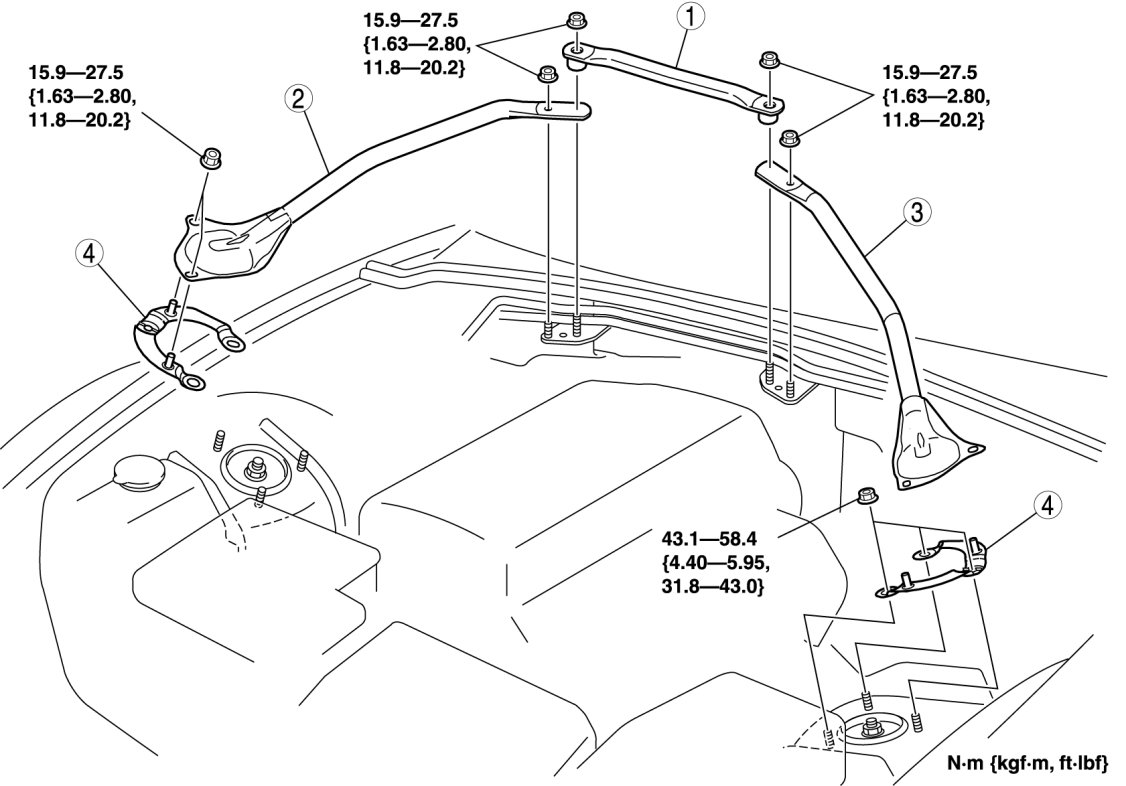

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

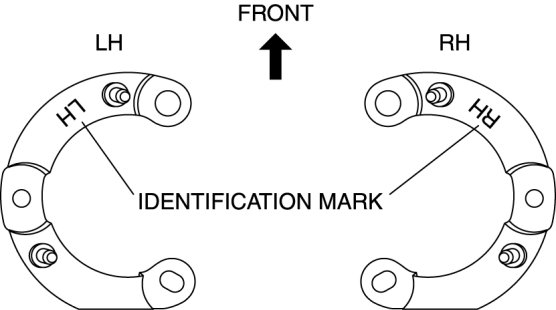

Plate Installation Note

1. Install the plates with the identification marks facing upward.
