Power Door Lock Switch: Testing and Inspection
DOOR LOCK SWITCH INSPECTION 1.
Disconnect the negative battery cable.
Removal and Replacement 2.
Remove the door trim. (See
Removal and Replacement 3.
Remove the door lock switch.
Service and Repair 4.

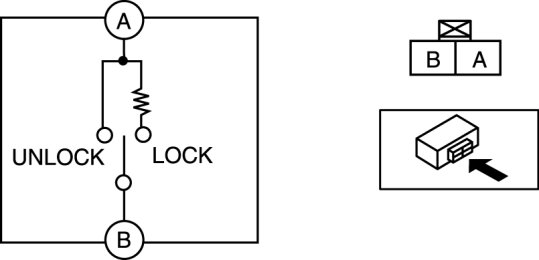

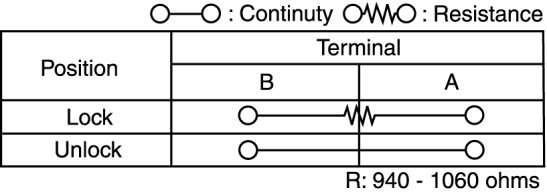

Inspect for continuity between the door lock switch terminals.
-
If not as specified, replace the door lock switch.
